Electrical functions and components on your 2022 Volvo S90 are protected by a number of fuses in order to protect the vehicle’s electrical system from damage by short circuiting or overloading. Fuses are located in the vehicle’s fuse boxes. These fuse boxes are located under the hood on the right side of the engine, under the dashboard on the passenger side, and on the passenger side of the trunk.

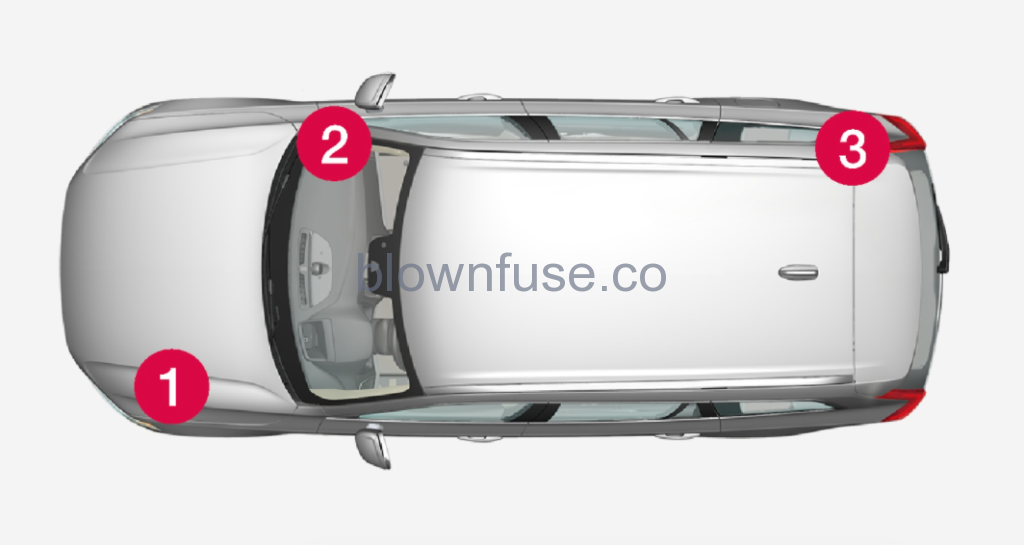

Fuse Box Locations
| 1 | Engine compartment fuse box (power distribution box) |
| 2 | Passenger fuse box (under the glove compartment) |
| 3 | Trunk/cargo compartment fuse box |
Passenger Compartment Fuse Box
Fuses under the glove compartment provide protection for e.g. electrical outlets, displays and door modules.
| Fuse Number | Description | Fuse AMP | Fuse Type |
 | 48 V battery control module | 10 | Micro |
 | – | – | MCase |
 | – | – | Micro |
 | Movement sensor | 5 | Micro |
 | – | – | Micro |
 | Instrument panel | 5 | Micro |
 | Center console keypad | 5 | Micro |
 | Sun sensor | 5 | Micro |
 | – | – | Micro |
 | Infotainment control module | 15 | Micro |
 | Steering wheel module | 5 | Micro |
 | Control module, start knob and parking brake | 5 | Micro |
 | Heated steering wheel | 15 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Rear lighting control module | 15 | Micro |
 | Climate system control module | 10 | Micro |
 | – | – | Micro |
 | OBD-II diagnostic port | 10 | Micro |
 | Center display | 5 | Micro |
 | Climate system blower module, front | 40 | MCase |
 | USB hub | 5 | Micro |
 | Instrument lightingPassenger compartment lightingRearview mirror auto-dimmingRain and light sensorsPower front seatsRear door control panelsClimate system blower moduleKeypad in tunnel console, rear seat footwell | 7.5 | Micro |
 | – | – | Micro |
 | Ceiling console | 20 | Micro |
 | Head-up display | 5 | Micro |
 | Passenger compartment lighting | 5 | Micro |
 | Wireless charging pad | 5 | Micro |
 | Overhead console display | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Fuse box trunk/cargo compartment | 10 | Micro |
 | Control module for Internet-connected vehicleVolvo On Call control module | 5 | Micro |
 | – | – | Micro |
 | Infotainment control module (amplifier) | 40 | MCase |
 | – | – | MCase |
 | Antenna module (TCAM) | 5 | Micro |
 | Seat comfort control module, front | 5 | Micro |
 | – | – | Micro |
 | Sun curtain control module, rear | 15 | Micro |
 | Fuel pump control module | 15 | Micro |
 | 48 V converterEngine start module | 5 | Micro |
 | Driver support functions control module | 5 | Micro |
 | Driver’s seat heating | 15 | Micro |
 | Front passenger’s seat heating | 15 | Micro |
 | Coolant pump | 7.5 | Micro |
 | – | – | Micro |
 | – | 20– | Micro |
 | Active suspension module | 20 | Micro |
 | Opening trunk/tailgate with foot movement | 5 | Micro |
 | – | – | Micro |
 | – | – | MCase |
 | – | – | Micro |
 | – | 20– | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Circuit breaker infotainment | 15 | Micro |
Engine Compartment Fuse Box
The fuses in the engine compartment help protect electrical components such as engine and brake functions.
| Fuse Number | Description | Fuse AMP | Fuse Type |
| – | – | Micro |
| – | – | Micro |
| Turbo charge pressure moduleHeated oxygen sensor group | 15 | Micro |
| Spark plug/ignition coils (gasoline)Exhaust sensor group, diesel particulates/nitrous oxides (diesel) | 15 | Micro |
| Engine oil pump solenoidHeated oxygen sensor groupAir conditioning compressor solenoid | 15 | Micro |
| Oil level and temperature sensorsGlow plug control module (diesel)Engine component group 1 (Components related to engine function, including turbo/compressor. Content depends on engine variant). | 7.5 | Micro |
| Engine control moduleThrottle control moduleEngine component group 2 (Components related to engine function, including turbo/compressor. Content depends on engine variant). | 20 | Micro |
| Engine control module | 5 | Micro |
| Fuel evaporation pump (EVAP) | 10 | Micro |
| Glow plug control module (diesel)Engine component group 3 (Components related to engine function, including turbo/compressor and cooling/temperature regulation of driveline. Content depends on engine variant.) | 10 | Micro |
| Spoiler damper control moduleCooler damper control moduleRelay windings power pulse (PowerPulse) (diesel)Coolant changeover valveFuel leakage control pump | 5 | Micro |
| Coolant pump | 15 | Micro |
| Engine control module | 20 | Micro |
| Starter motor | 40 | MCase |
| Starter motor | Shunt | MCase |
| – | – | MCase |
| Clutch actuator 1 | 25 | MCase |
| Calculation module | 5 | Micro |
| Extra fuse | 7.5 | Micro |
| Extra fuse | 10 | Micro |
| Extra fuse | 15 | Micro |
| Transmission control module | 20 | Micro |
| USB port in tunnel console, rear | 7.5 | Micro |
| 12 V outlet tunnel console, front | 15 | Micro |
| 12 V outlet in tunnel console, rear | 15 | Micro |
| 12 V outlet in trunk/cargo compartment | 15 | Micro |
| – | – | Micro |
| Headlight, left | 15 | Micro |
| Headlight, right | 15 | Micro |
| Transmission control module | 20 | Micro |
| – | – | MCase |
| – | – | MCase |
| Headlight washers | 25 | MCase |
| Washer fluid pump, front | 25 | MCase |
| Transmission control moduleElectric gear selector | 15 | Micro |
| Horn (honk) | 20 | Micro |
| Alarm siren | 5 | Micro |
| Brake system control module (valves, parking brake) | 40 | MCase |
| Brake assist control module (MCase) | 30 | ||
| Wipers | 30 | MCase |
| – | – | MCase |
| – | – | MCase |
| – | – | MCase |
| Brake system control module (ABS pump) | 40 | MCase |
| Clutch actuator 2 | – | MCase |
| – | – | MCase |
| Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module | 5 | Micro |
| Radar, front | 5 | Micro |
| Headlight, right | 15 | Micro |
| – | – | Micro |
| Transmission control module | 10 | Micro |
| Battery connection control module | 5 | Micro |
| Collision module (SRS)Occupant weight sensor (OWS) | 5 | Micro |
| Headlight, left | 15 | Micro |
| Accelerator pedal sensor | 5 | Micro |
Trunk Fuse Box
The fuses in the trunk protect electrical components such as the power seats, airbags and seat belt tensioners.
| Fuse Number | Description | Fuse AMP | Fuse Type |
| Heated rear window | 30 | MCase |
| Central electrical module | 40 | MCase |
| Compressor for pneumatic suspension | 40 | MCase |
| Lock motor for rear seat backrest, right side | 15 | MCase |
| – | – | MCase |
| Lock motor for rear seat backrest, left side | 15 | MCase |
| Door module, right side, rear | 20 | MCase |
| – | – | MCase |
| Power trunk release | 25 | MCase |
| Power front passenger seatDoor module, right side, front | 20 | MCase |
| – | – | MCase |
| Seat belt tensioner, right | 40 | MCase |
| Internal relay windings | 5 | Micro |
| – | – | Micro |
| Door module, left side, rear | 20 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | MCase |
| Accessory module | 40 | ||
| Power driver seatDoor module, left side, front | 20 | MCase |
| Seat belt tensioner, left | 40 | MCase |
| Park Assist Camera | 5 | Micro |
| Rear lighting (backup) | 10 | Micro |
| – | – | Micro |
| Position prepared for Special Edition vehicles | 5 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| Heated rear seat, left | 15 | Micro |
| – | – | Micro |
| Blind Spot Information (BLIS) | 5 | Micro |
| – | – | Micro |
| Seat belt tensioner, left | 5 | Micro |
| Actuator, exhaust system (gasoline) | 5 | Micro |
| – | – | Micro |
| All Wheel Drive (AWD) control module | 15 | Micro |
| Heated rear seat, right | 15 | Micro |
| – | – | MCase |
Fuse Replacement Precautions
An overloaded fuse needs to be replaced to restore function to the electrical component it protects.
Locate the correct fuse in the fuse diagrams for the different fuse boxes.
Details for mileage, safety, and performance.
Pull out the fuse and examine it from the side to determine if the curved metal wire in the fuse is intact.
If the wire is broken, replace the fuse with a new fuse of the same color and amperage.
Note
Some fuse boxes contain special pliers to make it easier to grip the fuse.
Warning
Never use a foreign object or a fuse with a higher amperage than that specified to replace a fuse. This could cause significant damage to the electrical system and possibly lead to a fire.
Warning
Contact an authorized Volvo workshop for assistance replacing fuses not listed in the Owner’s Manual. If fuse replacement is performed incorrectly, significant damage can be caused to the electrical system.
