Electrical functions and components on your 2022 Volvo S60 Recharge are protected by a number of fuses in order to protect the vehicle’s electrical system from damage by short circuiting or overloading. The 2022 Volvo S60 non-plug-in Hybrid fuse diagram can be found here.
A number of electrical components in Twin Engine Plug-in Hybrid vehicles use high-voltage current and can be extremely dangerous if handled incorrectly. Orange wiring may only be handled by qualified personnel.

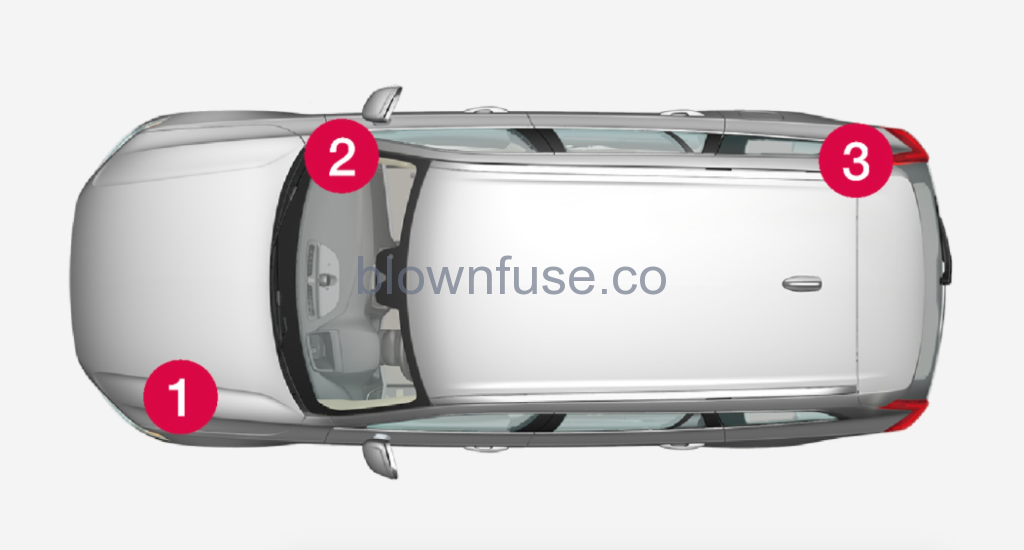

Location of Fuseboxes
| 1 | Engine compartment |
| 2 | Under the glove compartment |
| 3 | Trunk/cargo compartment |
Passenger Fuse Box
Fuses under the glove compartment on your S60 Recharge provide protection for e.g. electrical outlets, displays and door modules.
| Fuse Number | Function | Fuse AMP | Fuse Type |
 | 48 V battery control module | 10 | Micro |
 | – | – | MCase |
 | – | – | Micro |
 | Movement sensor | 5 | Micro |
 | – | – | Micro |
 | Instrument panel | 5 | Micro |
 | Center console keypad | 5 | Micro |
 | Sun sensor | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Steering wheel module | 5 | Micro |
 | Control module, start knob and parking brake | 5 | Micro |
 | Heated steering wheel | 15 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Climate system control module | 10 | Micro |
 | – | – | Micro |
 | OBD-II diagnostic port | 10 | Micro |
 | Center display | 5 | Micro |
 | Climate system blower module, front | 40 | MCase |
 | USB hub | 5 | Micro |
 | Instrument lightingPassenger compartment lightingRearview mirror auto-dimmingRain and light sensorsPower front seatsRear door control panelsClimate system blower moduleKeypad in tunnel console, rear seat footwell | 7.5 | Micro |
 | Driver support functions control module | 5 | Micro |
 | Overhead console | 20 | Micro |
 | Head-up display | 5 | Micro |
 | Passenger compartment lighting | 5 | Micro |
 | Wireless charging pad | 5 | Micro |
 | Overhead console display | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Electric motor converter, rear | 10 | Micro |
 | Control module for Internet-connected vehicleVolvo On Call control module | 5 | Micro |
 | – | – | Micro |
 | Infotainment control module (amplifier) | 40 | MCase |
 | – | – | MCase |
 | Multi-band antenna | 5 | Micro |
 | Seat comfort control module, front | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Fuel pump control module | 15 | Micro |
 | Relay windings for transmission oil pump | 5 | Micro |
 | Intellisafe control module | 5 | Micro |
 | Driver’s seat heating | 15 | Micro |
 | Front passenger’s seat heating | 15 | Micro |
 | Coolant pump | 7.5 | Micro |
 | – | – | Micro |
 | Power driver’s seat | 20 | Micro |
 | Active suspension module | 20 | Micro |
 | Opening trunk/tailgate with foot movement | 5 | Micro |
 | Infotainment module | 10 | Micro |
 | – | – | MCase |
 | – | – | Micro |
 | Power front passenger seat | 20 | Micro |
 | – | – | Micro |
 | TV (certain markets only) | 5 | Micro |
 | Primary fuse for fuses 52, 53, 57 and 58 (Infotainment group) | 15 | Micro |
Power Distribution Box Fuse Diagram (Engine)
The fuses in the engine compartment help protect electrical components such as engine and brake functions. The fuse box under the hood on your 2022 Volvo S60 Recharge is also known as the power distribution box. This fuse box can be found on the right side of the engine.
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| Transmission actuator control module | 5 | Micro |
| Coolant heating control module | 5 | Micro |
| Air conditioning | 5 | Micro |
| Hybrid battery control moduleHigh-voltage converter high-voltage generator/starter motor | 5 | Micro |
| – | – | Micro |
| – | – | Micro |
| Hybrid battery control moduleHigh-voltage converter high-voltage generator/starter motor | 10 | Micro |
| Charge module | 5 | Micro |
| Shut-off valve, hybrid battery coolingHybrid battery coolant pump | 15 | Micro |
| Electric drive system coolant pump | 15 | Micro |
| Hybrid components cooling fan | 25 | MCase |
| – | – | MCase |
| – | – | MCase |
| – | – | MCase |
| Calculation module | 5 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| USB port in tunnel console, rear | 7.5 | Micro |
| 12 V outlet tunnel console, front | 15 | Micro |
| – | – | Micro |
| 12 V outlet in trunk/cargo compartment | 15 | Micro |
| – | – | Micro |
| Headlight, left | 15 | Micro |
| Headlight, right | 15 | Micro |
| – | – | Micro |
| – | – | MCase |
| – | – | MCase |
| Headlight washers | 25 | MCase |
| Windshield washer | 25 | MCase |
| – | – | Micro |
| Horn (honk) | 20 | Micro |
| Alarm siren | 5 | Micro |
| Brake system control module (valves, parking brake) | 30 | MCase |
| Wipers | 30 | MCase |
| – | – | MCase |
| – | – | MCase |
| Parking heater | 20 | MCase |
| – | – | MCase |
| – | – | MCase |
| – | – | MCase |
| Fed when ignition is on: Engine control module, transmission components, electrical power steering, central electrical module | 5 | Micro |
| Exterior vehicle sound (certain markets) | 5 | Micro |
| Headlight, right | 15 | Micro |
| – | – | Micro |
| – | – | Micro |
| Radar, front | 5 | Micro |
| Collision module (SRS)Occupant weight sensor (OWS) | 5 | Micro |
| Headlight, left | 15 | Micro |
| Accelerator pedal sensor | 5 | Micro |
| Transmission control moduleGear selector control module | 15 | Micro |
| Engine control module | 5 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
 | – | – | Micro |
 | Engine control moduleThrottle control moduleCompressor actuator switch | 20 | Micro |
 | Engine component group 1 (Components related to engine function, including turbo/compressor. Content depends on engine variant). | 10 | Micro |
 | Engine component group 2 (Components related to engine function, including turbo. Content depends on engine variant.)Air conditioning changeover valve | 7.5 | Micro |
 | Spoiler damper control moduleCooler damper control moduleFuel leakage control pump | 5 | Micro |
 | – | – | Micro |
 | Heated oxygen sensor | 15 | Micro |
 | Engine oil pump solenoidHeated oxygen sensorsAir conditioning compressor solenoid | 15 | Micro |
 | – | – | Micro |
 | Engine control module | 20 | Micro |
 | Spark plug/ignition coils | 15 | Micro |
 | – | – | MCase |
 | – | – | MCase |
 | Transmission oil pump control module | 30 | MCase |
 | – | – | MCase |
 | Transmission actuator | 25 | MCase |
 | – | – | MCase |
 | – | – | MCase |
 | – | – | MCase |
Trunk Fuse Box Diagram
The fuses in the trunk protect electrical components such as the power seats, airbags and seat belt tensioners.
| Fuse Number | Function | Fuse AMP | Fuse Type |
| Heated rear window | 30 | MCase |
| Central electrical module | 40 | MCase |
| – | – | MCase |
| Lock motor for rear seat backrest, right side | 15 | MCase |
| – | – | MCase |
| Lock motor for rear seat backrest, left side | 15 | MCase |
| Door module, right side, rear | 20 | MCase |
| – | – | MCase |
| – | – | MCase |
| Door module, right side, front | 20 | MCase |
| Towbar control module | 40 | MCase |
| Seat belt tensioner, right | 40 | MCase |
| Internal relay windings | 5 | Micro |
| – | – | Micro |
| Door module, left side, rear | 20 | Micro |
| – | – | Micro |
| – | – | Micro |
| Towbar control module | 25 | MCase |
| Accessory module | 40 | ||
| Door module, left side, front | 20 | MCase |
| Seat belt tensioner, left | 40 | MCase |
| Park Assist Camera | 5 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| Feed when ignition is on | 10 | Micro |
| – | – | Micro |
| – | – | Micro |
| Heated rear seat, left | 15 | Micro |
| – | – | Micro |
| Blind Spot Information (BLIS) | 5 | Micro |
| – | – | Micro |
| Seat belt tensioner, right | 5 | Micro |
| Actuator, exhaust system (gasoline) | 5 | Micro |
| – | – | Micro |
| All Wheel Drive (AWD) control module | 15 | Micro |
| Heated rear seat, right | 15 | Micro |
| – | – | MCase |
Fuse Replacement Precautions
An overloaded fuse needs to be replaced to restore function to the electrical component it protects.
Locate the correct fuse in the fuse diagrams for the different fuse boxes.
Information on mileage, safety, and performance.
Pull out the fuse and examine it from the side to determine if the curved metal wire in the fuse is intact.
If the wire is broken, replace the fuse with a new fuse of the same color and amperage.
Note
Some fuse boxes contain special pliers to make it easier to grip the fuse.
Warning
Never use a foreign object or a fuse with a higher amperage than that specified to replace a fuse. This could cause significant damage to the electrical system and possibly lead to a fire.
Warning
Contact an authorized Volvo workshop for assistance replacing fuses not listed in the Owner’s Manual. If fuse replacement is performed incorrectly, significant damage can be caused to the electrical system.
