Your 2022 Volvo C40 Recharge Pure Electrical functions and components are protected by a number of fuses in order to protect the vehicle’s electrical system from damage by short circuiting or overloading. Fuses are located in the vehicle’s fuse boxes under the dashboard and under the hood on the drivers side.

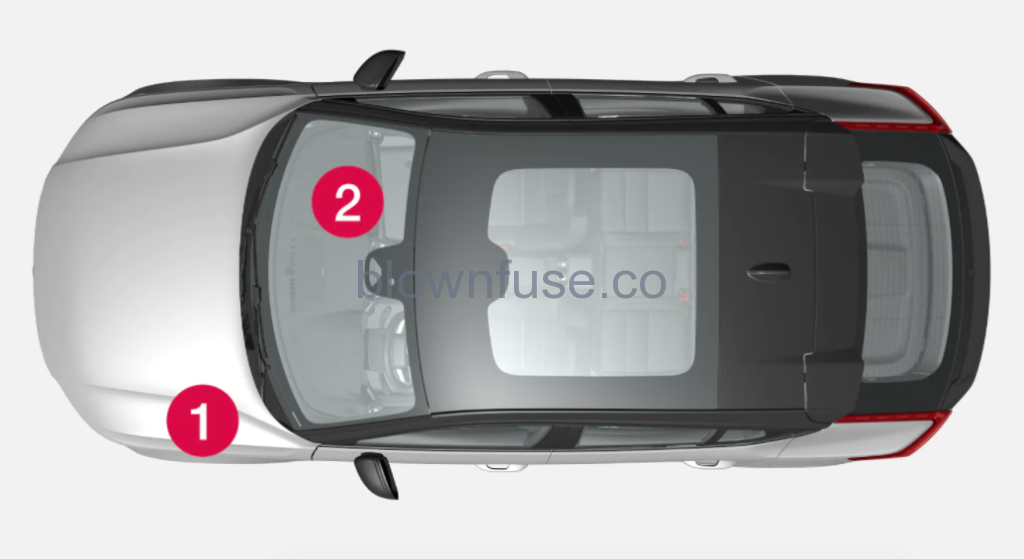

Location of Fuseboxes
| 1 | Under the hood. |
| 2 | Under the glove compartment. |
Fuses Under Glove Compartment
The fuses in the fuse box under the glove compartment on your C40 protect electrical components such as outlets, displays and door modules.
The location of the fuses is shown on the inside of the cover. Functions and components in the fuse table cover several different models and engine variants. Therefore, a described fuse may apply to fewer components than those in the table, or be missing completely, depending on how the vehicle is equipped.
| Fuse Number | Function | AMP | Fuse Type |
 | Infotainment control module (amplifier) | 40 | MCase (slotted) |
 | Electric Module A | 40 | MCase (slotted) |
 | Electric Module B | 40 | MCase (slotted) |
 | Climate system blower, front | 40 | MCase (slotted) |
 | Power tailgate | 25 | MCase |
 | Power seat, left | 20 | MCase |
 | Power seat, right | 20 | MCase |
 | – | – | MCase |
 | Door module, right side, rear | 20 | Micro |
 | Door module, left side, rear | 20 | Micro |
 | Door module, left side, front | 20 | Micro |
 | Rear lighting | 15 | Micro |
 | Door module, right side, front | 20 | Micro |
 | Seat heating, rear | 15 | Micro |
 | Safety module (ASDM)Converter, rear electric motors | 5 | Micro |
 | Calculation module | 5 | Micro |
 | Sun sensor | 5 | Micro |
 | – | – | Micro |
 | Climate system control module | 7.5 | Micro |
 | Interior movement sensors | 5 | Micro |
 | Instrument panel | 5 | Micro |
 | Center console keypad | 5 | Micro |
 | Steering wheel module | 5 | Micro |
 | Electronic shifting moduleParking brake | 5 | Micro |
 | Center display | 5 | Micro |
 | Control module for Internet-connected vehicleControl module for Connect | 5 | Micro |
 | Antenna module (TCAM) | 5 | Micro |
 | Relay coils | 5 | Micro |
 | Opening trunk/tailgate with foot movement | 5 | Micro |
 | Infotainment control module | 15 | Micro |
 | Diagnostics port | 10 | Micro |
 | – | – | Micro |
 | Folding head restraint, left side, rear | 15 | Micro |
 | Folding head restraint, right side, rear | 15 | Micro |
 | Heated rear window | 30 | MCase |
 | Seat belt tensioner, left side | 40 | MCase (slotted) |
 | Seat belt tensioner, right side | 40 | MCase (slotted) |
 | – | – | Micro |
 | – | – | Micro |
 | Coolant pump | 7.5 | Micro |
 | Heated steering wheel module | 15 | Micro |
 | – | – | Micro |
 | Headlight washers | 25 | MCase |
 | Windshield and tailgate window washers | 25 | MCase |
 | – | – | MCase |
 | – | – | MCase |
 | – | – | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Seat belt tensioners | 5 | Micro |
 | Blind Spot Information (BLIS) | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Radar control module, front | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
 | Prepared fuse, Special Edition vehicle | 5 | Micro |
 | Collision module (SRS) | 5 | Micro |
 | Rear wiper | 15 | Micro |
 | Overhead console indicator (SRS)Wake-up, electronic shifting mode360° Park Assist Camera | 5 | Micro |
 | Ceiling console, panoramic roof | 20 | Micro |
 | Passenger compartment lightingRearview mirror auto-dimmingRain and light sensorsControl panels in rear doors and cargo compartmentTransponder for road tax | 7.5 | Micro |
 | Wireless charging pad | 5 | Micro |
 | Front camera | 5 | Micro |
 | – | – | Micro |
 | USB port | 5 | Micro |
 | – | – | Micro |
 | – | – | Micro |
Fuses Under Hood
The fuses under the hood on your C40 help protect electrical components such as motor and brake functions. This fuse box is often referred to as the engine compartment fuse box, or power distribution box.
To access fuses under the hood, a number of panels around the storage compartment must be removed.
Special pliers are provided on the inside of the cover to assist in changing blown fuses.
There are also spaces for several extra fuses in the fusebox.
| Fuse Number | Function | Fuse Amp | Fuse Type |
| Dual USB ports in tunnel console, rear | 7.5 | Micro |
| 12 V outlet front | 15 | Micro |
| – | – | Micro |
| 12 V outlet in trunk/cargo compartment | 15 | Micro |
| Engine control module | 10 | Micro |
| Engine cooling valve group | 15 | Micro |
| Battery cooling valve | 5 | Micro |
| Spoiler damper control moduleCooler damper control module | 10 | Micro |
| – | – | Micro |
| – | – | Micro |
| – | – | Micro |
| Headlight, right | 20 | Micro |
| Headlight, left | 20 | Micro |
| Collision module (SRS)Occupant weight sensor (OWS) | 5 | Micro |
| Accelerator pedal sensor | 5 | Micro |
| Supplied when the vehicle’s electrical system is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module | 5 | Micro |
| Exterior sound module | 5 | Micro |
| – | – | Micro |
| Lighting, rear | 10 | Micro |
| Internal relay windings | 5 | Micro |
| – | – | Micro |
| Brake pedal sensor | 5 | Micro |
| Calculation module | 5 | Micro |
| High-voltage battery control module | 5 | Micro |
| – | – | Micro |
| Engine control module | 5 | Micro |
| Charge module | 15 | Micro |
| Converter, front electric motor | 5 | Micro |
| Horn (honk) | 20 | Micro |
| Alarm siren | 5 | Micro |
| Wipers | 30 | MCase |
| – | – | MCase (slotted) |
| – | – | MCase (slotted) |
| – | – | MCase (slotted) |
 | Brake control module | 30 | MCase |
 | – | – | MCase |
 | Headlights | 30 | MCase |
 | – | – | MCase |
| – | – | MCase |
| Towbar control module | 25 | MCase |
| Towbar control module | 40 | MCase (slotted) |
 | – | – | MCase (slotted) |
 | – | – | MCase |
 | – | – | MCase (slotted) |
 | Exterior heat exchanger | 5 | Micro |
 | A/C compressor control moduleHigh-voltage heater control moduleElectric expansion valve control moduleMonitoring unit | 5 | Micro |
 | High-voltage battery control moduleConverter, front and rear electric motor | 15 | Micro |
 | High-voltage battery coolant pump | 20 | Micro |
| Electric drive system coolant pump | 20 | Micro |
| – | – | MCase |
| – | – | MCase (slotted) |
| – | – | MCase (slotted) |
| – | – | Micro |
| Headlight, left | 20 | Micro |
| Headlight, right | 20 | Micro |
Only remove the panels around the storage compartment under the hood if this requirement is clearly stated in the instructions in the Owner’s Manual. Contact a workshop if you experience any problems or maintenance is required – an authorized Volvo workshop is recommended.
The location of the fuses is shown on the inside of the cover. Functions and components in the fuse table cover several different models and engine variants. Therefore, a described fuse may apply to fewer components than those in the table, or be missing completely, depending on how the vehicle is equipped.
If a position has several table values, this is due to variations in equipment level. If this is the case, follow the value on the replaced fuse. In the event of uncertainty, contact a workshop. An authorized Volvo workshop is recommended.
Replacing a Fuse
An overloaded fuse needs to be replaced to restore function to the electrical component it protects.
Locate the correct fuse in the fuse diagrams for the different fuse boxes.
Pull out the fuse and examine it from the side to determine if the curved metal wire in the fuse is intact.
If the wire is broken, replace the fuse with a new fuse of the same color and amperage.
Note
Some fuse boxes contain special pliers to make it easier to grip the fuse.
Warning
Never replace a fuse with a foreign object or a fuse with higher amperage. This could damage the electrical system and lead to fire.
Contact an authorized Volvo workshop for assistance replacing fuses not described in the Owner’s Manual.
Warning
Contact an authorized Volvo workshop for assistance replacing fuses not described in the Owner’s Manual.
