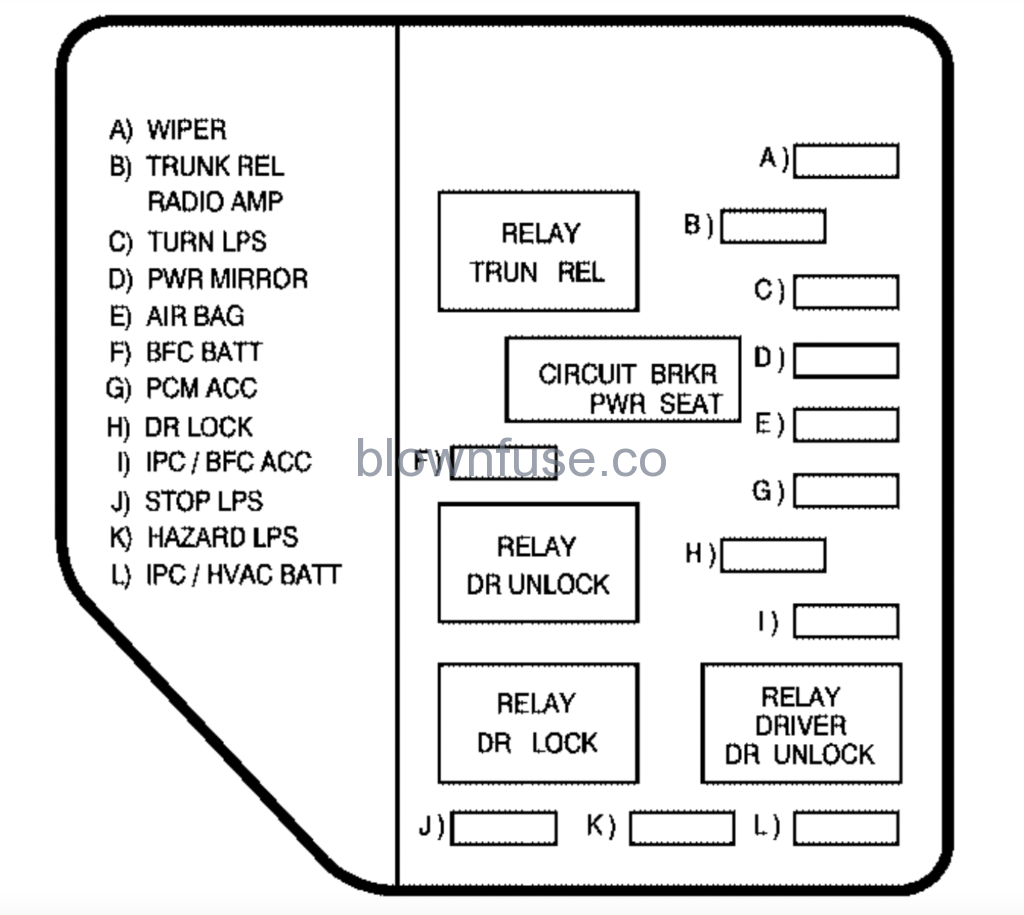

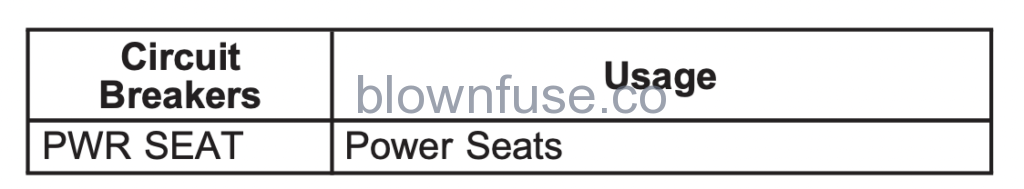

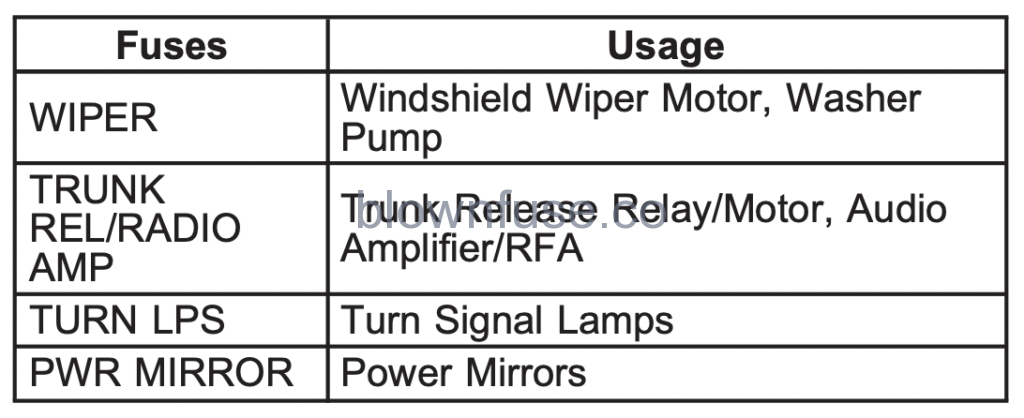

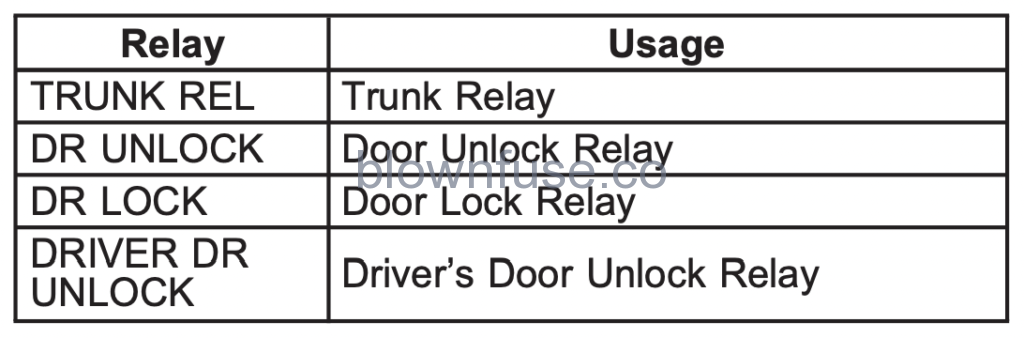

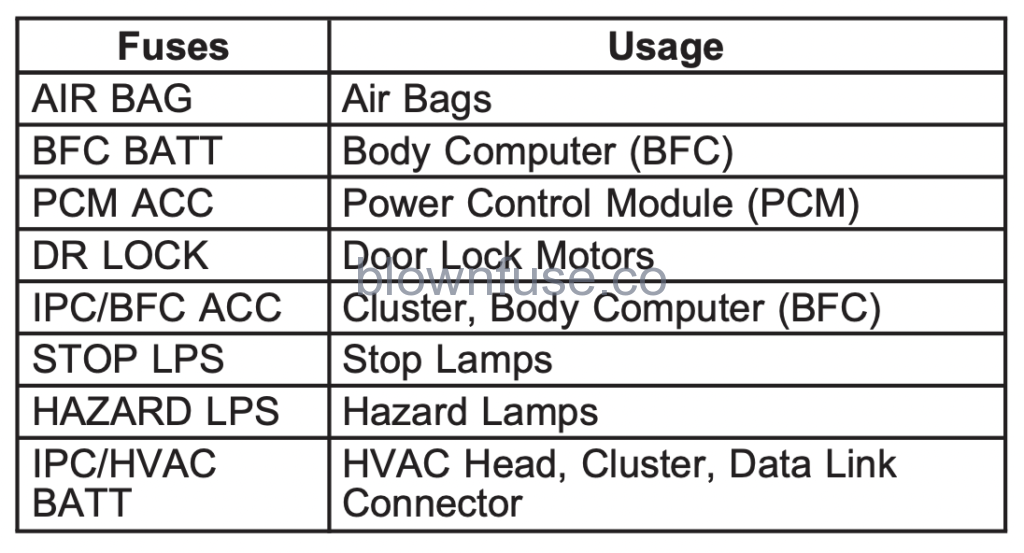

Instrument Panel Fuse Block (Driver’s Side)
Your vehicle may not be equipped with all the fuses and
features listed.

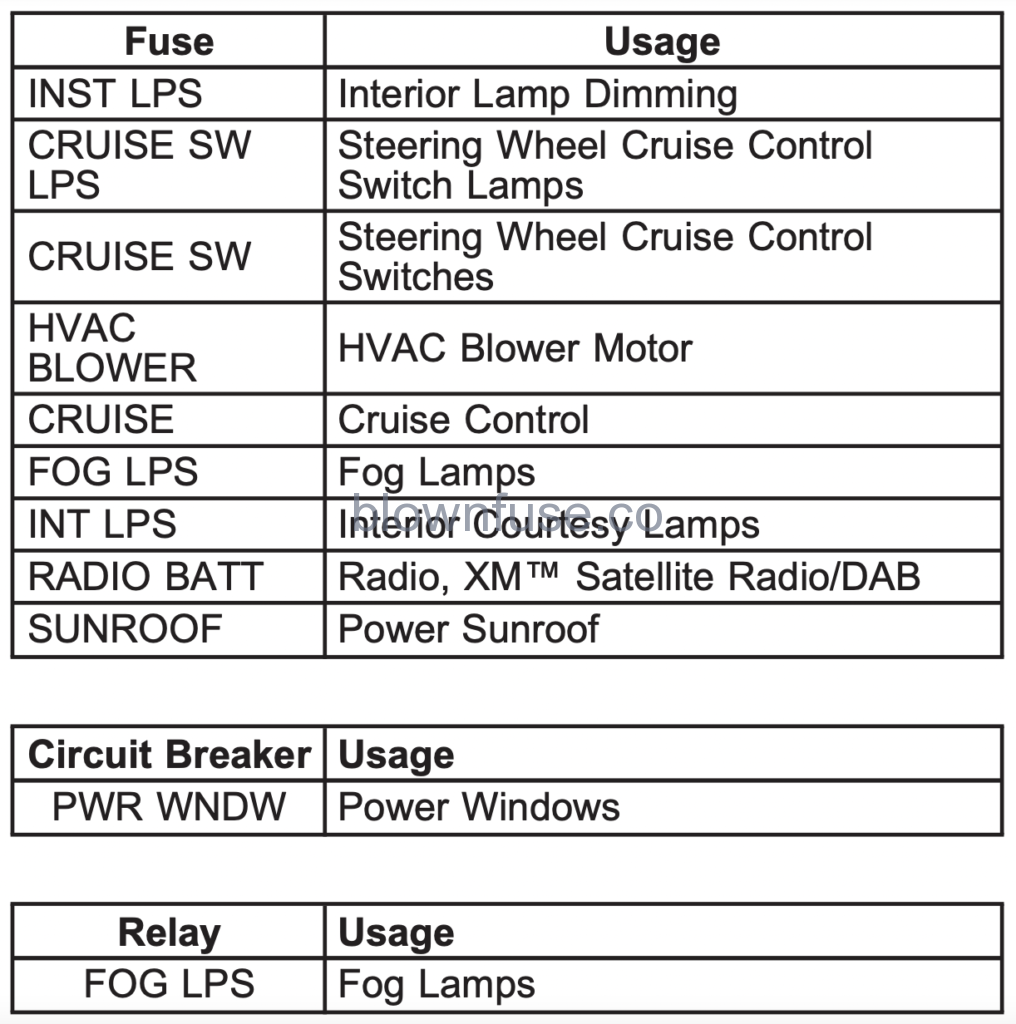

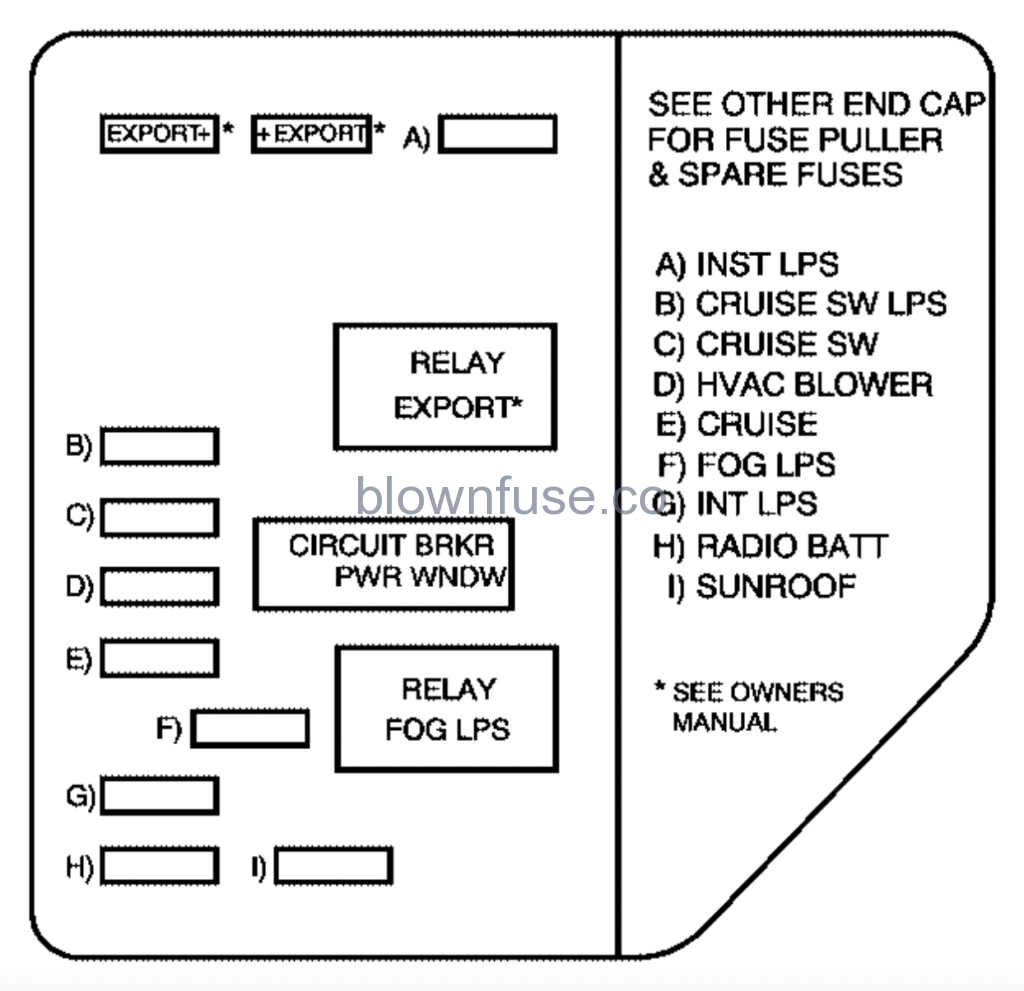

Instrument Panel Fuse Block (Passenger’s Side)

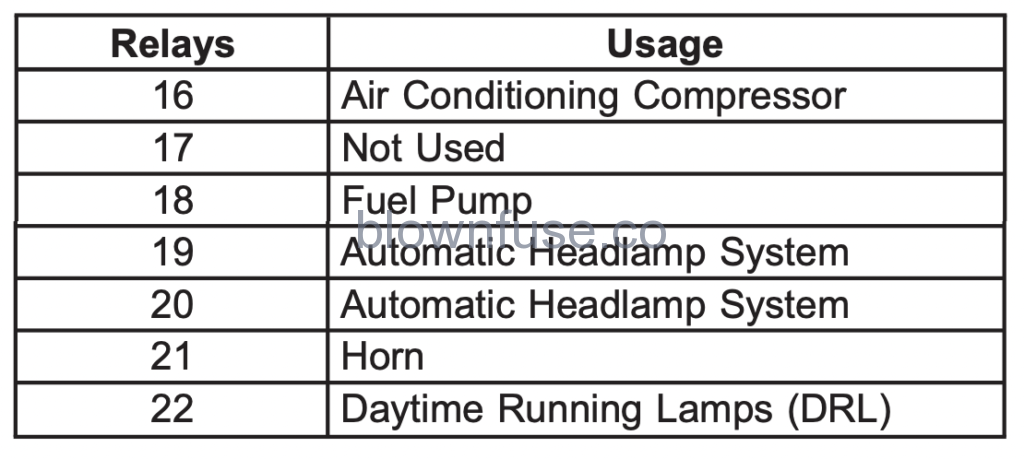

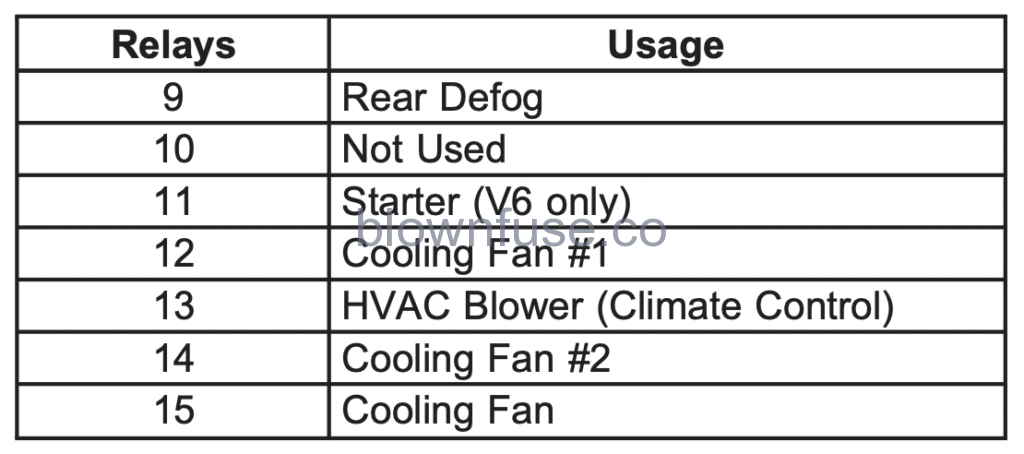

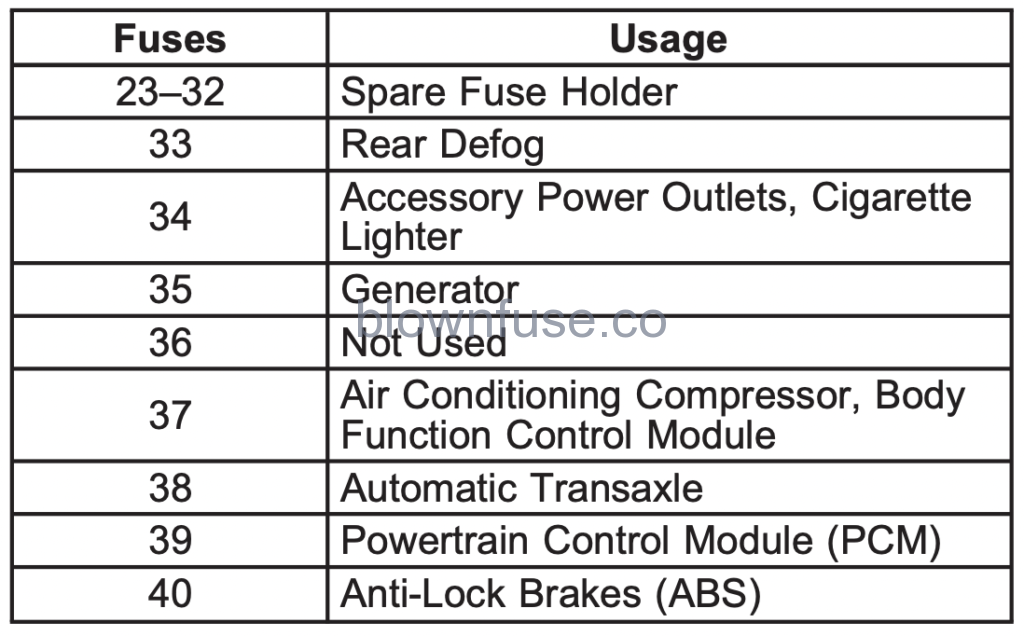

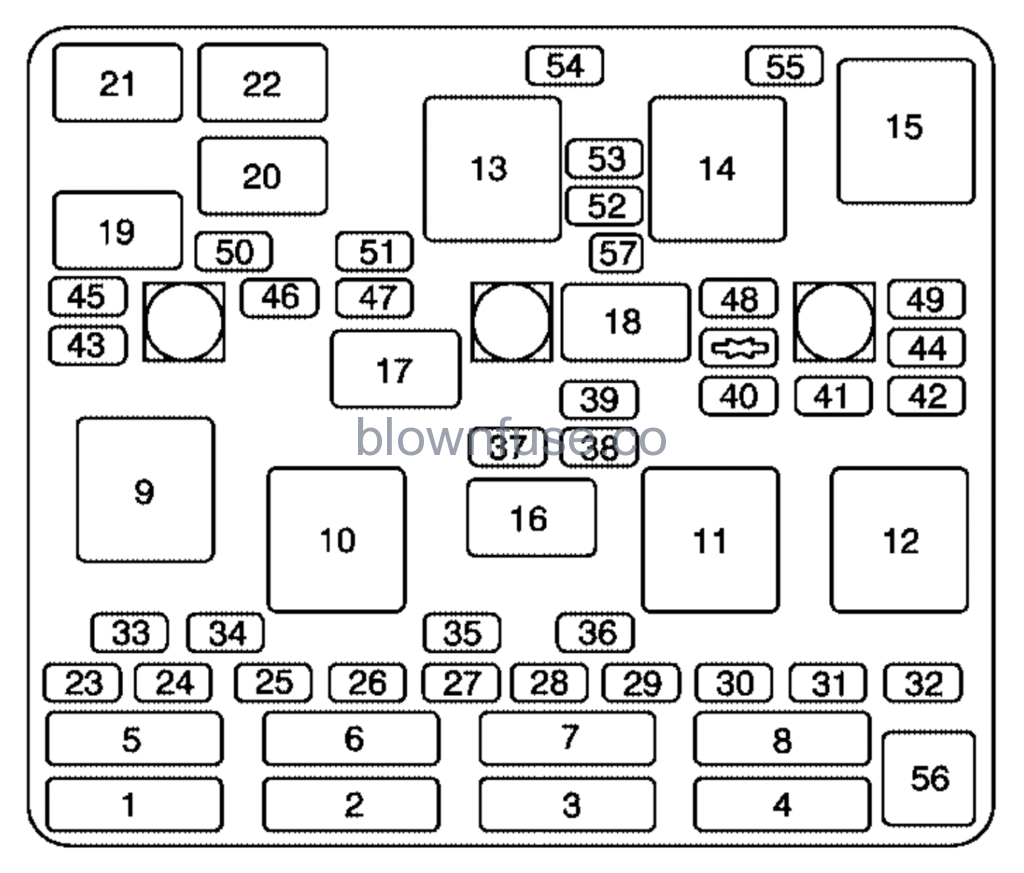

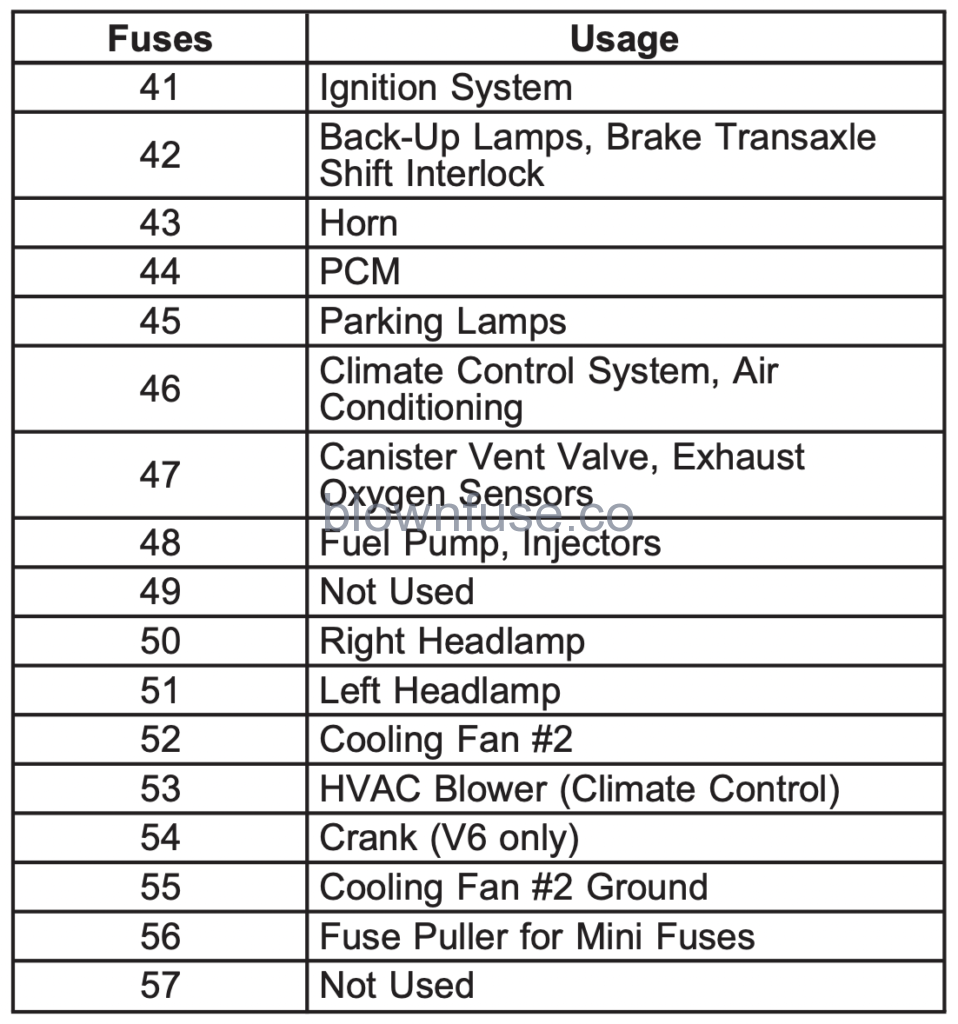

Engine Compartment Fuse Block (Power Distribution Box)
Your vehicle may not be equipped with all the fuses and features listed.The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.
