2021 Ford Transit Connect Fuse Box Diagram

Engine Fuse Box Location

The fuse box is in the engine compartment.

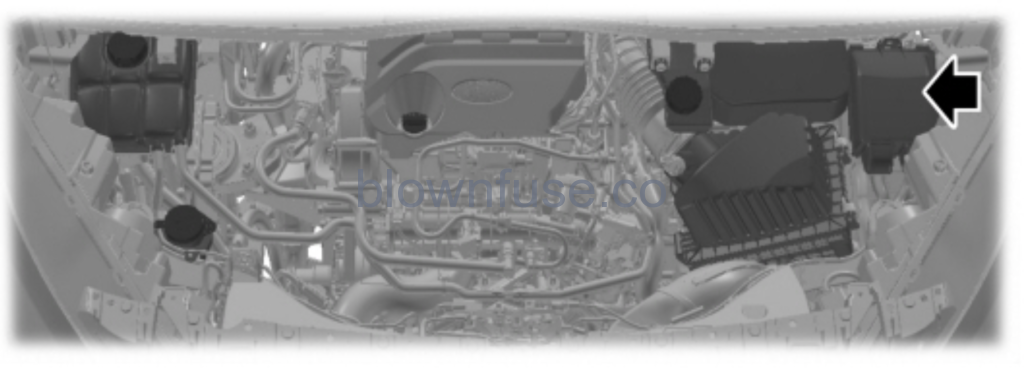

2021 Ford Transit Connect Engine Fuse Box Location

Engine Fuse Box Diagram

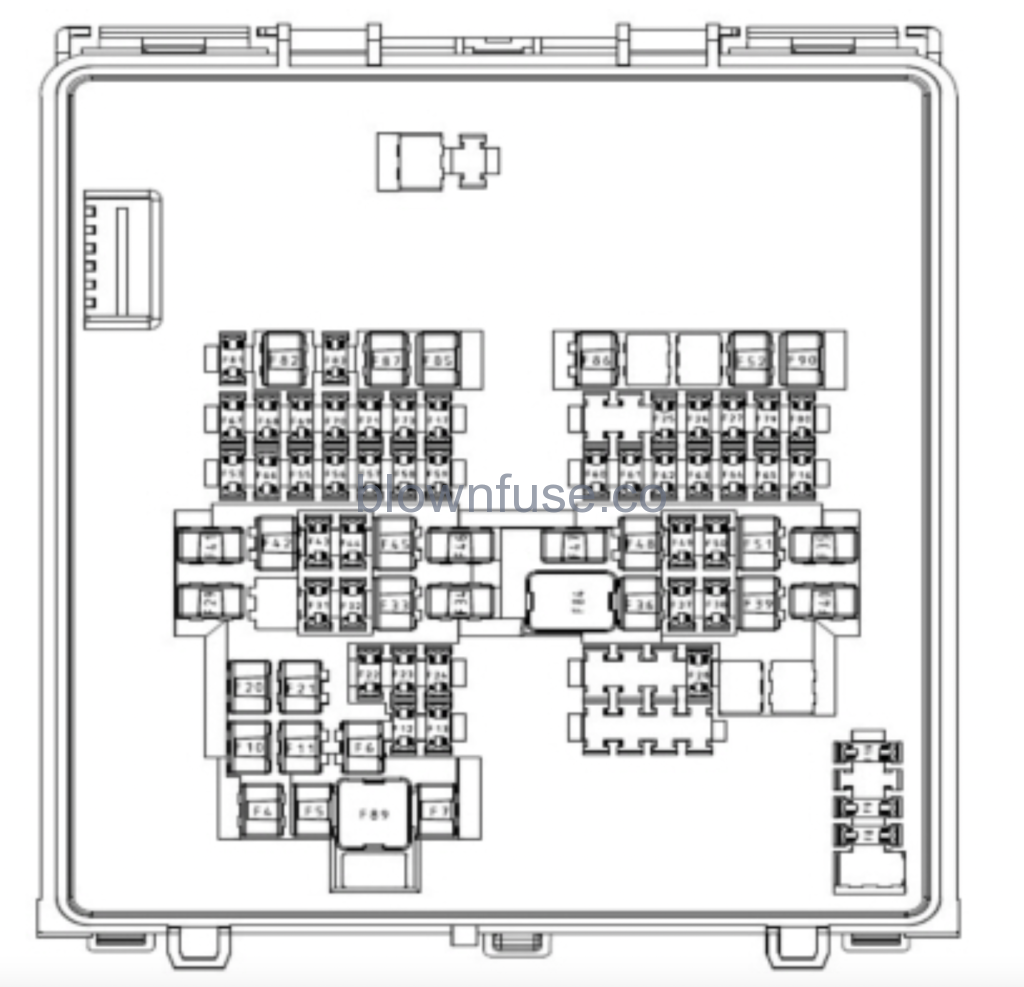

2021 Ford Transit Connect Engine Fuse Diagram
Fuse Location  Fuse Rating  Protected Component
4  20 A  Cooling fan.
25 A  Water-in-fuel sensor – diesel.
6  15 A  Windshield wipers.
7  15 A  Windshield wipers.
8  15 A  Rear window washer pump.
9  10 A  Rear cargo door unlock.   Liftgate unlock.
10  20 A  Rear floor console auxiliary power point.
11  20 A  Floor console auxiliary power point.
12  5 A  Rain sensor.
13  20 A  Rear window wiper.
16  20 A  Sun shade.
17  15 A  Steering column lock.
19  10 A  Left-hand door unlock.
20  20 A  Auxiliary power point.
21  20 A  Rear auxiliary power points.
22  5 A  USB port.
25  20 A  Dosing control unit – diesel.
26  20 A  Dosing control unit – diesel.
27  15 A  Dosing control unit – diesel.
28  15 A  Transmission control module – diesel.
29  50 A  Glow plugs – diesel.
31  20 A  Right-hand low beam.
32  10 A  Stoplamp switch.
33  30 A  Driver power seat.
34  40 A  Direct current/alternating current inverter.
35  50 A  Glow plugs – diesel.
37  10 A  Modified vehicle connection.
38  10 A  Data link connector.
39  20 A  Fuel-operated parking heater.
40  40 A  Rear blower motor.
41  60 A  Anti-lock brake system.   Electronic stability control.
42  40 A  Modified vehicle connection.
43  15 A  Status lamp – taxi.
44  5 A  Headlamps.
45  30 A  Right-hand rear door module.
46  40 A  Body control module.
47  40 A  Trailer tow module.
48  20 A  Heated seats.
49  20 A  Left-hand low beam.
50  5 A  Sun shade.
51  30 A  Anti-lock brake system.   Electronic stability control.
52  40 A  Right-hand heated windshield element.
53  10 A  Air conditioning clutch.
55  5 A  Transmission control module.
56  5 A  Anti-lock brake system.   Electronic stability control.
57  10 A  Modified vehicle connection.
58  10 A  Powertrain control module.
60  20 A  Modified vehicle connection.
61  15 A  Blind spot information system.   Front parking aid camera.   Rear view camera.
62  20 A  Body control module.
63  10 A  Modified vehicle connection.
64  5 A  Headlamp leveling.
65  5 A  Electronic power assist steering.
66  5 A  Dosing control unit – diesel.   Glow plugs – diesel.   Powetrain control module – diesel.
67  20 A  Powertrain control module.
68  20 A  Powertrain control module.
69  15 A  Powertrain control module.
70  20 A  Powertrain control module.
73  5 A  Mass air flow and intake air temperature sensor.
79  10 A  Heated exterior mirrors.
80  5 A  Modified vehicle connection.
81  20 A  Horn.
82  40 A  Left-hand heated windshield element.
83  5 A  Windshield heated washer jets.
84  60 A  Cooling fan.
85  30 A  Fuel pump.
86  30 A  Starter motor.
87  60 A  Glow plug module – diesel.
89  40 A  Blower motor.
90  25 A  Heated rear window.

Passenger Fuse Box Location

The fuse box is below the glove box.

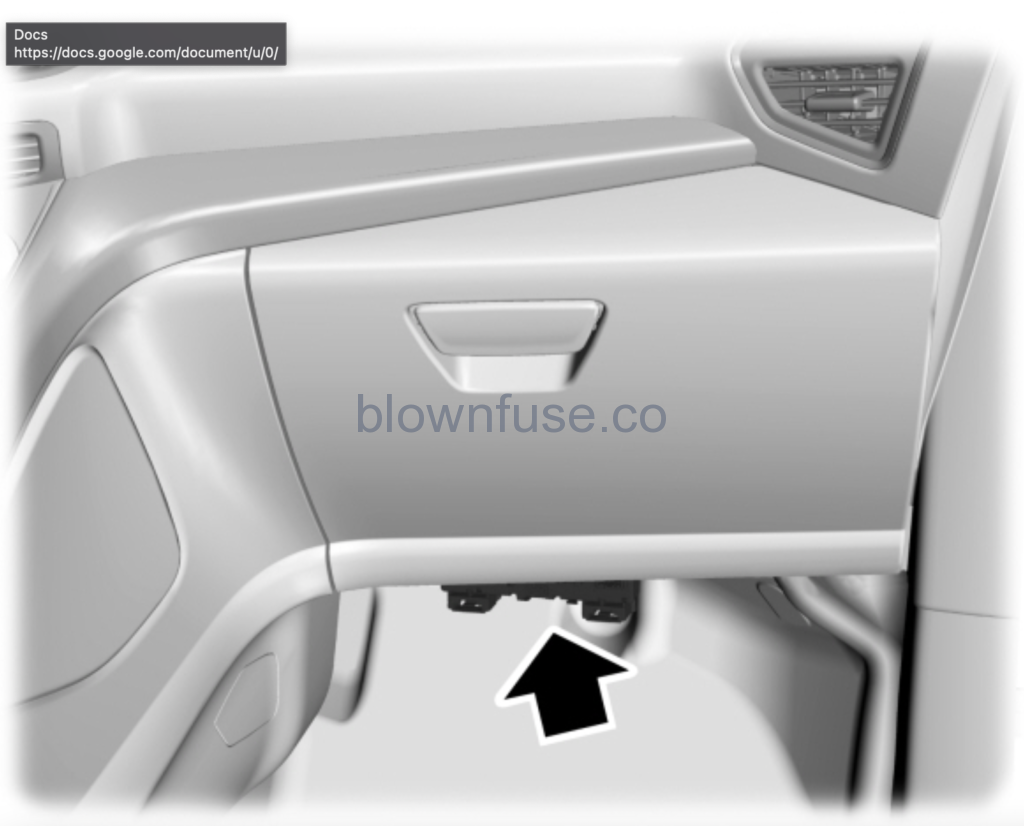

2021 Ford Transit Connect Passenger Fuse Box Location

Passenger Fuse Box Diagram

2021 Ford Transit Connect Passenger Fuse Box Diagram
Fuse Location  Fuse Rating  Protected Component
1  5 A  Restraints control module.
2  5 A  In-vehicle temperature and humidity sensor.   Rear blower motor.
3  10 A  Parking assist control module.
4  10 A  Ignition switch.   Push button ignition switch.
5  20 A  Central locking system.
6  10 A  Direct current inverter.   Driver door lock.   Power exterior mirror switch.
7  30 A  Driver door control.
9  5 A  Auto-dimming interior mirror.   Front parking aid camera.   Passenger airbag deactivation indicator.
10  10 A  Restraints control module.
11  5 A  Telematics control unit module.
12  5 A  Anti-theft alarm.
13  15 A  Unlock.
14  30 A  Passenger door control.
15  10 A  Battery energy control module.
17  15 A  Voice control.   Information and entertainment display.   Compact disc player.
18  7.5 A  Wireless accessory charging module.
19  7.5 A  Battery back-up sounder.
20  10 A  Backup alarm.
21  7.5 A  Climate control.
22  7.5 A  Data link connector.   Instrument cluster.
23  20 A  Audio unit.
25  30 A  Power windows.

Changing a Fuse

General Information

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse.Passenger Compartment Fuse Box

  1. Fold back the carpet under the glove compartment.
  2. Carefully remove the cover.

Fuse TypesMissing Image

AMicro 2.
BMicro 3.
CMaxi.
DMini.
EM Case.
FJ Case.
GJ Case Low Profile.
HSlotted M Case.
