2014 Ford Transit Connect Fuse Box Diagram

Engine Compartment Fuse Box

The power distribution fuse box is located under the hood, in the engine compartment.

Fuse	Fuse Rating	Circuits protected
F1	–	Not used
F2	–	Not used
F3	–	Not used
F4	–	Not used
F5	–	Not used
F6	–	Not used
F7	40A**	Anti-lock brake system
F8	30A**	Stability control
F9	30A**	Heated rear window
F10	40A**	Blower motor
F11	20A**	Rear floor console auxiliary power point   Cargo area auxiliary power point (van only, vehicles with Start/Stop)
F12	30A**	Powertrain control module
F13	30A**	Starter relay
F14	40A**	Heated windshield (right-hand)
F15	20A**	Cargo area auxiliary power point (van only, vehicles without Start/Stop)   Luggage compartment auxiliary power point (Tourneo, vehicles without Start/Stop)
F16	40A**	Heated windshield (left-hand)
F17	20A**	Floor console auxiliary power point
F18	40A**	Upfitter van block connector feed
F19	5A*	Anti-lock brake system   Stability Control
F20	15A*	Horn
F21	5A*	Stop lamp switch
F22	15A*	Battery monitor system (1.6 GTDI engine only)
10A	Power supply voltage (powertrain control module 2.5 L engine only)
F23	5A*	Relay coils
F24	–	Not used
F25	10A	Power mirrors (without door control unit)
F26	5A*	Engine control relay coil feed (2.5 L engine only)
F27	15A*	Air conditioning clutch
F28	25A*	Rear power window (without door control unit)
F29	25A*	Front power window (without door control unit)
F30	5A	Ignition switch position II output (van only)
F31	15A*	Taxi roof lamp switch
F32	15A*	Engine control module
F33	10A*	Engine control module
F34	10A*	Fuel injectors
F35	15A	Vehicle power 4
F36	10A*	Engine control module (DV6 and Fox engine only)
5A	Active grill shutter (1.6 GTDI and 2.5L engine only)
F37	5A*	PAM/Taxi and upfitter battery saver
F38	15A*	Engine control module   Transmission control module
F39	10A*	Upfitter van block connector feed
F40	5A*	Electronic power assist steering
F41	20A*	Body control module
F42	15A*	Rear window wiper
F43	20A*	Upfitter van block connector feed
15A*	Heated front seat (van only)
F44	15A*	Headlamp control module
5A*	Taxi A/C switch
F45	10A*	Heated washer nozzle
F46	40A**	Windshield wiper
F47	7.5A	Heated exterior mirror (without door control unit)
F48	25A*	Body control module

^*Mini fuses ^**Cartridge fuses

Relay	Circuits switched
R1	Not used
R2	Horn
R3	Battery saver relay
R4	Not used
R5	Rear window wiper
R6	Not used
R7	Heated windshield
R8	Accessory delay
R9	KL15E relay (van)
R10	Starter motor
R11	Air conditioning clutch
R12	Cooling fan
R13	Blower motor
R14	Electronic engine control
R15	Heated rear window
R16	Ignition

Passenger Compartment Fuse Box

The fuse box is located below the glove box.

Fuse	Fuse Rating	Circuits protected
F56	20A	Fuel pump
F57	–	Not used
F58	–	Not used
F59	5A	Passive anti-theft system transceiver
F60	10A	Interior lamp   Driver door switch pack   Glove compartment lamp   Overhead console switch bank
F61	20A	Not used (spare)
F62	5A	Autowipers   Auto-dimming interior mirror
F63	–	Not used
F64	–	Not used
F65	10A	Liftgate release
F66	20A	Front door double locking and unlock relay
F67	7.5A	SYNC   Front display interface module   Global positioning system module
F68	–	Not used
F69	5A	Instrument panel cluster
F70	20A	Central locking relay
F71	10A	Heating control head (manual air conditioning)   Dual automatic temperature control
F72	7.5A	Steering wheel module
F73	7.5A	Data link connector   Battery backup sounder
F74	15A	High beam headlamp
F75	15A	Front fog lamp
F76	10A	Reversing lamp
F77	20A	Washer pump
F78	5A	Ignition switch
F79	15A	Audio unit   DVD navigation system   Touchscreen   Hazard flasher switch   Door lock switch
F80	–	Not used
F81	5A	Power sunroof
interior motion sensor
F82	20A	Washer pump (ground fuse)
F83	20A	Central locking (ground fuse)
F84	20A	Double locking (ground fuse)
F85	7.5A	Ignition switch
F86	10A	Airbag module   Occupant classification system   Passenger airbag deactivation indicator
F87	–	Not used
F88	25A	Body control module KL30 supply
F89	–	Not used

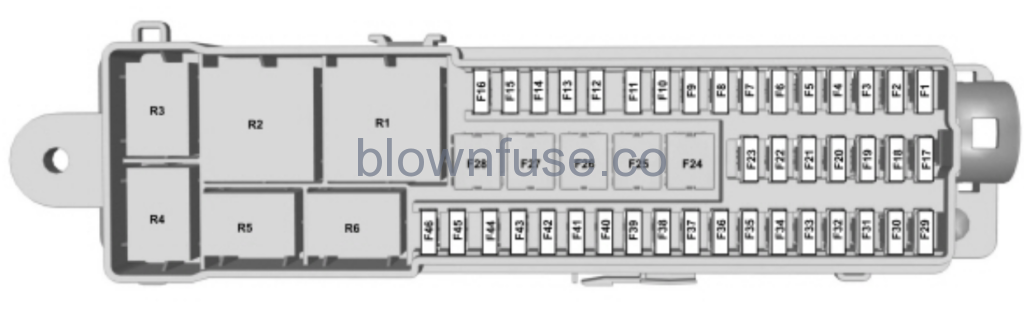

Luggage Compartment Fuse Box

The fuse box is located in the luggage compartment on the right-hand side. Remove the fuse box cover to gain access to the fuses.

Fuse	Fuse Rating	Circuits protected
F1	10A*	Rear heating, ventilation and air conditioning
F2	25A*	Driver seat adjuster
F3	25A*	Driver door module
F4	25A*	Passenger door module
F5	–	Not used
F6	25A*	Door control unit rear left
F7	25A*	Door control unit rear right
F8	–	Not used
F9	–	Not used
F10	–	Not used
F11	–	Not used
F12	–	Not used
F13	–	Not used
F14	–	Not used
F15	–	Not used
F16	–	Not used
F17	–	Not used
F18	–	Not used
F19	–	Not used
F20	–	Not used
F21	–	Not used
F22	–	Not used
F23	–	Not used
F24	–	Not used
F25	40A**	Rear blower motor
F26	40A**	Accessories   Trailer tow module
F27	40A**	Taxi
F28	–	Not used
F29	5A*	Rear view camera
F30	5A*	Parking aid
F31	–	Not used
F32	–	Not used
F33	–	Not used
F34	15A*	Driver heated seat
F35	15A*	Passenger heated seat
F36	–	Not used
F37	20A*	Power sunblind
F38	10A*	Taxi
F39	–	Not used
F40	–	Not used
F41	10A*	Taxi block connector
F42	20A*	Taxi block connector
F43	–	Not used
F44	–	Not used
F45	–	Not used
F46	–	Not used

^*Mini fuses ^**Cartridge fuses

Relay	Circuits switched
R1	Ignition switch
R2	Rear heating, ventilation and air conditioning motor
R3	Battery saver for Taxi
R4	Not used
R5	Not used
R6	Not used

2014 Ford Transit Owners Manual

Additional Information

More detailed specifications and information regarding your 2014 Ford Transit are available at: https://dot.report/vehicle/ford/transit/2014

Changing a Fuse

WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile
