2022 Ford Transit Fuse Box Diagram

by
Contents hide
1 FUSE PRECAUTIONS
2 ACCESSING THE UNDER HOOD FUSE BOX
3 IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
4 ACCESSING THE INTERIOR FUSE BOX
5 IDENTIFYING THE FUSES IN THE INTERIOR FUSE BOX
6 ACCESSING THE BODY CONTROL MODULE FUSE BOX
7 IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
8 LOCATING THE HIGH CURRENT FUSE BOX
9 ACCESSING THE HIGH CURRENT FUSE BOX
10 IDENTIFYING THE FUSES IN THE HIGH CURRENT FUSE BOX
11 IDENTIFYING FUSE TYPES
12 FUSES – FREQUENTLY ASKED QUESTIONS

FUSE PRECAUTIONS



WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

ACCESSING THE UNDER HOOD FUSE BOX



Missing Image

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

Missing Image

Item  Fuse Rating  Protected Component
1  50 A  Wipers.
2  –  Not used.
3  40 A  All-wheel drive – gasoline.
4  30 A  Parking lamps.
5  10 A  Reversing lamp.
6  15 A  Electric steering column lock.
7  40 A  Front blower motor.
8  40 A  Brake vacuum pump – gasoline.
9  15 A  Not used (Spare).
10  5 A  Hybrid powertrain control module – battery electric vehicle.
11  40 A  Auxiliary power point.   USB port.
12  20 A  Horn.
13  10 A  Not used (Spare).
14  15 A  Vehicle power. (Excluding 510 series)
All-wheel drive vehicle power. (510 series)
15  5 A  Charge port – battery electric vehicle.
16  40 A  Brake vacuum pump – battery electric vehicle.
17  10 A  Right-hand high-intensity discharge headlamps.
18  40 A  Rear window defroster.
19  20 A  Not used (Spare).
20  10 A  Power folding mirrors.
21  15 A  Vehicle power 4 – gasoline.
22  40 A  Rear blower motor.
23  20 A  Fuel pump motor – gasoline.
24  40 A  Run/Start relay.
25  40 A  Auxiliary power points.
26  10 A  Left-hand high-intensity discharge headlamps.
27  –  Not used.
28  20 A  Vehicle power 1 – gasoline.
5 A  Powertrain control module – battery electric vehicle.
29  –  Not used.
30  15 A  Water pump – gasoline.
31  5 A  Not used (Spare).
32  15 A  Transmission control module.
5 A  Run/Start powertrain control module – battery electric vehicle.
33  30 A  Starter motor – gasoline.
34  5 A  Not used (Spare).
35  15 A  Vehicle power 2 – gasoline.
36  5 A  Electric compression bypass valve.
Run/Start power distribution box – battery electric vehicle.
37  5 A  Glow plug.
Run/Start power control module – battery electric vehicle.
38  60 A  Power distribution box – battery electric vehicle.
Cooling fan (510 series).
39  10 A  Not used (Spare).
40  10 A  Vehicle power 3 – gasoline.
15 A  Heater pump – battery electric vehicle.   AC compressor – battery electric vehicle.
41  10 A  Onboard generator inverter – battery electric vehicle.
42  5 A  High voltage battery charger – battery electric vehicle.
15 A  Cooling fan (510 series).
43  60 A  Anti-lock brake system pump.
44  25 A  Series fan (Excluding 510 series).
45  30 A  Trailer socket.
46  20 A  Not used (Spare).
47  40 A  Not used (Spare).
48  50 A  Cooling fan (Excluding 510 series).
49  5 A  Electric fan relay coil – battery electric vehicle.
50  5 A  Not used (Spare).
51  10 A  AC clutch – gasoline.
52  50 A  Cooling fan (Excluding 510 series).
60 A  Cooling fan (510 series).
53  5 A  Battery electronic control module – battery electric vehicle.
54  20 A  Battery back-up sounder.
55  5 A  DC/DC converter – battery electric vehicle.
25 A  Transmission fluid pump – gasoline.
56  20 A  Not used (Spare).
57  40 A  Anti-lock brake system valves.
58  30 A  Trailer socket.
59  –  Cooling fan relay – gasoline.

ACCESSING THE INTERIOR FUSE BOX

Driver Compartment Fuse BoxMissing Image

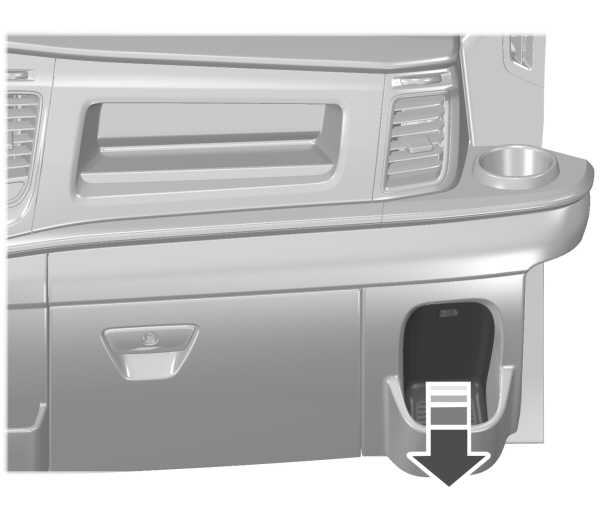

Passenger Compartment Fuse Box:

Missing Image

IDENTIFYING THE FUSES IN THE INTERIOR FUSE BOX

Missing ImageDriver Compartment Fuse Box

Item  Fuse Rating  Protected Component
1  5 A  USB port.
2  –  Not used.
3  5 A  USB port.
4  –  Not used.
5  –  Not used.
6  –  Not used.
7  –  Not used.
8  –  Not used.
9  10 A  Heated exterior mirrors.
10  5 A  Cooling fan.
11  –  Not used.
12  –  Not used.
13  –  Not used.
14  –  Not used.
15  –  Not used.
16  5 A  Rain sensor.
17  –  Not used.
18  20 A  Relay.
19  –  Not used.
20  –  Not used.
21  20 A  Heated rear window.
22  20 A  Heated rear window.
23  20 A  Auxiliary power point.
24  20 A  Auxiliary power point.
25  –  Not used.
26  25 A  Windshield wiper motor.
27  –  Not used.
28  30 A  Modified vehicle connections.
29  20 A  Fuel fired heater.
30  30 A  Power running boards.
31  –  Not used.
32  –  Not used.
33  –  Not used.
34  –  Not used.
35  –  Not used.
36  –  Not used.
37  –  Not used.
38  –  Not used.
39  –  Not used.
40  –  Not used.
41  25 A  Load shed relay.
42  40 A  Starter relay.
43  40 A  Upfitter relay.
44  40 A  Starter relay.
45  10 A  Upfitter interface module.
46  –  Not used.
47  –  Not used.
48  5 A  Modified vehicle connections.
49  10 A  Brake pedal switch.
50  30 A  Passenger power seat.
51  40 A  Modified vehicle connections.
52  30 A  Driver power seat.
53  60 A  Battery.
54  60 A  Power inverter.
55  50 A  Body control module.
56  10 A  Modified vehicle connections.
57  –  Not used.
58  10 A  Connector camper body interface.   Upfitter interface.   Secondary junction box.
59  10 A  Rear climate control.   Front view camera.   Rear view camera.   Adaptive cruise control module.   Blind spot information system.
60  10 A  Trailer brake control module.
61  –  Not used.
62  15 A  Enhanced cut off relay system module.
63  20 A  Auxiliary power point.
64  30 A  Modified vehicle connections.
65  –  Not used.
66  10 A  Enhanced cut off relay system.   Camper.   Load shed relay.
67  –  Not used.
68  5 A  Trailer tow module.
69  5 A  Steering wheel module.
70  5 A  Swivel seats.
71  10 A  Passenger heated seat.
72  10 A  Driver heated seat.
73  20 A  Headlamp leveling.
74  5 A  Temperature sensor.
75  20 A  Engine compartment fuse box.
76  10 A  Power sliding door control switch.
77  5 A  Headlamp switch.
78  7.5 A  Modified vehicle connections.
79  5 A  Driver compartment fuse box relay.
80  10 A  Diagnostic connector.
81  40 A  Trailer tow module.
82  30 A  Power sliding door.
83  30 A  Trailer brake control module.
84  50 A  Body control module.
85  30 A  Power sliding door.
86  50 A  Body control module.

Missing ImagePassenger Compartment Fuse Box

Item  Fuse Rating  Protected Component
1  40 A  Relay 2.
2  40 A  Relay 3.
3  20 A  Relay 1.
4  20 A  Relay 4.
5  20 A  Relay 5.
6  –  Not used.
7  –  Not used.
8  20 A  Relay 7.
9  20 A  Relay 8.
10  –  Not used.
11  –  Not used.
12  20 A  Relay 9.
13  5 A  Relay 6.
14  5 A  Ignition.
15  5 A  Power supply.
16  20 A  Auxiliary switch 3 relay.
17  40 A  Auxiliary switch 3 relay.
18  40 A  Auxiliary switch 3 relay.
19  20 A  Auxiliary switch 4 relay.
20  20 A  Auxiliary switch 5 relay.
21  20 A  Auxiliary fuse box relay.
22  20 A  Auxiliary switch 7 relay.
23  20 A  Auxiliary switch 8 relay.
24  20 A  Auxiliary switch 9 relay.

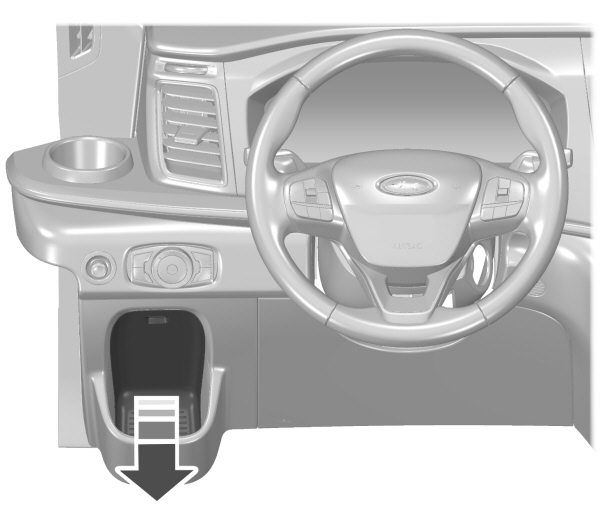

ACCESSING THE BODY CONTROL MODULE FUSE BOX



Missing Image

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX

Missing Image

Item  Fuse Rating  Protected Component
1  –  Not used.
2  10 A  Power inverter.
3  7.5 A  Power window switch.   Power exterior mirrors.
4  20 A  Not used.
5  –  Not used.
6  10 A  Not used.
7  10 A  Not used.
8  5 A  Telematics control unit module.
9  5 A  Rear air conditioning.
10  –  Not used.
11  –  Not used.
12  7.5 A  Climate control.
13  7.5 A  Data link connector.   Steering column.   Instrument cluster.
14  15 A  Not used.
15  15 A  SYNC 3 module.   Integrated control panel.
16  –  Not used.
17  7.5 A  Not used.
18  7.5 A  Not used.
19  5 A  Not used.
20  5 A  Ignition switch.
21  5 A  Not used.
22  5 A  Not used.
23  30 A  Not used.
24  30 A  Not used.
25  20 A  Not used.
26  30 A  Not used.
27  30 A  Not used.
28  30 A  Not used.
29  15 A  Not used.
30  5 A  Not used.
31  10 A  Data link connector.   Remote key receiver.
32  20 A  Radio.
33  –  Not used.
34  30 A  Run/Start relay.   Parking aid.   Steering column.
35  5 A  Not used.
36  15 A  Parking aid.
37  20 A  Not used.
38  30 A  Power windows.

LOCATING THE HIGH CURRENT FUSE BOX

The high current fuse box is under the driver seat.

ACCESSING THE HIGH CURRENT FUSE BOX

Remove the trim panel.

IDENTIFYING THE FUSES IN THE HIGH CURRENT FUSE BOX

Missing Image

Item  Fuse Rating  Protected Component
1  125 A  Body control module.
2  80 A  Electronic power assist steering.
3  150 A  Positive temperature coefficient heater.
4  –  Not used.
5  60 A  Cooling fan.
6  150 A  Passenger compartment fuse box.
7  60 A  Camper.
8  –  Not used.
9  500 A  Starter motor.   Alternator.
10  300 A  Engine compartment fuse box.
11  250 A  Dual generators.
12  150 A  Driver compartment fuse box.
13  190 A  Load shed relay.
14  175 A  Auxiliary power point 1.
15  60 A  Auxiliary power point 2.

IDENTIFYING FUSE TYPES

Missing Image

AMicro 2.
BMicro 3.
CMaxi.
DMini.
EM Case.
FJ Case.
GJ Case Low Profile.
HSlotted M Case.

FUSES – FREQUENTLY ASKED QUESTIONS

When do I need to check a fuse?If electrical components in the vehicle are not working.When do I need to replace a fuse?If a fuse has blown.How do I identify a blown fuse?You can identify a blown fuse by a broken wire within the fuse.

To download the complete user manual, please download the following file:

https://www.fordservicecontent.com/Ford_Content/vdirsnet/OwnerManual/Home/Index?Variantid=8416&languageCode=EN&countryCode=USA&VIN=&userMarket=usa&div=f
