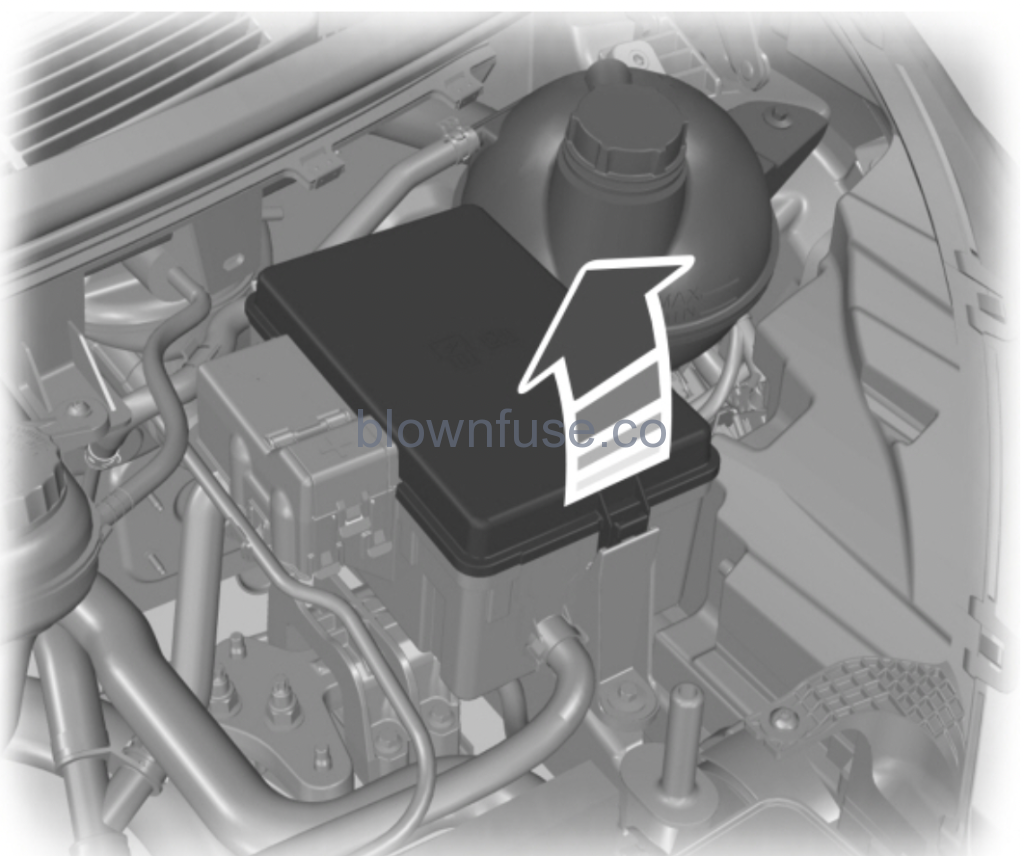

Engine Compartment Fuse Box Location

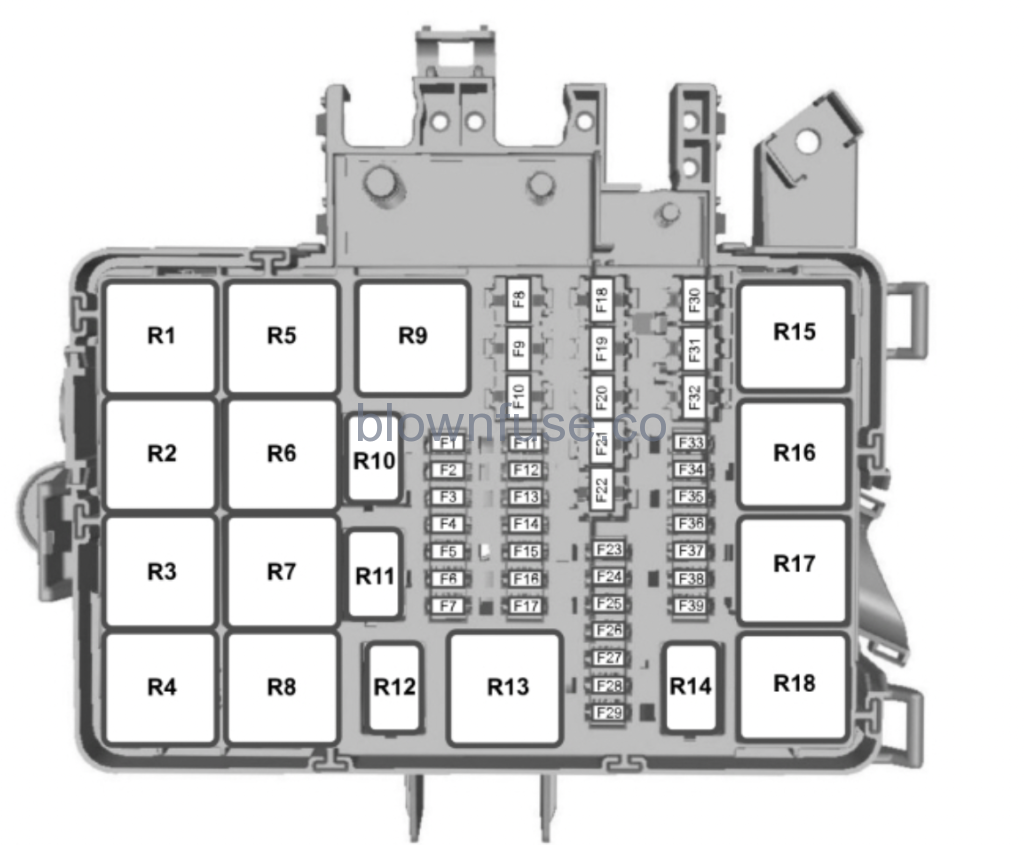

Engine Compartment Fuse Box
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| F1 | 10A | Selective Catalytic Reduction – Diesel. |
| F2 | 15A | Selective Catalytic Reduction – Diesel. |
| F3 | 15A | Selective Catalytic Reduction – Diesel. |
| F4 | 10A | Selective Catalytic Reduction – Diesel. |
| F5 | 3A | Diesel particulate filter vaporizer – Diesel. Glow plug monitor – Diesel. |
| F6 | – | Not used. |
| F7 | 7.5A | Automatic transmission control module ignition feed. |
| F8 | 20A | Cooling fan – Gasoline. |
| F9 | – | Not used. |
| F10 | – | Not used. |
| F11 | 10A | Air conditioning clutch. |
| F12 | 20A | Diesel particulate filter vaporizer glow plug – Diesel. |
| F13 | – | Not used. |
| F14 | 3A | Selective Catalytic Reduction – ignition – Diesel. |
| F15 | – | Not used. |
| F16 | 10A | Fuel pump relay – Diesel. |
| 20A | Fuel pump relay – Gasoline. | |
| F17 | 15A | Automatic transmission module (battery feed) – Diesel. |
| F18 | 30A | Anti-lock brake system. Stability assist pump – Diesel. Engine compartment fuse box #F16 – Gasoline. Engine compartment fuse box #F16, #F17 – Diesel. |
| F19 | 30A | Starter solenoid. |
| F20 | 60A | Glow plugs – Diesel. |
| F21 | 60A | Ignition relay 3. |
| F22 | 40A | Selective Catalytic Reduction relay feed. |
| 40A | Electric vacuum pump relay feed – Gasoline. | |
| F23 | 10A | PROTECTED CIRCUIT FUSE. |
| F24 | – | Not used. |
| F25 | 10A | Not used (spare). |
| F26 | 20A | PROTECTED CIRCUIT FUSE. |
| F27 | – | Not used. |
| F28 | 7.5A | Crankcase sensor – Diesel. |
| F29 | 3A | Ignition feed – Audio – Gasoline. |
| 7.5A | Crank case ventilation heater – Diesel. | |
| F30 | 60A | Single cooling fan – Diesel. |
| 40A | Twin cooling fan – Gasoline. | |
| F31 | 40A | Twin cooling fan 2 – Gasoline. |
| F32 | 30A | Windshield wiper motor. |
| F33 | – | Not used. |
| F34 | – | Not used. |
| F35 | 20A | Powertrain control system supply – Gasoline. |
| 15A | Powertrain control system supply – Diesel. | |
| F36 | 20A | Mass air flow sensor – Gasoline. |
| 15A | PM sensor – Diesel. Urea quality sensor – Diesel. NOX sensor 1, 2 – Diesel. | |
| F37 | 7.5A | Volume control valve – Diesel. |
| F38 | 20A | Air conditioning clutch – Gasoline. |
| 7.5A | Air conditioning clutch – Diesel. | |
| F39 | 7.5A | UEGO, VAP PUMP, EBYPASS, EDF, HEDF – 3.7L gasoline engine. |
| 10A | UEGO, VAP PUMP, EBYPASS, EDF, HEDF – 3.5L gasoline engine. | |
| 15A | UEGO, VAP PUMP, EBYPASS, EDF, HEDF – Diesel. |
| Relay | Circuits switched |
|---|---|
| R1 | Ignition 3. |
| R2 | Not used. |
| R3 | Not used. |
| R4 | Not used. |
| R5 | Cooling fan – Gasoline. |
| R6 | Windshield wiper – on and off. |
| R7 | Windshield wiper – low and high speed. |
| R8 | Electrical Vacuum Pump – Gasoline. |
| R9 | Starter motor. |
| R10 | Air conditioning clutch. |
| R11 | Fuel vaporizer system glow plug – Diesel. |
| R12 | Fuel injection pump. |
| R13 | Not used. |
| R14 | Not used. |
| R15 | Low-speed and high-speed cooling fan. |
| R16 | Selective Catalytic Reduction – Diesel. |
| R17 | Powertrain control module. |
| R18 | High speed cooling fan. |

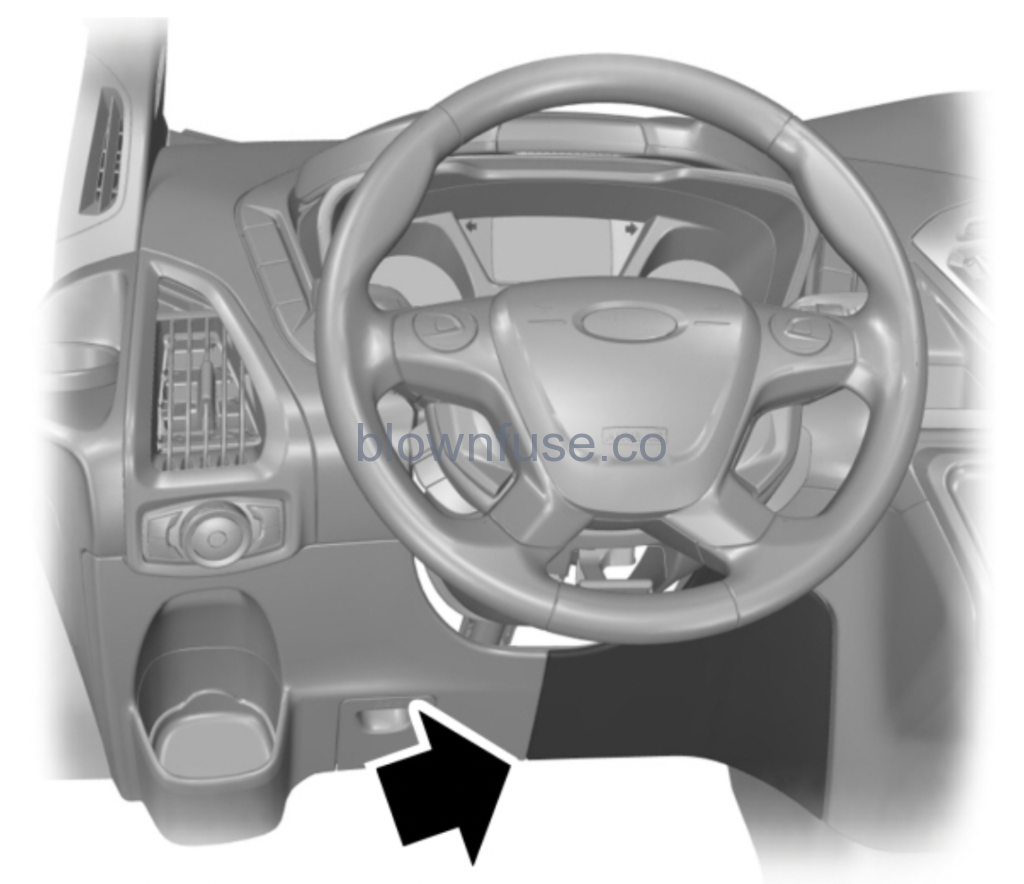

Passenger Compartment Fuse Box Location
This is located behind the removable trim panel.

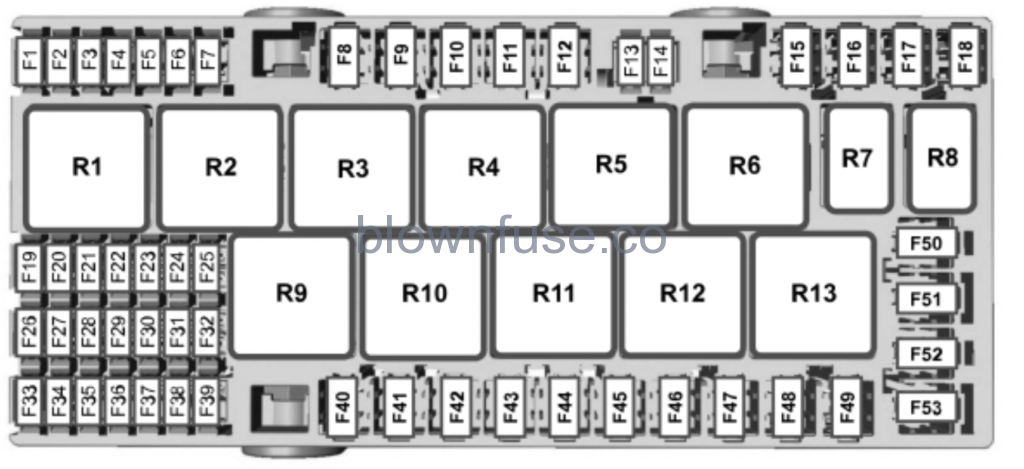

Passenger Compartment Fuse Box
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| F1 | 10A | Airbag module. |
| F2 | 4A | Anti-lock brake system with electronic stability control. Parking brake. |
| F3 | – | Not used. |
| F4 | 10A | Trailer tow back-up lamp relay. |
| F5 | 20A | Cutaway body connectors. |
| F6 | – | Not used. |
| F7 | – | Not used. |
| F8 | 40A | AC power outlet socket. |
| F9 | 30A | Trailer brake module. |
| F10 | 30A | Driver power seat. |
| F11 | 30A | Passenger power seat. |
| F12 | 30A | Trailer tow park lamp relay. |
| F13 | 25A | Anti-lock brake system with electronic stability control valves. |
| F14 | 5A | Powertrain control module B+ relay. |
| F15 | 40A | Powertrain control module power relay. |
| F16 | 40A | Body control module power feed. |
| F17 | 40A | Anti-lock brake system. |
| F18 | 40A | Modified vehicle connections. |
| F19 | – | Not used. |
| F20 | 5A | Heated exterior mirror relay. Heated rear window. |
| F21 | 10A | Modified vehicle ignition connections. |
| F22 | 15A | Passenger compartment fuse panel (Body control module). |
| F23 | 7.5A | Air conditioning control module. |
| F24 | 10A | Cutaway body connectors. |
| F25 | 7.5A | Interior lighting. Power point relay control. |
| F26 | 10A | Heated exterior mirrors. |
| F27 | 20A | Heated rear window. |
| F28 | 20A | Heated rear window. |
| F29 | 10A | Rear parking aid camera. Lane keeping system. Electro mirror. |
| F30 | – | Not used. |
| F31 | 10A | Trailer brake ignition feed. |
| F32 | 10A | Interior lighting. |
| F33 | – | Not used. |
| F34 | – | Not used. |
| F35 | 5A | Mirror switch. Driver’s power window switch. |
| F36 | 20A | Horn. |
| F37 | 7.5A | SYNC module. GPS module. |
| F38 | 5A | Blower motor relay. Horn relay. Windshield wiper relay. |
| F39 | 7.5A | Remote keyless entry. Rear heating, ventilation and air conditioning. Trailer tow backup relay coil. Park lamp relay coil. |
| F40 | 40A | Front blower motor. |
| F41 | 40A | Rear blower motor. |
| F42 | 40A | Heated rear window. |
| F43 | 30A | Trailer socket. Trailer tow module. |
| F44 | 60A | Auxiliary power points. |
| F45 | 40A | Trailer connectors B+ supply. Trailer tow module. |
| F46 | 30A | Power windows. |
| F47 | 20A | Cigar lighter socket. |
| F48 | 20A | Rear auxiliary power points. |
| F49 | 20A | Front auxiliary power points. |
| F50 | 60A | Ignition relay 1. |
| F51 | – | Not used. |
| F52 | 40A | Modified vehicle connections. |
| F53 | 40A | Modified vehicle connections. |
| Relay | Circuits switched |
|---|---|
| R1 | Not used (spare). |
| R2 | Auxiliary power points. |
| R3 | Trailer tow parking lamp. |
| R4 | Not used. |
| R5 | Power windows. |
| R6 | Ignition 1. |
| R7 | Horn. |
| R8 | Trailer tow back-up lamp. |
| R9 | Front blower motor. |
| R10 | Rear blower motor. |
| R11 | Heated rear window. Heated exterior mirrors. |
| R12 | Not used. |
| R13 | Modified vehicle connections. |

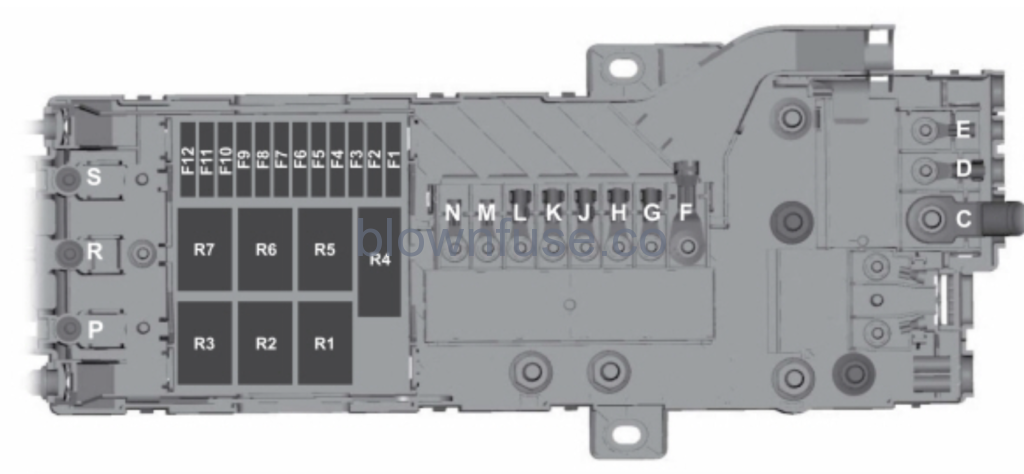

Pre-fuse Box
This is located under the driver seat.
| Fusible link | Fusible link rating | Circuits protected |
|---|---|---|
| C | 470A | Engine compartment fuse box. Starter motor. Alternator. |
| D | 100A | Passenger compartment fuse panel. Body control module fuse box. |
| E | – | Not used. |
| F | 200A | Passenger compartment fuse panel (SRBI BB3). |
| G | 100A | Passenger compartment fuse panel (SRB1 BB1). |
| H | 80A | Auxiliary heater – Diesel. |
| J | 80A | Modified vehicle connections (SRB F52 and F53). |
| K | 100A | Engine junction box feed. |
| L | 100A | Passenger compartment fuse panel. |
| M | 60A | Passenger compartment fuse panel supply (Body control module). |
| N | 60A | Passenger compartment fuse panel supply (Body control module). |
| P | 60A | Auxiliary power point 1 (Customer connection point). |
| R | 60A | Auxiliary power point 2 (Customer connection point). |
| S | 60A | Auxiliary power point 3 (Customer connection point). |
Auxiliary Fuse Panel (Upfitters)
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| F1 | – | Not used. |
| F2 | – | Not used. |
| F3 | – | Not used. |
| F4 | – | Not used. |
| F5 | 20A | R4 relay power. |
| F6 | 20A | R3 relay power. |
| F7 | 20A | R2 relay power. |
| F8 | 20A | R1 relay power. |
| F9 | – | Not used. |
| F10 | – | Not used. |
| F11 | – | Not used. |
| F12 | 3A | Switch power. |
| Relay | Circuits switched |
|---|---|
| R1 | Upfitter 1. |
| R2 | Upfitter 2. |
| R3 | Upfitter 3. |
| R4 | Upfitter 4. |
| R5 | Not used. |
| R6 | Not used. |
| R7 | Not used. |

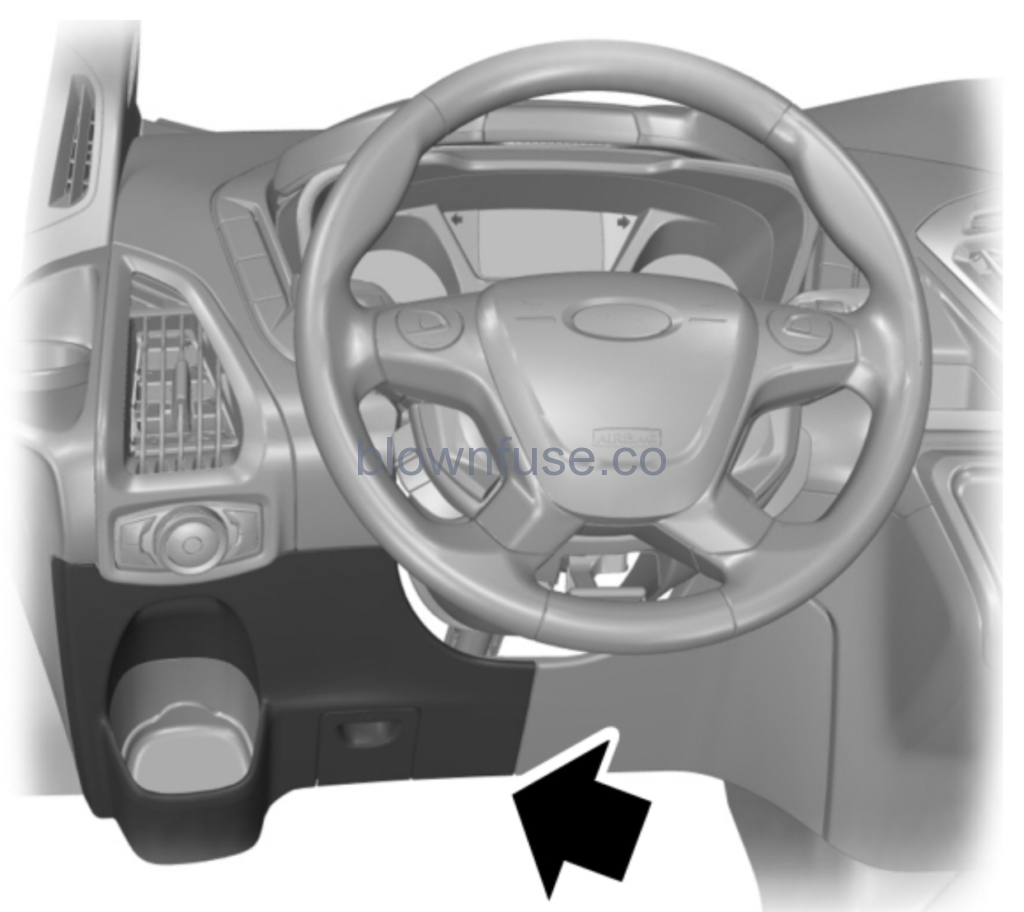

Body Control Module Location
This is located behind the removable trim panel.
Body Control Module Fuse Box Diagram
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| F1 | 15A | Central locking system 2. |
| F2 | 15A | Central locking system 1. |
| F3 | 15A | Ignition switch. |
| F4 | 5A | Parking assist control module. Brake transmission shift interlock. |
| F5 | 5A | Rain sensor module. |
| F6 | 15A | Windshield washer pump. |
| F7 | – | Not used. |
| F8 | – | Not used. |
| F9 | 10A | Right-hand high beam. |
| F10 | 10A | Left-hand high beam. |
| F11 | 25A | Right-hand exterior lamps. Left-hand position lamps. |
| F12 | – | Not used. |
| F13 | 15A | On-board diagnostic. Battery saver. |
| F14 | 25A | Turn signal indicator. Power windows delayed accessory. Lane departure sensor heated windshield pad. |
| F15 | 25A | Left-hand exterior lamps. Right-hand position lamps. High mounted stoplamp. |
| F16 | 20A | Audio unit. Navigation unit. |
| F17 | 7.5A | Instrument panel cluster. Heater control. |
| F18 | 10A | Headlamp switch module. Steering wheel module. Stoplamp switch supply. |
| F19 | 5A | Front control/display interface module. |
| F20 | 5A | Ignition passive anti-theft system. |
| F21 | 3A | Accessory relay, customer access feed. |
2016 Ford Transit Owners Manual
Changing a Fuse
Fuses
 WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
| Callout | Fuse Type |
|---|---|
| A | Micro 2 |
| B | Micro 3 |
| C | Maxi |
| D | Mini |
| E | M Case |
| F | J Case |
| G | J Case Low Profile |
