FUSE SPECIFICATION CHART
Power Distribution Box
 WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |

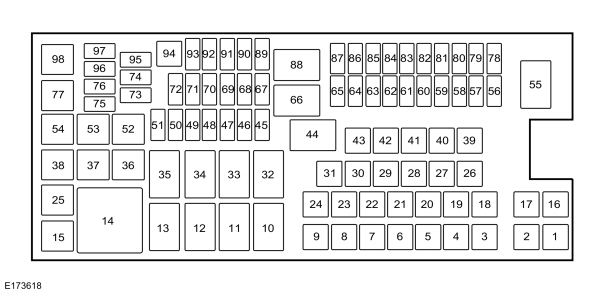

The power distribution box is in the engine compartment. It has high-current fuses that protect the vehicle’s main electrical systems from overloads.If you disconnect and reconnect the battery, you need to reset some features. See Changing the 12V Battery.
| Fuse or Relay Number | Fuse Amp Rating | Protected Components |
|---|---|---|
| 1 | 50A1 | Rear power point tap feed 1. |
| 2 | 50A1 | Rear power point tap feed 2. |
| 3 | – | Not used. |
| 4 | 30A1 | Wiper motor relay. |
| 5 | 50A1 | Anti-lock brake system pump. |
| 6 | 40A1 | Center console 6-way B+ feed 2. |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | – | Not used. |
| 11 | – | Heated rear window relay. Heated mirror relay. |
| 12 | – | Run/start relay. |
| 13 | – | Starter motor relay. |
| 14 | – | Left-hand cooling fan number 2 relay. |
| 15 | – | Fuel pump relay. |
| 16 | 40A1 | Center console 6-way B+ feed 1. |
| 17 | – | Not used. |
| 18 | 40A1 | Front blower motor relay. |
| 19 | 30A1 | Starter relay. |
| 20 | 20A1 | Center console power point 2. |
| 21 | – | Not used. |
| 22 | – | Not used. |
| 23 | 30A1 | Driver power seat. |
| 24 | 40A1 | Police run/start relay. |
| 25 | – | Not used. |
| 26 | 40A1 | Heated rear window relay. |
| 27 | 20A1 | Center console power point 1. |
| 28 | – | Not used. |
| 29 | 40A1 | Engine cooling fan 1 high speed power. Engine cooling fan 1 and 2 low speed primary fuse. |
| 30 | 40A1 | Engine cooling fan 2 high speed fuse. |
| 31 | 25A1 | Engine cooling fan 1 and 2 low speed secondary fuse. |
| 32 | – | Not used. |
| 33 | – | Engine cooling fan 1 and 2 low speed relay 2. |
| 34 | – | Blower motor relay. |
| 35 | – | Engine cooling fan 1 high speed relay. Engine cooling fan 1 and 2 low speed relay 1. |
| 36 | – | Not used. |
| 37 | – | Not used. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | 40A1 | Center console 6-way B+ feed 1. |
| 41 | – | Not used. |
| 42 | 30A1 | Passenger power seat. |
| 43 | 20A1 | Anti-lock brake system valves. |
| 44 | – | Not used. |
| 45 | – | Not used. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | – | Not used. |
| 49 | – | Not used. |
| 50 | 15A2 | Heated mirrors. |
| 51 | – | Not used. |
| 52 | – | Not used. |
| 53 | – | Not used. |
| 54 | – | Not used. |
| 55 | – | Wiper relay. |
| 56 | – | Not used. |
| 57 | – | Not used. |
| 58 | 10A2 | Alternator A-line. |
| 59 | 10A2 | Brake on/off switch. |
| 60 | – | Not used. |
| 61 | – | Not used. |
| 62 | 10A2 | A/C clutch relay. |
| 63 | – | Not used. |
| 64 | – | Not used. |
| 65 | 30A2 | Fuel pump relay. |
| 66 | – | Powertrain control module relay. |
| 67 | 20A2 | Oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A2 | Ignition coils. |
| 69 | 20A2 | Vehicle power 1 (powertrain control module). |
| 70 | 15A2 | A/C clutch. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | 20A2 | Center console run/start feed 1. |
| 74 | 20A2 | Center console run/start feed 2. |
| 75 | Diode. | Diode. |
| 76 | – | Not used. |
| 77 | – | Not used. |
| 78 | – | Not used. |
| 79 | – | Not used. |
| 80 | 25A2 | Police rear flasher. Package tray lighting access circuit. |
| 81 | 20A2 | Spot lights. |
| 82 | – | Not used. |
| 83 | – | Not used. |
| 84 | – | Not used. |
| 85 | – | Not used. |
| 86 | 7.5A2 | Powertrain control module. Keep alive power and relay. Canister vent solenoid. |
| 87 | 5A2 | Run/start relay. |
| 88 | – | Run/start relay. |
| 89 | 5A2 | Front blower relay coil. Electrical power assist steering module. |
| 90 | 10A2 | Powertrain control module run/start. |
| 91 | – | Not used. |
| 92 | 10A2 | Anti-lock brake system module. |
| 93 | 5A2 | Rear window defrost relay. Trunk release relay. |
| 94 | 30A1 | Passenger compartment fuse panel run/start. |
| 95 | 20A2 | Center console start feed. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | – | A/C clutch relay. |
1J-case fuses.2Mini fuses.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.
| Fuse or Relay Number | Fuse Amp Rating | Protected Components |
|---|---|---|
| 1 | 30A | Left front and right rear smart window motors. |
| 2 | 15A | Driver seat switch. 14-way B+ feed 3. |
| 3 | 30A | Not used (spare). |
| 4 | 10A | Demand lamps battery saver relay. Glove box lamp. Task lamp. |
| 5 | 20A | 14-way B+ feed 1. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5A | Not used (spare). |
| 8 | 10A | Not used (spare). |
| 9 | 10A | SYNC module. Multi-function displays. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. |
| 11 | 10A | Not used (spare). |
| 12 | 15A | Backlighting LED. Interior lighting. Backlighting feed. |
| 13 | 15A | Right-hand direction indicators. Right rear police fuse/relay box. |
| 14 | 15A | Left-hand direction indicators. Left rear police fuse/relay box. |
| 15 | 15A | Stop lamp. Backup lamp. |
| 16 | 10A | Right low beam. |
| 17 | 10A | Left low beam. |
| 18 | 10A | Brake-shift interlock. Powertrain control module wake-up. |
| 19 | 20A | Police B+ 8 access circuit center console. 14-way B+ feed 2. |
| 20 | 20A | All lock motor relay and coil. Driver lock motor relay and coil. |
| 21 | 10A | Extended power module. |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic Instrument cluster. |
| 24 | 15A | Steering wheel control module. |
| 25 | 15A | Not used (spare). |
| 26 | 5A | Ignition switch. |
| 27 | 20A | Not used (spare). |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. |
| 31 | 5A | Brake signal for police equipment. |
| 32 | 15A | Master window and mirror switch. Lock switch illumination. Police console inline delayed accessory feed. Delayed accessory feed. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Blind spot monitor module. Rear video camera. |
| 35 | 5A | Motorized humidity sensor. Overdrive cancel switch (Low gear switch feed). Column shift – low gear. |
| 36 | 10A | Not used (spare). |
| 37 | 10A | Not used (spare). |
| 38 | 10A | Auto–dimming mirror. Rear camera display mirror. |
| 39 | 15A | High beam headlamp shutters. |
| 40 | 10A | Rear park lamps. |
| 41 | 7.5A | Extended power module. |
| 42 | 5A | Police 4-button steering wheel control module. |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Not used (spare). |
| 48 | 30A Circuit breaker | Window switches. |
| 49 | – | Delayed accessory. |
CHANGING A FUSE
Fuses
| WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Fuse Types
| Callout | Fuse Type |
|---|---|
| A | Micro 2 |
| B | Micro 3 |
| C | Maxi |
| D | Mini |
| E | M Case |
| F | J Case |
| G | J Case Low Profile |
To download the complete user manual, please download the following file:
