2021 Ford GT Fuse Box Diagram

Front Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The front power distribution box is under the front hood.   See   Under Hood Overview.  It has high-current fuses that protect your vehicle’s main electrical systems from overloads. There are also high-current fuses next to the front power distribution box. If you need to replace these high-current fuses, see an authorized dealer.If you disconnect and reconnect the battery, you need to reset some features. See  Changing the 12V Battery – Vehicles Built From: 01-10-2018 .

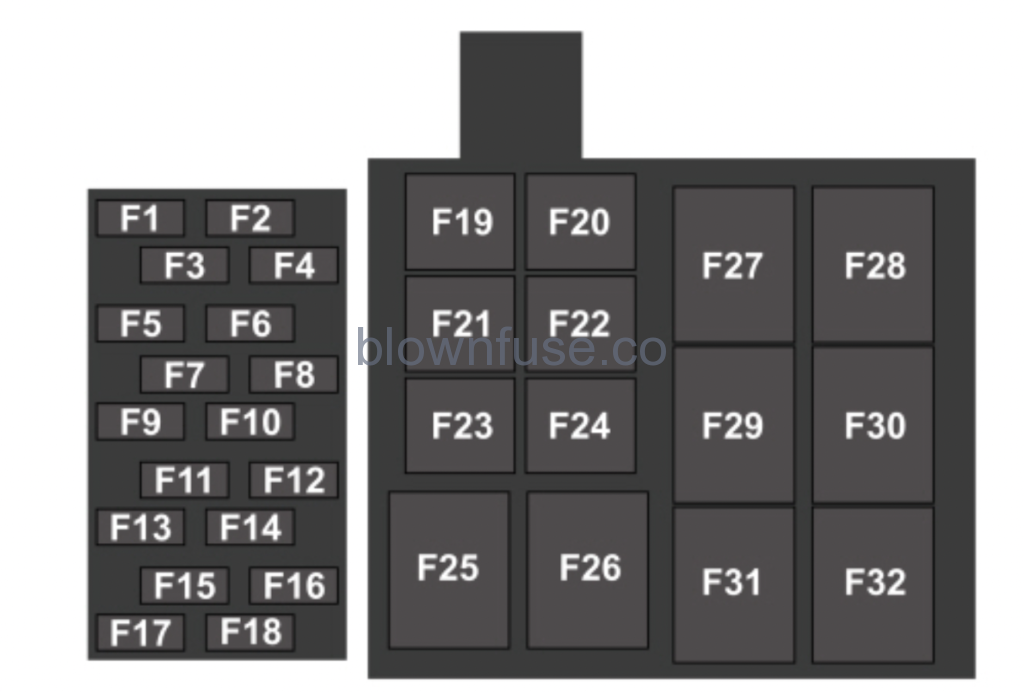

2021 Ford GT Fuse Box Diagram
Fuse or Relay Number  Fuse Rating  Protected Components
F1  —  Vehicle dynamics module relay.
F2  —  Radiator fan 1 relay.
F3  —  Heating ventilation and air conditioning blower relay.
F4  —  Wipers relay.
F5  —  Radiator fan 2 relay.
F6  —  Horn relay.
F7  50 A1  Body control module.
F8  —  Shunt.
F9  40 A1  Vacuum pump.
F10  25 A1  Wiper.
F11  40 A1  Radiator fan 2.
F12  50 A1  Body control module.
F13  60 A1  Body control module.
F14  40 A1  Radiator fan 1.
F15  40 A1  Heating ventilation and air conditioning blower.
F16  40 A1  Anti-lock brake system.
F17  40 A1  Anti-lock brake system.
F18  30 A1  Body control module.
F19  —  Vacuum pump relay.
F20  5 A2  Vehicle dynamics module.
F21  20 A2  Left-hand headlamp.
F22  5 A2  Anti-lock brake system.
F23  20 A2  Horn.
F24  20 A2  Electronic door system.
F25  20 A2  Right-hand headlamp.

1J-case fuse.2Mini fuse.

Rear Power Distribution Box

The rear power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. These are in the right-hand side of the engine compartment behind an access door in the engine surround panel. If you need to replace these high-current fuses, see an authorized dealer.If you disconnect and reconnect the battery, you need to reset some features. See  Changing the 12V Battery – Vehicles Built From: 01-10-2018 .

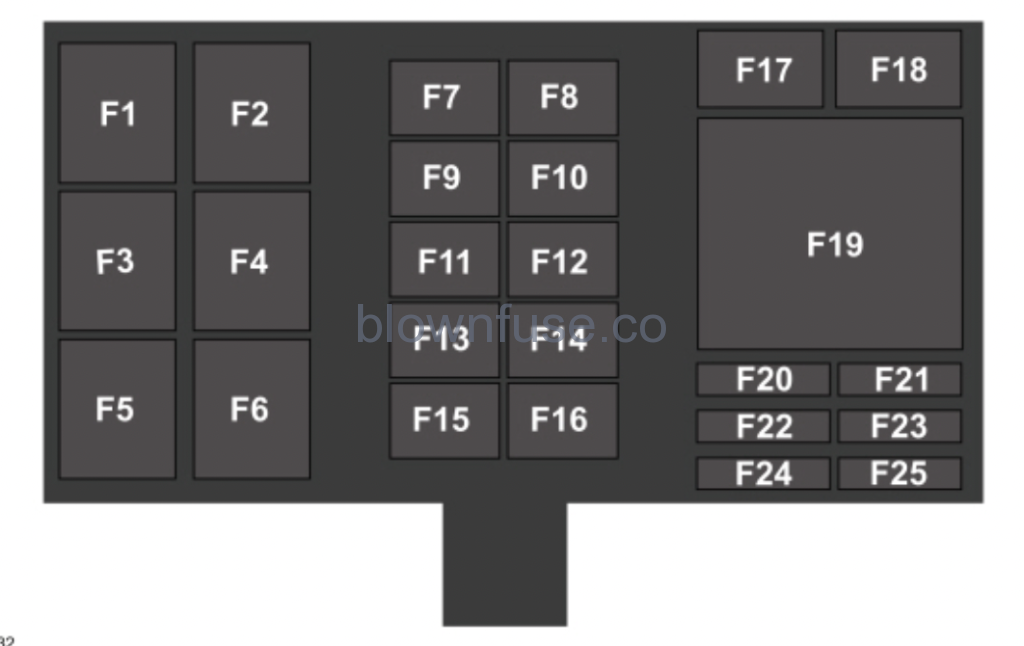

2021 Ford GT Fuse Box Diagram
Fuse or Relay Number  Fuse Rating  Protected Components
F1  15 A3  Vehicle power 3.
F2  5 A3  Mass airflow.
F3  10 A3  Engine control module.
F4  5 A3  Transmission control module.
F5  20 A3  Vehicle power 1.
F6  5 A3  Keep alive power.
F7  —  Not used.
F8  5 A3  Rear video camera.
F9  —  Not used.
F10  10 A3  Alternator sense.
F11  10 A3  Air conditioner.
F12  10 A3  Damper.
F13  20 A3  Vehicle power 4.
F14  —  Not used.
F15  —  Not used.
F16  5 A3  Engine control module.   Run/start.
F17  20 A3  Vehicle power 2.
F18  15 A3  Injector.
F19  30 A45  Fuel pump 1.
F20  30 A45  Fuel pump 2.
F21  30 A45  Transmission control module.
F22  30 A45  Starter.
F23  30 A45  Charge air cooler fan.
F24  —  Shunt.
F25  —  Charge air cooler fan relay.
F26  —  Not used.
F27  —  Fuel pump 1 relay.
F28  —  A/C clutch relay.
F29  —  Starter relay.
F30  —  Fuel injection relay.
F31  —  Fuel pump 2 relay.
F32  —  Engine control module relay.

3Mini fuse.4J-case fuse.

Rear Power Distribution Box 2

The rear power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. These are in the right-hand side of the engine compartment behind an access door in the engine surround panel. If you need to replace these high-current fuses, see an authorized dealer.If you disconnect and reconnect the battery, you need to reset some features.

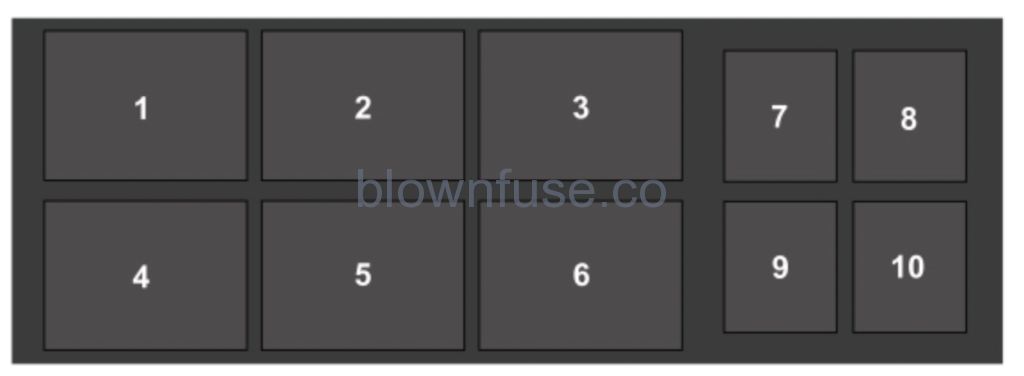

2021 Ford GT Fuse Box Diagram
Fuse or Relay Number  Fuse Rating  Protected Components
1  —  Transmission gear fluid cooler fan relay.
2  —  Engine oil cooler fan relay.
3  —  Transmission clutch fluid cooler fan relay.
4  —  Not used.
5  —  Not used.
6  —  Not used.
7  20 A45  Engine oil cooler fan.
8  25 A45  Transmission clutch fluid cooler fan.
9  20 A45  Transmission gear fluid cooler fan.
10  20 A45  Trunk power point.

5J-case fuse.

Passenger Compartment Fuse Panel

The fuse panel is in the passenger footwell behind the toeboard panel.

2021 Ford GT Fuse Box Diagram

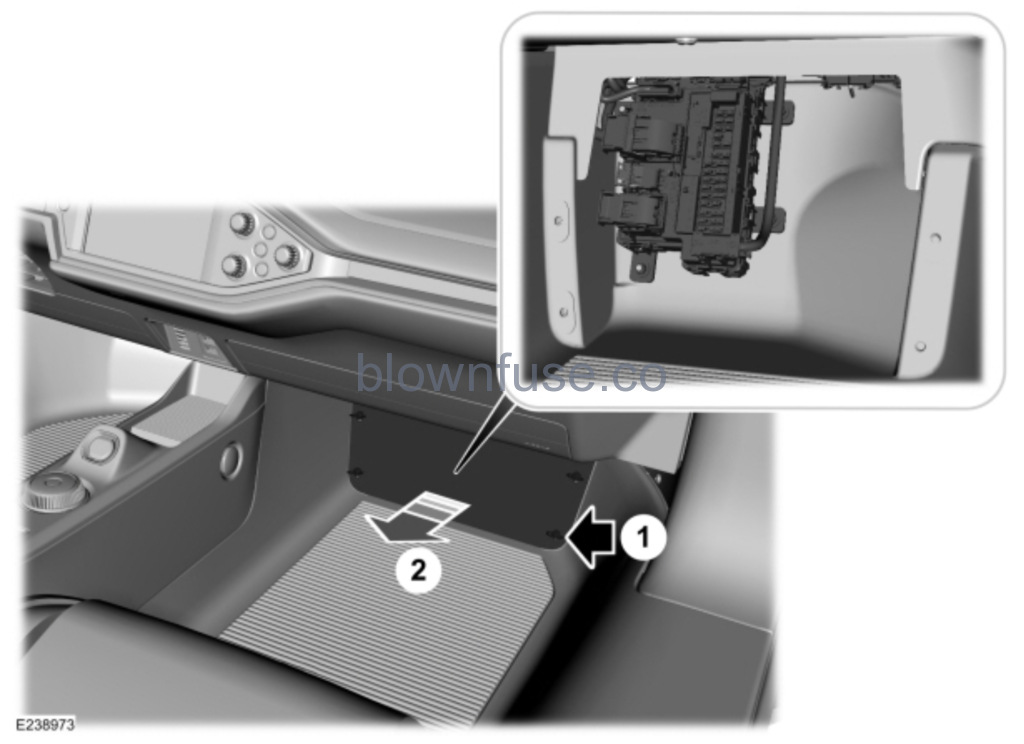

To remove the toeboard panel, rotate each of the four fasteners, and then pull the toeboard panel toward you. Once you remove this panel, you can access the fuse panel. After replacing a fuse, reinstall the toeboard panel and rotate the fasteners back to their original position.

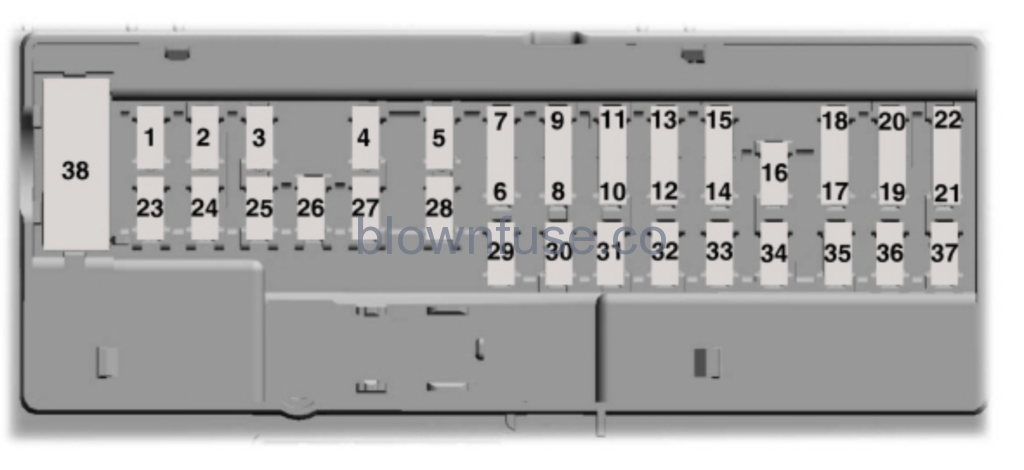

2021 Ford GT Fuse Box Diagram
Fuse or Relay Number  Fuse Rating  Protected Components
1  —  Not used.
2  7.5 A6  Not used (spare).
3  20 A6  Driver unlock relay.   Double lock relay.
4  5 A6  Not used (spare).
5  20 A6  Not used (spare).
6  10 A7  Not used (spare).
7  10 A7  Not used (spare).
8  10 A7  Not used (spare).
9  10 A7  Brake on-off switch.
10  5 A7  Push button start switch.
11  5 A7  Right-hand and left-hand exterior door locks and handles.
12  7.5 A7  RF transceiver module.
13  7.5 A7  Steering column control module logic.   Smart datalink connector logic.   Instrument cluster.
14  10 A7  Extended power mode module.
15  10 A7  Smart datalink connector power.
16  15 A6  Decklid release relay.
17  5 A7  Combined sensor module.
18  5 A7  Telematics control unit – modem.
19  7.5 A7  Not used (spare).
20  7.5 A7  Front damper controllers.
21  5 A7  Shift indicator module head up display.   Interior temperature sensor.
22  5 A7  Extended power mode module.
23  10 A6  Right-hand window switch illumination.   Right-hand door lock switch illumination.   Left-hand door lock switch illumination.   Power mirror/window switch (motor).   Right-hand smart window motor (logic).   Left-hand smart window motor (logic).
24  20 A6  Central lock relay.   Central unlock relay.
25  30 A6  Left-hand smart window motor.
26  30 A6  Right-hand smart window motor.
27  30 A6  Not used (spare).
28  20 A6  Electronic steering column lock (relay supply).
29  30 A6  Not used (spare).
30  30 A6  Not used (spare).
31  15 A6  Not used (spare).
32  10 A6  SYNC.   Audio on/off switch.   Gear shift module.   Heating ventilation and air conditioning electronic control unit power.
33  20 A6  Audio control module.
34  30 A6  Run-start relay (R12).
35  5 A6  Steering angle sensor module.
36  15 A6  Auxiliary power point.
37  20 A6  Heating ventilation and air conditioning electronic control unit ignition.   Front power distribution box ignition (F1, F3, F20, F22).   Rear power distribution box 1 ignition (F4, F8, F12, F16).
38  —  Not used.

6Micro 2 fuse.7Micro 3 fuse.

Note:   Spare fuses can vary per amperage depending on the trim level of the vehicle.

2021 Ford GT Owners Manual

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

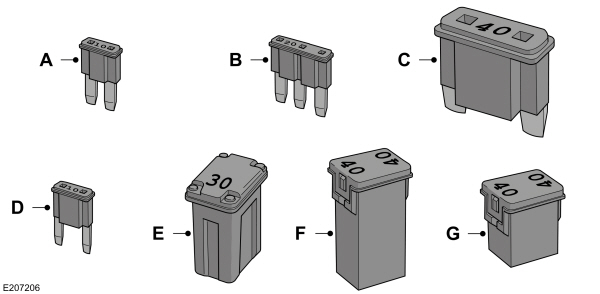

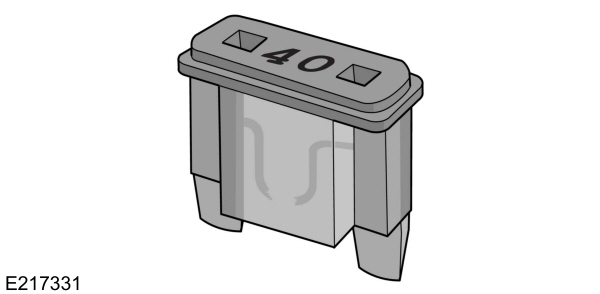

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
