2018 Ford GT Fuse Box Diagram

FUSE SPECIFICATION CHART

Front Power Distribution Box

WARNING:  Always disconnect the battery before servicing high current fuses.    WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

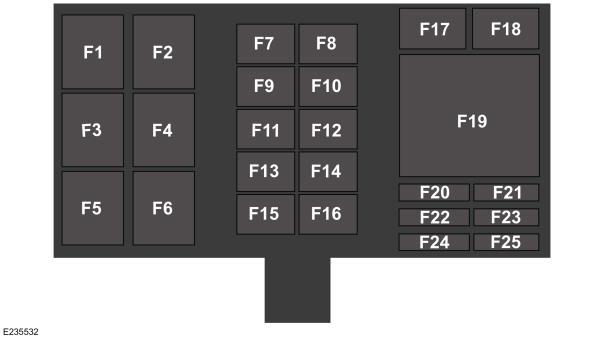

The front power distribution box is under the front hood.   See   Under Hood Overview.  It has high-current fuses that protect your vehicle’s main electrical systems from overloads. There are also high-current fuses next to the front power distribution box. If replacement of these high-current fuses is required, see an authorized dealer.If you disconnect and reconnect the battery, you will need to reset some features.   See   Changing the 12V Battery.

Fuse or Relay Number	Fuse Rating	Protected Components
1	—	Vehicle dynamics module relay.
2	—	Radiator fan 1 relay.
3	—	HVAC blower relay.
4	—	Wipers relay.
5	—	Radiator fan 2 relay.
6	—	Horn relay.
7	50A1	Body control module.
8	—	Shunt.
9	40A1	Vacuum pump.
10	25A1	Wiper.
11	40A1	Radiator fan 2.
12	50A1	Body control module.
13	60A1	Body control module.
14	40A1	Radiator fan 1.
15	40A1	HVAC Blower.
16	40A1	Antilock brake system.
17	40A1	Antilock brake system.
18	30A1	Body control module.
19	—	Vacuum pump relay.
20	5A2	Vehicle dynamics module.
21	20A2	Left headlamp.
22	5A2	Antilock brake system.
23	20A2	Horn.
24	20A2	Electronic door system.
25	20A2	Right headlamp.

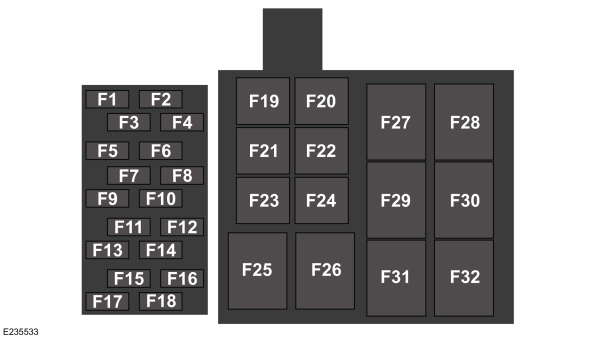

¹J-case low profile fuse.²Mini fuse.Rear Power Distribution Box 1The rear power distribution box is in the engine compartment.   See   Under Hood Overview.  It has high-current fuses that protect your vehicle’s main electrical systems from overloads. These are in the right side of the engine compartment behind an access door in the engine surround panel. If replacement of these high-current fuses is required, see an authorized dealer.If you disconnect and reconnect the battery, you will need to reset some features.   See   Changing the 12V Battery

Fuse or Relay Number	Fuse Rating	Protected Components
1	15A3	Vehicle power 3.
2	5A3	Mass airflow.
3	10A3	Engine control module.
4	5A3	Transmission control module.
5	20A3	Vehicle power 1.
6	5A3	Keep alive power.
7	—	Not used.
8	5A3	Rear video camera.
9	—	Not used.
10	10A3	Alternator sense.
11	10A3	Air conditioner.
12	10A3	Damper.
13	15A3	Vehicle power 4.
14	—	Not used.
15	5A3	Battery backup sounder.
16	5A3	Engine control module.   Run/start.
17	20A3	Vehicle power 2.
18	15A3	Injector.
19	30A45	Fuel pump 1.
20	30A45	Fuel pump 2.
21	30A45	Transmission control module.
22	30A45	Starter.
23	30A45	Charge air cooler fan.
24	—	Shunt.
25	—	Charge air cooler fan relay.
26	—	Not used.
27	—	Fuel pump 1 relay.
28	—	AC clutch relay.
29	—	Starter relay.
30	—	Fuel injection relay.
31	—	Fuel pump 2 relay.
32	—	Engine control module relay.

³Mini fuse.⁴J-case low profile fuse.Rear Power Distribution Box 2The rear power distribution box is in the engine compartment.   See   Under Hood Overview.  It has high-current fuses that protect your vehicle’s main electrical systems from overloads. These are in the right side of the engine compartment behind an access door in the engine surround panel. If replacement of these high-current fuses is required, see an authorized dealer.If you disconnect and reconnect the battery, you will need to reset some features.   See   Changing the 12V Battery.

Fuse or Relay Number	Fuse Rating	Protected Components
1	—	Transmission gear fluid cooler fan relay.
2	—	Engine oil cooler fan relay.
3	—	Transmission clutch fluid cooler fan relay.
4	—	Not used.
5	—	Not used.
6	—	Not used.
7	20A45	Engine oil cooler fan.
8	30A45	Transmission clutch fluid cooler fan.
9	20A45	Transmission gear fluid cooler fan.
10	—	Not used.

⁵J-case low profile fuse.

Passenger Compartment Fuse Panel

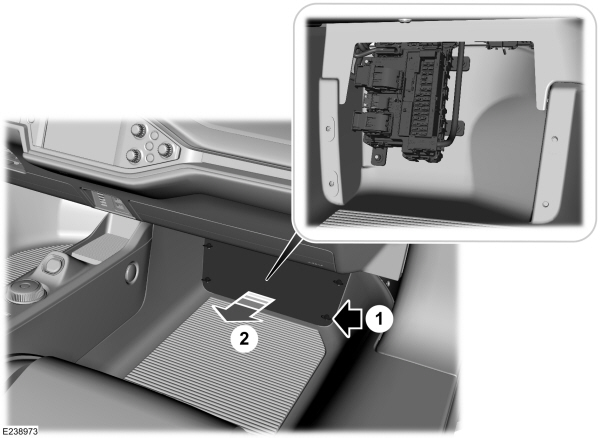

The fuse panel is in the passenger footwell behind the toeboard panel.

To remove the toeboard panel, rotate each of the four fasteners, and then pull the toeboard panel toward you. Once you remove this panel, you can access the fuse panel. After replacing a fuse, reinstall the toeboard panel and rotate the fasteners back to their original position.

Fuse or Relay Number	Fuse Rating	Protected Components
1	—	Not used.
2	7.5A6	Not used (spare).
3	20A6	Driver unlock relay.   Double lock relay.
4	5A6	Not used (spare).
5	20A6	Not used (spare).
6	10A7	Not used (spare).
7	10A7	Not used (spare).
8	10A7	Not used (spare).
9	10A7	Brake on/off (BOO) switch.
10	5A7	Push button start switch.
11	5A7	Right and left exterior door locks and handles.
12	7.5A7	RF transceiver module (RTM).
13	7.5A7	Steering column control module logic.   Smart datalink connector logic.   Instrument cluster.
14	10A7	Extended power mode (EPM) module.
15	10A7	Smart datalink connector (SDLC) power.
16	15A6	Decklid release relay.
17	5A7	Combined sensor module.
18	5A7	Telematics control unit (TCU)- Modem.
19	7.5A7	Not used (spare).
20	7.5A7	Front damper controllers.
21	5A7	Shift indicator module (HUD).   Interior temperature sensor.
22	5A7	Extended power mode module.
23	10A6	Right window switch illumination.   Right door lock switch illumination.   Left door lock switch illumination.   Power mirror/window switch (motor).   Right smart window motor (logic).   Left smart window motor (logic).
24	20A6	Central lock relay.   Central unlock relay.
25	30A6	Left smart window motor.
26	30A6	Right smart window motor.
27	30A6	Not used (spare).
28	20A6	Electronic steering column lock (relay supply).
29	30A6	Not used (spare).
30	30A6	Not used (spare).
31	15A6	Not used (spare).
32	10A6	SYNC.   Audio on/off switch.   Gear shift module (GSM).   HVAC ECU power.
33	20A6	Audio control module (ACM).
34	30A6	Run-start relay (R12).
35	5A6	Steering angle sensor (SSAM).
36	15A6	Auxiliary power point.
37	20A6	Battery junction box (BJB) F60, F62, F64, F66, F65.
38	—	Not used.

⁶Micro 2 fuse.

⁷Micro 3 fuse.

CHANGING A FUSE

Fuses

WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile

To download the complete user manual, please download the following file:

https://www.fordservicecontent.com/Ford_Content/vdirsnet/OwnerManual/Home/Index?Variantid=6382&languageCode=EN&countryCode=USA&marketCode=US&bookcode=O48452&VIN=&userMarket=usa&div=f
