FUSE BOX LOCATIONS
Engine Compartment Fuse BoxThis fuse box is located in the engine compartment See Under Hood Overview.
Passenger Compartment Fuse Box

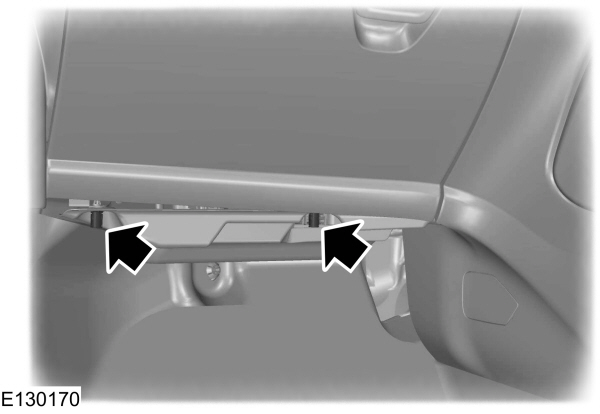

- Pinch the retaining clips to release the cover.

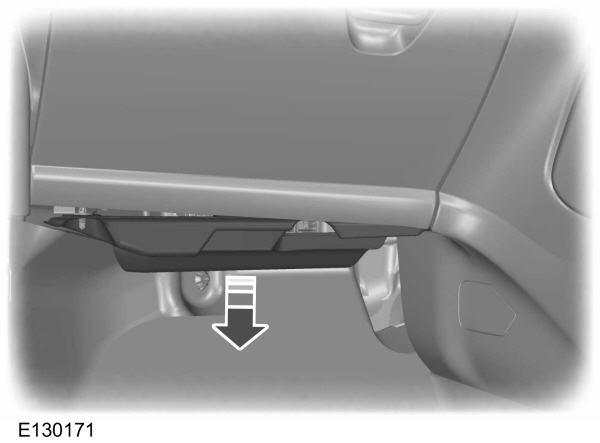

- Lower the fuse box cover and pull it toward you.
Install in the reverse order.
Luggage Compartment Fuse Box
FUSE SPECIFICATION CHART
Pre-fuse BoxYour vehicle has a pre-fuse box located in the electric motor compartment on the front of the 12 volt battery box. It is connected to the 12 volt battery positive terminal. This fuse box contains several high current fuses. If replacement of these high current fuses is required, contact an authorized dealer.
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| F1 | 80A | Electronic power assist steering. |
| F2 | 150A | DC/DC converter. |
| F3 | 100A | Power distribution box. |
| F4 | 50A | Body control module (KL30A supply). |
| F5 | 70A | High voltage battery coolant element one and two. |
| F6 | 70A | Load compartment fuse box. |
| F7 | – | Not used. |
| F8 | 50A | Electric fan control module. |
| F9 | 50A | Body control module (KL30B supply). |
| F10 | 40A | High voltage battery coolant element three. |
Electric Motor Compartment Fuse Box
 WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.Always disconnect the battery before servicing high current fuses. |
This fuse box contains several high current fuses that protect your vehicle’s main electrical systems from overloads.If the 12 volt battery is disconnected and reconnected, some features need to be reset.
Lift the release lever at the rear of the cover to remove it.
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| F7 | 40A** | Anti-lock brake system. Stability control (KL30V). |
| F8 | 30A** | Anti-lock brake system. Stability control (KL30P). |
| F9 | – | Not used. |
| F10 | 40A** | Blower motor module. |
| F11 | 40A** | Brake vacuum pump relay. |
| F12 | 40A** | Electric motor control relay. |
| F13 | 40A** | Battery charging control module. |
| F14 | 40A** | Coolant heater one. |
| F15 | 30A** | Body control module (KL30C supply). |
| F16 | 40A** | Coolant heater two. |
| F17 | – | Not used. |
| F18 | 20A** | Windshield wiper. |
| F19 | 5A* | Anti-lock brake system. Stability control (KL15). |
| F20 | 15A* | Horn. |
| F21 | 5A* | Stop lamp switch. |
| F22 | 15A* | Battery monitoring system. |
| F23 | 5A* | Relay coils. |
| F24 | 5A* | Lighting control switch module. |
| F25 | – | Not used. |
| F26 | 10A* | Powertrain control module. |
| F27 | 15A* | Charge port light ring. |
| F28 | 5A* | Vacuum pump monitor. |
| F29 | – | Not used. |
| F30 | 5A* | Transmission control module (12V supply). |
| F31 | 10A* | Smart data link/on-board diagnostic connector. |
| F32 | 10A* | Coolant valve. Air conditioning solenoid. Chiller solenoid. |
| F33 | 10A* | Powertrain control module. A/C compressor PSR feedback. |
| F34 | 15A* | High voltage battery. |
| F35 | 5A* | Electric vehicle communication controller. |
| F36 | 20A* | Coolant pump. |
| F37 | 5A* | Vehicle audible signal for pedestrians. |
| F38 | 15A* | Powertrain control module (KL15 supply). |
| F39 | – | Not used. |
| F40 | 5A* | Electronic power assist steering. |
| F41 | 20A* | Body control module (KL15 supply). |
| F42 | 15A* | Rear wiper motor. |
| F43 | 15A* | Daytime running light. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
| F47 | – | Not used. |
| F48 | 5A* | Mechanical relay coil. |
*Mini fuses**Cartridge fuses
| Relay Number | Protected Component |
|---|---|
| R1 | Not used. |
| R2 | Horn. |
| R3 | Not used. |
| R4 | High voltage battery. Engine control module (contactor sense). |
| R5 | Not used. |
| R6 | Not used. |
| R7 | Coolant heater element three. |
| R8 | Coolant heater element one and two. |
| R9 | Not used. |
| R10 | Brake vacuum pump. |
| R11 | Not used. |
| R12 | Electronic fan control module. |
| R13 | Blower motor. |
| R14 | Electric motor control. |
| R15 | Brake vacuum pump mechanical relay. |
| R16 | Ignition. |
Passenger Compartment Fuse Box
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| F56 | 20A | Not used (spare). |
| F57 | – | Not used. |
| F58 | – | Not used. |
| F59 | 5A | Not used (spare). |
| F60 | 10A | Interior lamp. Driver door switch pack. Glove compartment lamp. Ambient lighting lamp. |
| F61 | 20A | Front cigar lighter socket. Rear auxiliary power points. |
| F62 | 5A | Not used (spare). |
| F63 | – | Not used. |
| F64 | – | Not used. |
| F65 | 10A | Luggage compartment lid release. |
| F66 | 20A | Not used (spare). |
| F67 | 7.5A | Global positioning sensor. SYNC module. |
| F68 | – | Not used. |
| F69 | 5A | Instrument panel cluster. |
| F70 | 20A | Not used (spare). |
| F71 | 7.5A | Air conditioning. |
| F72 | 7.5A | Steering wheel control module. |
| F73 | 7.5A | Smart data link module. |
| F74 | 15A | High beam headlamp. |
| F75 | 15A | Not used (spare). |
| F76 | 10A | Reversing lamp. |
| F77 | 20A | Washer pump. |
| F78 | 5A | Push button ignition switch. Keyless vehicle module (supply). |
| F79 | 15A | Audio unit. Hazard flasher switch. |
| F80 | 20A | Not used (spare). |
| F81 | 5A | Radio frequency receiver. |
| F82 | 20A | Ground fuse (front washer pump relay supply). Ground fuse (rear washer pump relay supply). |
| F83 | 20A | Ground fuse (central lock supply). Ground fuse (central unlock supply). |
| F84 | 20A | Ground fuse (driver door unlock relay supply). Ground fuse (central/double lock relay supply). Ground fuse ( release relay supply). |
| F85 | 7.5A | Heated seats (ignition sense). |
| F86 | 10A | Restraint system. Passenger airbag deactivation switch. Occupant weight sensor. |
| F87 | 15A | Not used (spare). |
| F88 | – | Not used. |
| F89 | – | Not used. |
Luggage Compartment Fuse Box
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| F1 | 5A* | Cellphone passport module. |
| F2 | – | Not used. |
| F3 | 5A* | Keyless vehicle door handles. |
| F4 | 25A* | Left-hand front power windows. Left-hand heated exterior mirror. Left-hand power door lock. |
| F5 | 25A* | Right-hand front power windows. Right-hand power door lock. Right-hand heated exterior mirror. |
| F6 | 25A* | Rear left door module (KL30 supply). |
| F7 | 25A* | Rear right door module (KL30 supply). |
| F8 | 5A* | Ignition relay. |
| F9 | 25A* | Driver power seat. |
| F10 | 25A* | Heated rear window. |
| F11 | 5A* | High voltage battery (12V B+). |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | – | Not used. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | – | Not used. |
| F24 | – | Not used. |
| F25 | – | Not used. |
| F26 | – | Not used. |
| F27 | – | Not used. |
| F28 | – | Not used. |
| F29 | 5A* | Rear view camera. |
| F30 | 5A* | Parking assist control module. |
| F31 | – | Not used. |
| F32 | – | Not used. |
| F33 | – | Not used. |
| F34 | 15A* | Driver heated seat. |
| F35 | 15A* | Passenger heated seat. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
*Mini fuses**Cartridge fuses
| Relay Number | Protected Component |
|---|---|
| R1 | Air conditioning control module. Heated front seats. Rear view camera. Parking assist control module. |
| R2 | Heated rear window. |
| R3 | Rear window wiper. |
| R4 | Not used. |
| R5 | Not used. |
| R6 | Not used. |
CHANGING A FUSE
Fuses
| WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Fuse Types
| Callout | Fuse Type |
|---|---|
| A | Micro 2 |
| B | Micro 3 |
| C | Maxi |
| D | Mini |
| E | M Case |
| F | J Case |
| G | J Case Low Profile |
