2016 Ford Focus Electric Fuse Box Diagram

Pre-Fuse Box

Your vehicle has a pre-fuse box located in the electric motor compartment on the front of the 12 volt battery box. It is connected to the 12 volt battery positive terminal. This fuse box contains several high current fuses. If replacement of these high current fuses is required, contact an authorized dealer.

Fuse  Fuse rating  Circuits protected
F1  80A  Electronic power assist steering.
F2  150A  DC/DC converter.
F3  100A  Power distribution box.
F4  50A  Body control module (KL30A supply).
F5  70A  High voltage battery coolant element one and two.
F6  70A  Load compartment fuse box.
F7  –  Not used.
F8  50A  Electric fan control module.
F9  50A  Body control module (KL30B supply).
F10  40A  High voltage battery coolant element three.

Electric Motor Compartment Fuse Box

WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. Always disconnect the 12 volt battery before servicing high current fuses.

This fuse box contains several high current fuses that protect your vehicle’s main electrical systems from overloads.If the 12 volt battery is disconnected and reconnected, some features need to be reset.

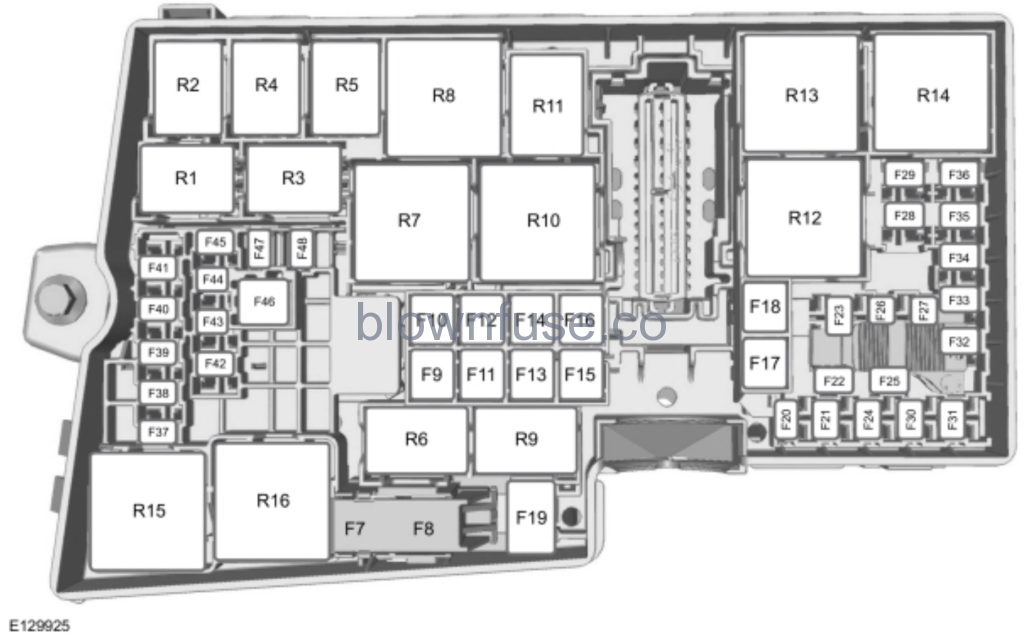

2016 Ford Focus Electric Motor Compartment Fuse Box Diagram
Lift the release lever at the rear of the cover to remove it.
Fuse  Fuse rating  Circuits protected
F7  40A**  Anti-lock brake system.   Stability control (KL30V).
F8  30A**  Anti-lock brake system.   Stability control (KL30P).
F9  –  Not used.
F10  40A**  Blower motor module.
F11  40A**  Brake vacuum pump.
F12  40A**  Electric motor control relay.
F13  40A**  Battery charging control module.
F14  40A**  Coolant heater one.
F15  30A**  Body control module (KL30C supply).
F16  40A**  Coolant heater two.
F17  –  Not used.
F18  20A**  Windshield wiper.
F19  5A*  Anti-lock brake system.   Stability control (KL15).
F20  15A*  Horn.
F21  5A*  Stop lamp switch.
F22  15A*  Battery monitoring system.
F23  5A*  Relay coils.
F24  5A*  Lighting control switch module.
F25  –  Not used.
F26  10A*  Powertrain control module.
F27  15A*  Charge port light ring.
F28  5A*  Vacuum pump monitor.
F29  –  Not used.
F30  5A*  Transmission control module (12V supply).
F31  10A*  Smart data link/on-board diagnostic connector.
F32  10A*  Coolant valve.   Air conditioning solenoid.   Chiller solenoid.
F33  10A*  Powertrain control module.   A/C compressor PSR feedback.
F34  15A*  High voltage battery.
F35  –  Not used.
F36  20A*  Coolant pump.
F37  5A*  Vehicle audible signal for pedestrians.
F38  15A*  Powertrain control module (KL15 supply).
F39  –  Not used.
F40  5A*  Electronic power assist steering.
F41  20A*  Body control module (KL15 supply).
F42  15A*  Rear wiper motor.
F43  15A*  Daytime running light.
F44  –  Not used.
F45  –  Not used.
F46  –  Not used.
F47  –  Not used.
F48  5A*  Mechanical relay coil.

*Mini fuses**Cartridge fuses

Relay  Relay Type  Circuit switched
R1  –  Not used.
R2  Micro relay  Horn.
R3  –  Not used.
R4  Micro relay  High voltage battery.   Engine control module (contactor sense).
R5  –  Not used.
R6  –  Not used.
R7  Power relay  Coolant heater element three.
R8  Power relay  Coolant heater element one and two.
R9  –  Not used.
R10  Mini relay  Brake vacuum pump.
R11  –  Not used.
R12  Power relay  Electronic fan control module.
R13  Mini relay  Blower motor.
R14  Mini relay  Electric motor control.
R15  Power relay  Brake vacuum pump mechanical relay.
R16  Power relay  Ignition.

Passenger Compartment Fuse Box

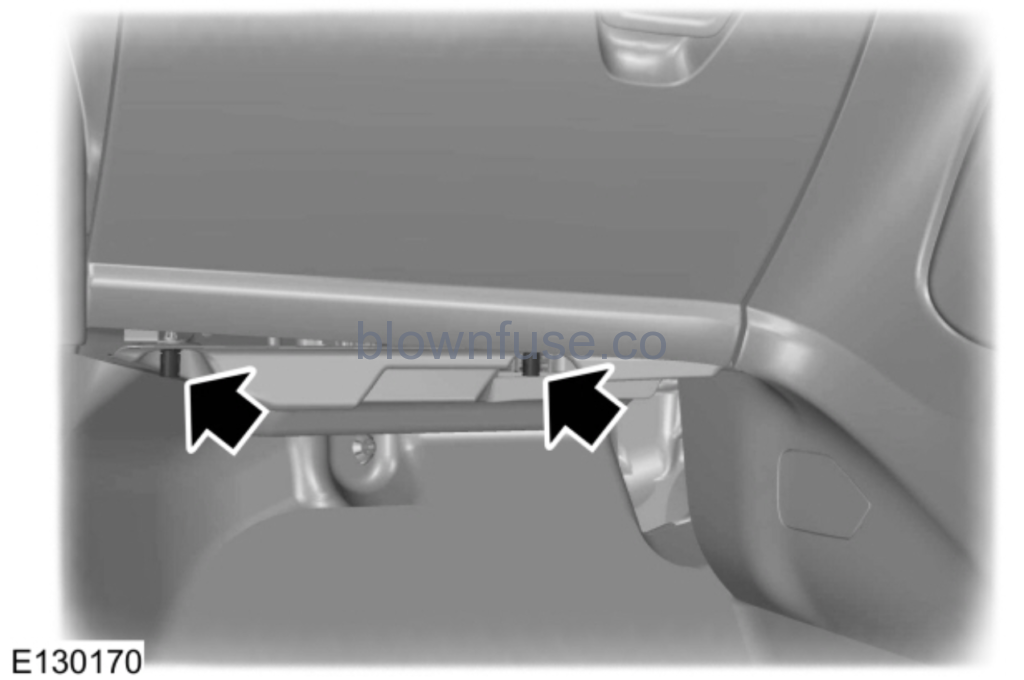

  1. Pinch the retaining clips to release the cover.

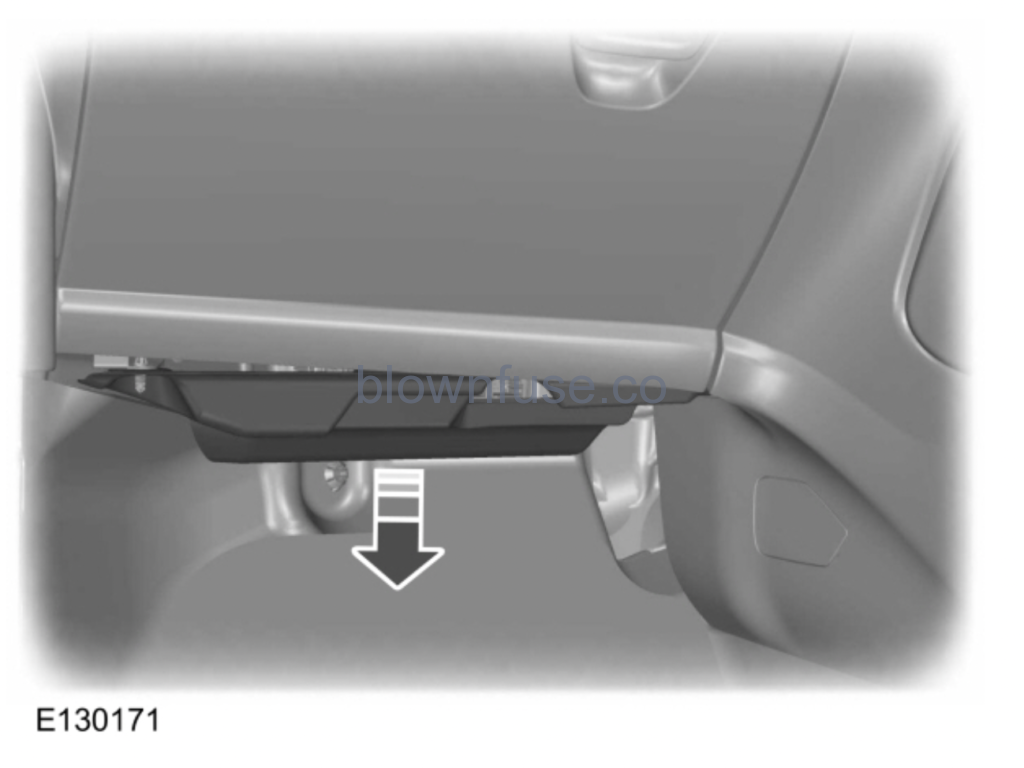

  2. Lower the fuse box cover and pull it toward you.
2016 Ford Focus Electric passenger Fuse Box Diagram
2016 Ford Focus Electric Fuse Box location

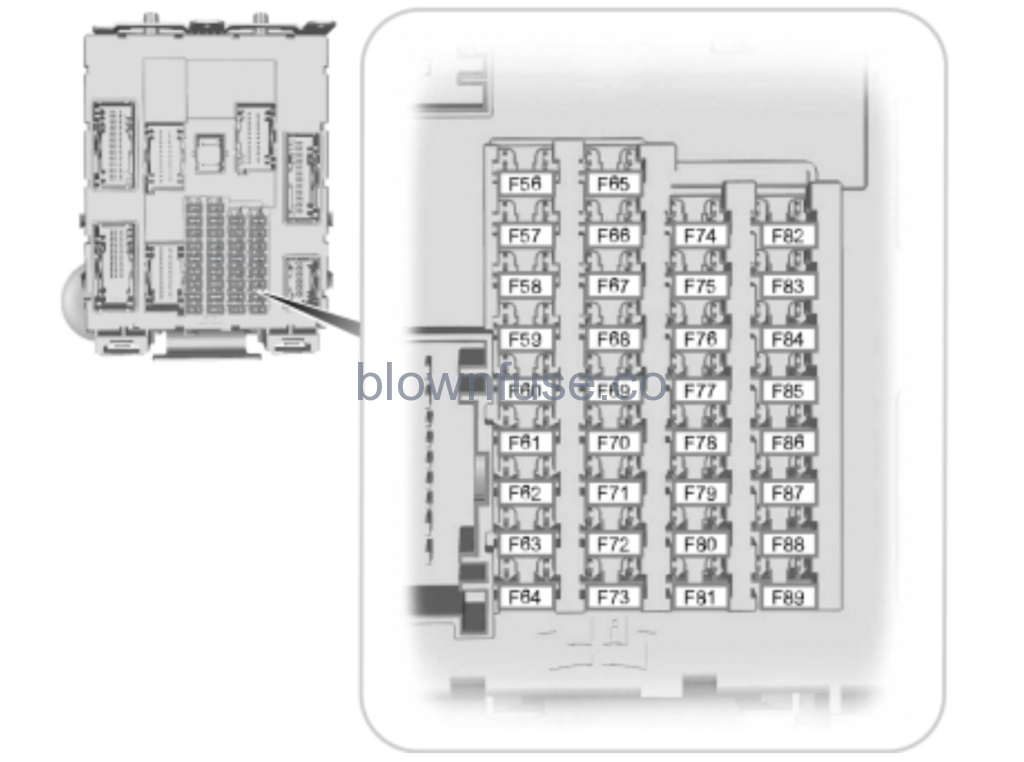

2016 Ford Focus Electric passenger Fuse Box Diagram

Install in the reverse order.

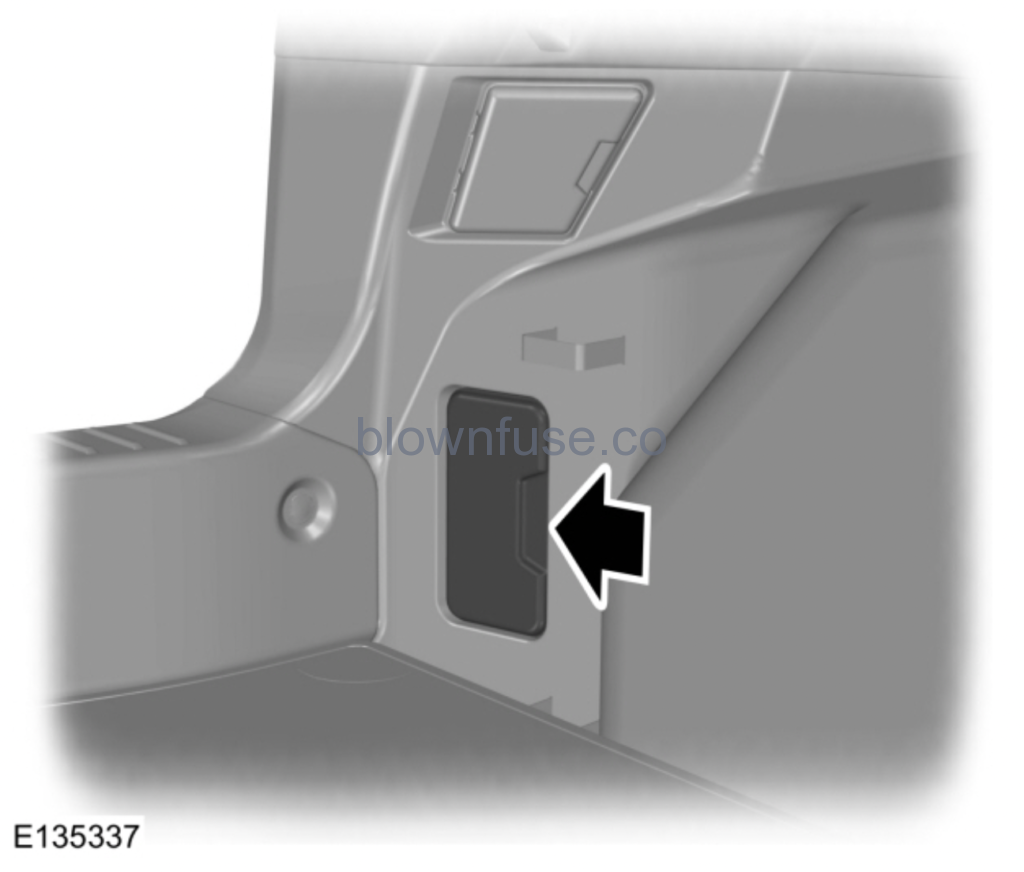

Luggage Compartment Fuse Box

2016 Ford Focus Electric Luggage Fuse Box Diagram
2016 Ford Focus Electric Luggage Fuse Box Diagram
Fuse  Fuse rating  Circuits protected
F1  5A*  Cellphone passport module.
F2  –  Not used.
F3  5A*  Keyless vehicle door handles.
F4  25A*  Front power window (left).   Central locking (front left).   Heated exterior mirror (left).
F5  25A*  Front power window (right).   Central locking (front right).   Heated exterior mirror (right).
F6  25A*  Rear left door module (KL30 supply).
F7  25A*  Rear right door module (KL30 supply).
F8  5A*  Ignition relay.
F9  25A*  Driver power seat.
F10  25A*  Heated rear window.
F11  5A*  High voltage battery (12V B+).
F12  –  Not used.
F13  –  Not used.
F14  –  Not used.
F15  –  Not used.
F16  –  Not used.
F17  –  Not used.
F18  –  Not used.
F19  –  Not used.
F20  –  Not used.
F21  –  Not used.
F22  –  Not used.
F23  –  Not used.
F24  –  Not used.
F25  –  Not used.
F26  –  Not used.
F27  –  Not used.
F28  –  Not used.
F29  5A*  Rear view camera.
F30  5A*  Parking aid module.
F31  –  Not used.
F32  –  Not used.
F33  –  Not used.
F34  15A*  Driver heated seat module.
F35  15A*  Passenger heated seat module.
F36  –  Not used.
F37  –  Not used.
F38  –  Not used.
F39  –  Not used.
F40  –  Not used.
F41  –  Not used.
F42  –  Not used.
F43  –  Not used.
F44  –  Not used.
F45  –  Not used.
F46  –  Not used.

*Mini fuses**Cartridge fuses

Relay  Relay Type  Circuit switched
R1  Power relay  Rear KL15E.
R2  Mini relay  Heated rear window.
R3  Micro relay  Rear window wiper.
R4  –  Not used.
R5  –  Not used.
R6  –  Not used.

2016 Ford Focus Electric Owners Manual

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
