2019 Ford Flex Fuse Box Diagram

Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is in the engine compartment. It has high-current fuses that protect the vehicle’s main electrical systems from overloads.If you disconnect and reconnect the battery, you will need to reset some features.

2019 Ford Flex Engine Fuse Box Diagram
Fuse or Relay Number  Fuse Amp Rating  Protected Components
1  40A1  Fan relay 2.
2  40A1  Fan relay 1.
3  30A1  Trailer brake control module.
4  30A1  Wipers.   Washer pump.
5  50A1  Anti-lock brake system pump.
6  20A1  Center console power point (without rear park aid).
7  30A1  Power liftgate.
8  20A1  Moonroof.
9  20A1  Second row console power point.
10  Relay  Third row power seats relay.
11  Relay  Heated rear window relay.
12  Relay  Trailer tow battery charge relay.
13  Relay  Starter motor relay.
14  Relay  Cooling fan number 2 relay.
15  Relay  Fuel pump relay.
16  –  Not used.
17  30A1  110V AC power point.
18  40A1  Front blower motor relay.
19  30A1  Starter relay.
20  20A1  Storage bin power point.
21  20A1  Instrument panel power point / cigar lighter.
22  30A1  Third row seat module.
23  30A1  Driver power seat.   Memory module.
24  30A1  Trailer tow battery charge.
25  –  Not used.
26  40A1  Rear window defroster.   Heated mirrors.
27  20A1  Cargo power point.
28  30A1  Front heated and cooled seats.
29  20A1  Front heated seats (without cooled seats).
30  20A1  Rear heated seats.
31  25A1  Electric fan relay 3.
32  Relay  Auxiliary blower motor relay.
33  Relay  Cooling fan #1 relay.
34  Relay  Front blower motor relay.
35  Relay  Cooling fan (series) relay.
36  –  Not used.
37  Relay  Trailer tow right-hand stop/turn lamps relay.
38  Relay  Trailer tow reverse lamps relay.
39  30A1  Auxiliary blower motor.
40  –  Not used.
41  –  Not used.
42  30A1  Passenger power seat.
43  20A1  Anti-lock brake system valves.
44  Relay  Windshield washer relay.
45  5A2  Rain sensor.
46  5A2  Canister vent solenoid (EcoBoost engines).
47  15A2  Washer pump.
48  10A2  Front park lamps.
49  –  Not used.
50  10A2  Heated mirrors.
51  –  Not used.
52  –  Not used.
53  Relay  Trailer tow left-hand stop/turn lamps relay.
54  –  Not used.
55  Relay  Wiper relay.
56  30A2  Fuel injectors.   Fuel pump relay.
57  20A2  Left-hand high intensity discharge headlamp.
58  10A2  Alternator sensor.
59  10A2  Brake on/off switch.
60  10A2  Trailer tow back-up lamps.
61  –  Not used.
62  10A2  A/C clutch relay.
63  15A2  Trailer tow stop/turn lamps.
64  15A2  Rear wipers.
65  –  Not used.
66  Relay  Powertrain control module – vehicle power relay.
67  20A2  Vehicle power #2 – oxygen sensor heater.   Mass airflow sensor.   Variable camshaft timing solenoid valve.   Canister vent solenoid.   Canister purge solenoid.
68  20A2  Vehicle power #4 (ignition coils).
69  20A2  Vehicle power 1 (powertrain control module).
70  15A2  Vehicle power #3 (coil) – A/C clutch relay.   Fan control relay coils 1-3.   Variable air conditioning compressor.   Auxiliary transmission warmup.   Turbo charge waste-gate control.   Electronic compressor bypass valve.   All-wheel drive module.   Positive crankcase ventilation heater.
71  –  Not used.
72  –  Not used.
73  –  Not used.
74  –  Not used.
75  –  Not used.
76  –  Not used.
77  Relay  Trailer tow park lamps relay.
78  20A2  Right high-intensity discharge headlamp.
79  –  Not used.
80  –  Not used.
81  –  Not used.
82  15A2  Rear washer.
83  –  Not used.
84  20A2  Trailer tow park lamps.
85  –  Not used.
86  5A2  Powertrain control module.   Keep alive power and relay.   Powertrain control module relay.   Canister vent solenoid (non-EcoBoost engines).
87  5A2  Run/start relay.
88  Relay  Run/start relay.
89  10A2  Anti–lock brake system module.
90  10A2  Powertrain control module run/start.
91  10A2  Adaptive cruise control module.
92  5A2  Front blower relay coil.   Power steering module.
93  5A2  Auxiliary blower motor.   Rear window defroster relay power.   Battery charge relay.
94  30A1  Body control module run/start.
95  5A2  Front passenger window switch.
96  –  Not used.
97  –  Not used.
98  Relay  A/C clutch relay.

1J Case Low Profile fuse.2Mini fuse.

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.

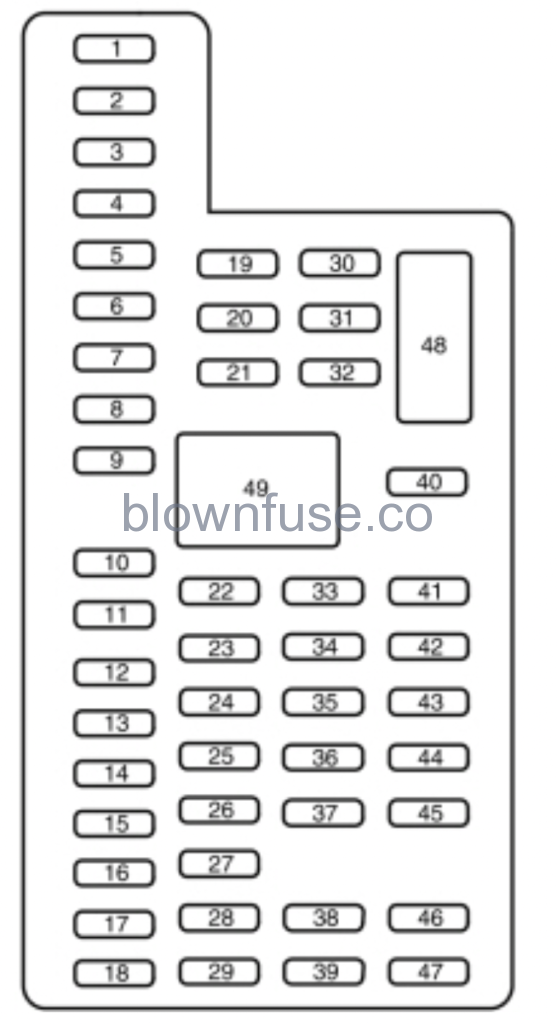

2019 Ford Flex Passenger Fuse Box Diagram
Fuse or Relay Number  Fuse Amp Rating  Protected Components
1  30A  Driver front power window.
2  15A  Memory seat.   Second row seats.
3  30A  Passenger side front window.
4  10A  Demand lamps battery saver relay.
5  20A  Audio amplifier   Active noise control module.
6  5A  Not used (spare).
7  7.5A  Driver seat module logic.   Left front door zone module.   Keypad.
8  10A  Power liftgate.
9  10A  SYNC module.   Electronic finish panel.   Radio frequency transceiver module.
10  10A  Run accessory relay.   Front wiper motor relay.
11  10A  Intelligent access module logic.   Heads-up display.
12  15A  Puddle lamp.   Backlighting LED.   Interior lighting.
13  15A  Right-hand direction indicators.
14  15A  Left-hand direction indicators.
15  15A  Center high mounted stop lamp.   Backup lamp.
16  10A  Right low beam headlamp.
17  10A  Left low beam headlamp.
18  10A  Third row power seats.   Start button.   Keypad illumination.   Brake-shift interlock.   Powertrain control module wake-up.   Anti-theft system.
19  20A  Not used (spare).
20  20A  Locks.
21  10A  Extended power module.
22  20A  Horn relay.
23  15A  Steering wheel control module logic.   Instrument cluster.
24  15A  Steering wheel control module.   Datalink.
25  15A  Liftgate release.
26  5A  Ignition switch.   Push button ignition switch.
27  20A  Intelligent access module power.
28  15A  Not used (spare).
29  20A  Radio.   Global positioning system module.
30  15A  Front park lamps.   Trailer tow relay for park lamps.   Front side markers.
31  5A  Trailer tow brake controller.
32  15A  Smart window motors.   Master window and mirror switch.   Lock switch illumination.   Moonroof.   110V AC power point.   Interior rearview mirror.
33  10A  Not used (spare).
34  10A  Reverse park aid module.   Rear heated seat module.   Blind spot monitor module.   Rear video camera.   Interior mirror.
35  5A  Climate control humidity sensor.   Heads-up display.
36  10A  Heated steering wheel.
37  10A  Refrigerator.
38  10A  Front passenger window switch.
39  15A  High beams.
40  10A  Rear park lamps.   License plate lamps.
41  7.5A  Extended power module.
42  5A  Not used (spare).
43  10A  Not used (spare).
44  10A  Not used (spare).
45  5A  Not used (spare).
46  10A  Climate control module.
47  15A  Fog lamp relay power.   Front direction indicators.
48  30A Circuit breaker  Front passenger power window.   Rear power windows.
49  Relay  Delayed accessory relay.   Body control module.

2019 Ford Flex Owners Manual

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
