2014 Ford Escape Fuse Box Diagram

Pre-Fuse Box

The pre-fuse box is in the engine compartment attached to the positive battery post. This box contains several high current fuses. If you need to replace one of these high current fuses, see an authorized dealer.Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

Power Distribution Box

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.You will need to reset some features if you disconnect and reconnect the battery.

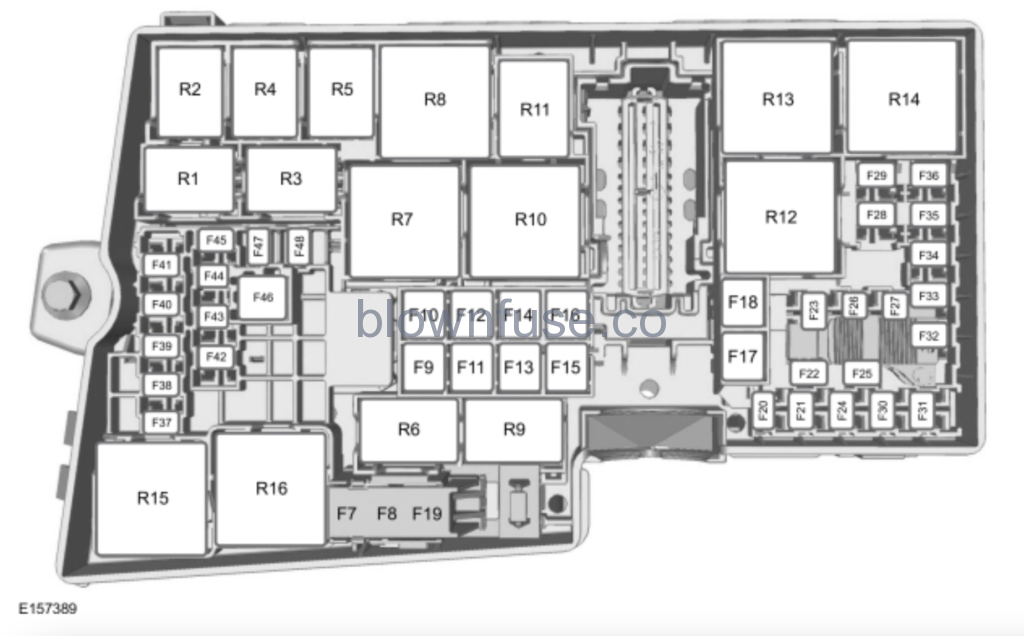

2014 Ford Escape Engine Fuse Box
Lift the release lever at the rear of the cover to remove it.
Fuse or relay number  Fuse amp rating  Protected components
F7  50A**  Anti-lock brake system and electronic stability program pump.
F8  30A**  Electronic stability program valve.
F9  —  Not used.
F10  40A**  Heater blower motor.
F11  30A**  Body control module feed.
F12  30A**  Powertrain control module relay fuse.
F13  30A**  Starter relay.
F14  25A**  Rear power window (without door control unit).
F15  20A**  Front cigar lighter or power outlet.
F16  25A**  Front power window (without door control unit).
F17  20A**  Rear power outlet.
F18  20A**  Center power outlet.
F19  5A*  Anti-lock brake system and electronic stability program 15 feed.
F20  15A*  Horn.
F21  5A*  Stop light switch.
F22  15A*  Battery monitor system.
F23  5A*  Relay coils.
F24  5A*  Light switch module.
F25  10A*  Power exterior mirror (without door control unit).
F26  5A*  Keep-alive power
F27  15A*  Air conditioner clutch.
F28  10A*  Vehicle power – fuel injector (2.5L engine).
F29  25A*  Rear window defroster.
F30  —  Not used.
F31  —  Not used.
F32  15A*  Vehicle power.
F33  10A*  Vehicle power 2.
F34  10A*  Vehicle power 3.
F35  15A*  Vehicle power 4.
F36  5A*  Active grill shutters.
F37  10A*  Occupant classification sensor, Passenger airbag deactivation indicator feed.
F38  5A*  Engine control module and transmission control module ignition feed.
F39  5A*  Daytime running lamps and headlamp control module ignition feed.
F40  5A*  Electronic power assist steering 15 feed.
F41  20A*  Body control module 15 feed.
F42  15A*  Rear wiper.
F43  15A*  Headlamp control module supply.
F44  15A*  Front fog daytime running lamps.
F45  —  Not used.
F46  40A**  Smart wiper motor modules.
F47  —  Not used.
F48  5A*  Keypad.
R1  —  Not used.
R2  Micro relay  Horn.
R3  —  Not used.
R4  Micro relay  Front fog daytime running lamps.
R5  —  Not used.
R6  —  Not used.
R7  —  Not used.
R8  Power relay  Delayed accessory relay.
R9  —  Not used.
R10  Mini relay  Starter relay.
R11  Micro relay  Air conditioner clutch.
R12  Power relay  Cooling fan.
R13  Mini relay  Heater blower.
R14  Mini relay  Engine control relay.
R15  Power relay  Heated rear window.
R16  Power relay  Ignition 15.

*Mini fuses **Cartridge fuses

Passenger Compartment Fuse Panel

The fuse panel is on the right side below the glove box.

2014 Ford Escape Passenger Fuse Box

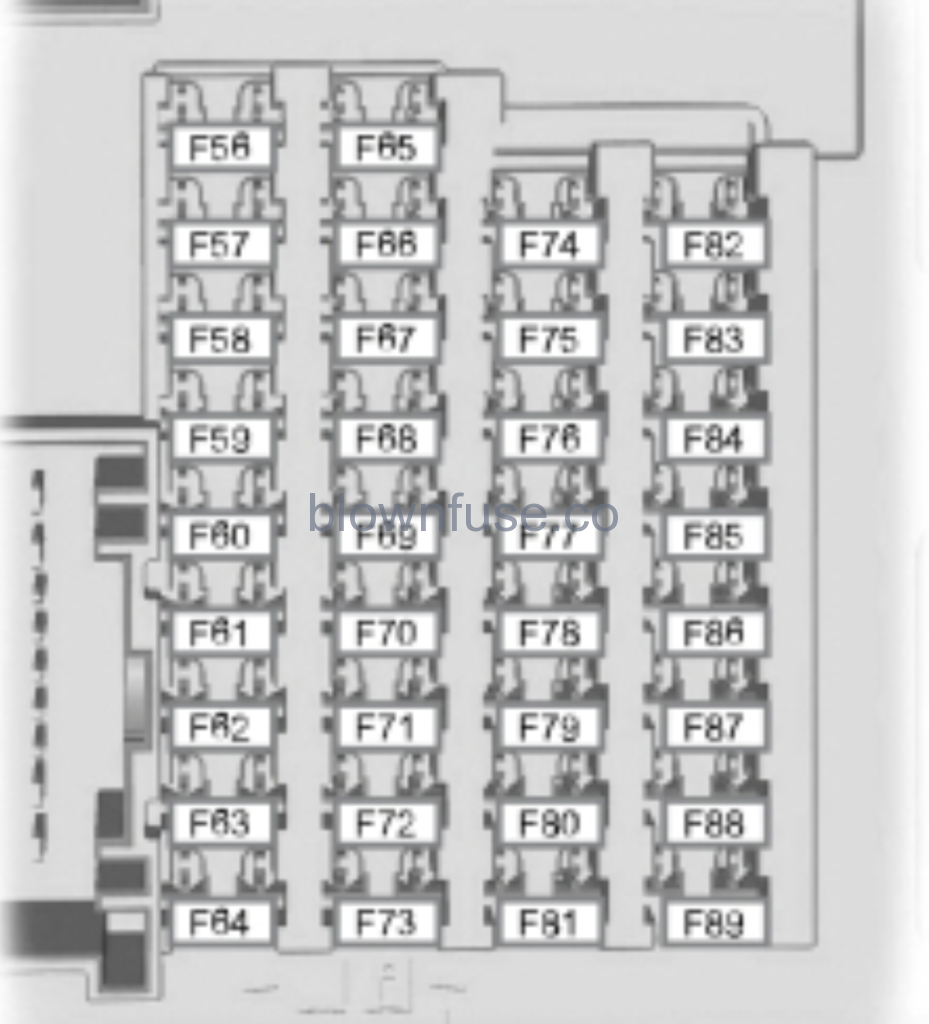

2014 Ford Escape Passenger Fuse Box Numbers
Fuse or relay number  Fuse amp rating  Protected components
F56  20A  Fuel pump supply, Air mass meter.
F57  —  Not used.
F58  5A  Not used (spare).
F59  5A  Passive anti-theft transceiver.
F60  10A  Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank.
F61  20A  Cigar lighter, Power point.
F62  5A  Rain sensor module, Auto-dimming mirror.
F63  10A  Not used (spare).
F64  —  Not used.
F65  10A  Liftgate release.
F66  20A  Driver door unlock supply.
F67  7.5A  SYNC, Multifunction display, Global positioning system module.
F68  —  Not used.
F69  5A  Instrument cluster.
F70  20A  Central lock and unlock supply.
F71  10A  Heating control head (manual air conditioner), Dual electronic automatic temperature control.
F72  7.5A  Steering wheel module.
F73  7.5A  Data link connector.
F74  15A  High beam headlamp supply.
F75  15A  Fog lamp supply.
F76  10A  Reversing lamp supply.
F77  20A  Washer pump.
F78  5A  Ignition switch, Start button.
F79  15A  Radio, Navigation DVD player, Touch screen, Hazard light switch, Door lock switch.
F80  20A  Moonroof.
F81  5A  Radio frequency receiver.
F82  20A  Washer pump ground.
F83  20A  Central locking ground.
F84  20A  Drive door unlock ground.
F85  7.5A  Electronic 15 feed.
F86  10A  Air bag module, Occupant classification system, Passenger air bag deactivation indicator.
F87  7.5A  Not used (spare).
F88  25A  Supply for F67, F69, F71 and F79.
F89  —  Not used.

Luggage Compartment Fuse Panel

The fuse panel is in the luggage compartment behind the passenger side wheel well. Remove the fuse panel cover to gain access to the fuses.

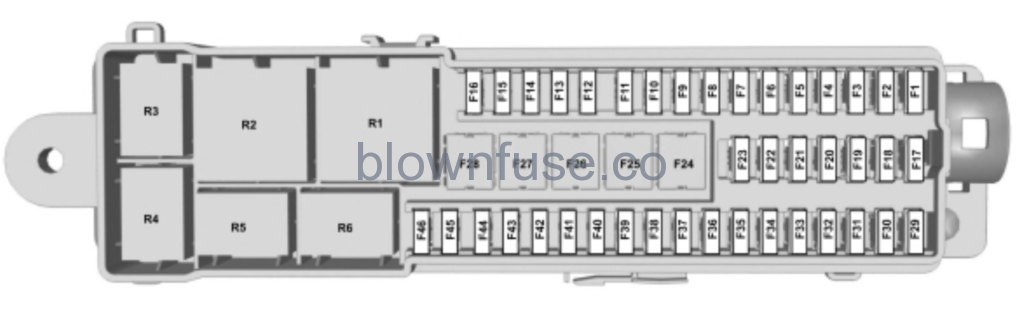

2014 Ford Escape Luggage Compartment Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
F1  5A  Hands-free liftgate entry module.
F2  10A  Keyless vehicle module.
F3  5A  Keyless vehicle door handles.
F4  25A  Door control unit front left.
F5  25A  Door control unit front right.
F6  25A  Door control unit rear left.
F7  25A  Door control unit rear right.
F8  25A*  Passenger seat.
F9  25A*  Driver seat.
F10  5A*  Driver seat memory module logic feed.
F11  5A*  Rear ignition coil feed.
F12  —  Not used.
F13  —  Not used.
F14  —  Not used.
F15  —  Not used.
F16  —  Not used.
F17  —  Not used.
F18  —  Not used.
F19  —  Not used.
F20  —  Not used.
F21  —  Not used.
F22  —  Not used.
F23  25A  Audio amplifier.
F24  30A**  DC/AC power converter.
F25  25A**  Power liftgate.
F26  40A**  Accessories, Trailer tow module 30 feed 1.
F27  20A**  Luggage compartment power outlet.
F28  —  Not used.
F29  5A*  Blind spot detection system, Rear view camera with park assist.
F30  5A*  Parking aid module.
F31  —  Not used.
F32  5A*  DC/AC power converter.
F33  —  Not used.
F34  20A**  Driver seat heater.
F35  20A  Passenger seat heater.
F36  —  Not used.
F37  —  Not used.
F38  —  Not used.
F39  —  Not used.
F40  —  Not used.
F41  —  Not used.
F42  —  Not used.
F43  —  Not used.
F44  —  Not used.
F45  —  Not used.
F46  —  Not used.
R1  Power relay  Rear 15 relay.
R2  —  Not used.
R3  —  Not used.
R4  —  Not used.
R5  —  Not used.
R6  —  Not used.

*Mini fuses **Cartridge fuses

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile

2014 Escape Owner’s Manual
