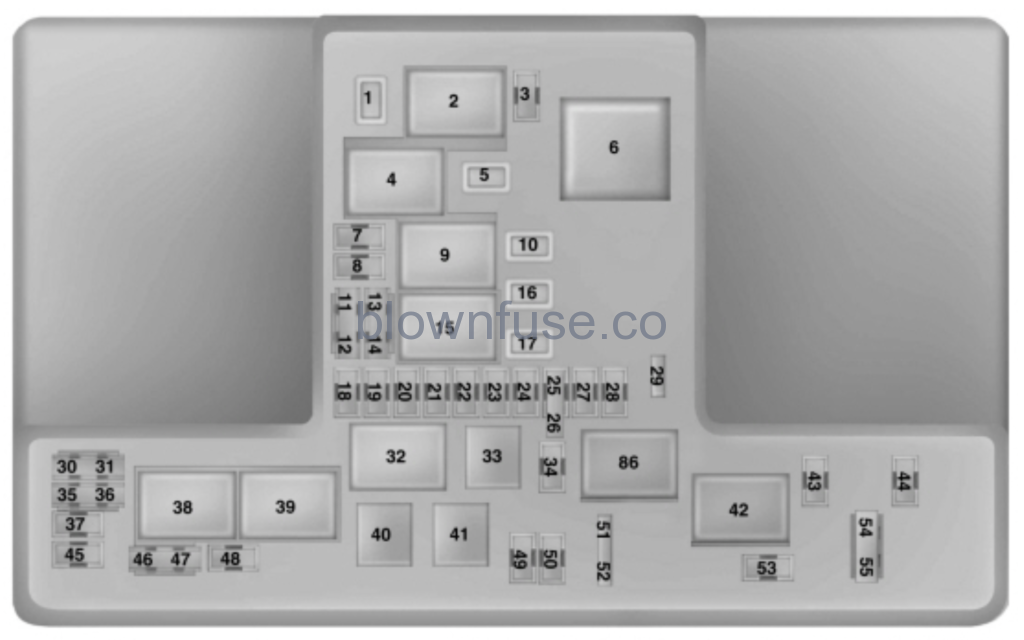

Power Distribution Box
WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
Fuse or relay number | Fuse amp rating | Protected components |
---|---|---|
1 | 30A3 | Not used (spare). |
2 | — | Starter relay. |
3 | 15A1 | Rear window wiper. Rain sensor. Rear washer pump relay coil. |
4 | — | Blower motor relay. |
5 | 20A3 | Power point 3 – back of console. |
6 | — | Not used. |
7 | 20A1 | Powertrain control module – vehicle power 1. |
8 | 20A1 | Powertrain control module – vehicle power 2. |
9 | — | Powertrain control module relay. |
10 | 20A3 | Power point 1 – driver front. |
11 | 15A2 | Powertrain control module – vehicle power 4. |
12 | 15A2 | Powertrain control module – vehicle power 3. |
13 | — | Not used. |
14 | — | Not used. |
15 | — | Run-start relay. |
16 | 20A3 | Power point 2 – console bin. |
17 | 20A3 | Power point 4 – luggage compartment. |
18 | 20A1 | RH HID headlamp. |
19 | 10A1 | Run-start electronic power assist steering. |
20 | 10A1 | Run/start lighting. Headlamp leveling switch. |
21 | 15A1 | Transmission oil pump logic power (start/stop). |
22 | 10A1 | Air conditioner clutch solenoid. |
23 | 15A1 | Run-start 6. Blind spot information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage quality module (start/stop). Front split view camera. Front split view camera module. |
24 | 10A1 | Not used (spare). |
25 | 10A2 | Run-start anti-lock brake system. |
26 | 10A2 | Run-start powertrain control module. |
27 | — | Not used. |
28 | 10A1 | Rear window washer pump. |
29 | — | Not used. |
30 | — | Not used. |
31 | — | Not used. |
32 | — | Electronic fan 1 relay. |
33 | — | A/C clutch relay. |
34 | 15A1 | Not used (spare). |
35 | — | Not used. |
36 | — | Not used. |
37 | 10A1 | Power transfer unit fan. |
38 | — | Electronic fan 2 relay. |
39 | — | Electric fan 3 relay. |
40 | — | Horn relay. |
41 | — | Not used. |
42 | — | Fuel pump relay. |
43 | 10A1 | 2nd row easy fold seat release. |
44 | 20A1 | LH HID headlamp. |
45 | — | Not used. |
46 | — | Not used. |
47 | — | Not used. |
48 | 15A1 | Steering column lock. |
49 | — | Not used. |
50 | 20A1 | Horn. |
51 | — | Not used. |
52 | — | Not used. |
53 | — | Not used. |
54 | 10A2 | Brake on-off switch. |
55 | 10A2 | ALT sensor. |
1Micro fuse.2Dual micro fuse.3M-type fuse.

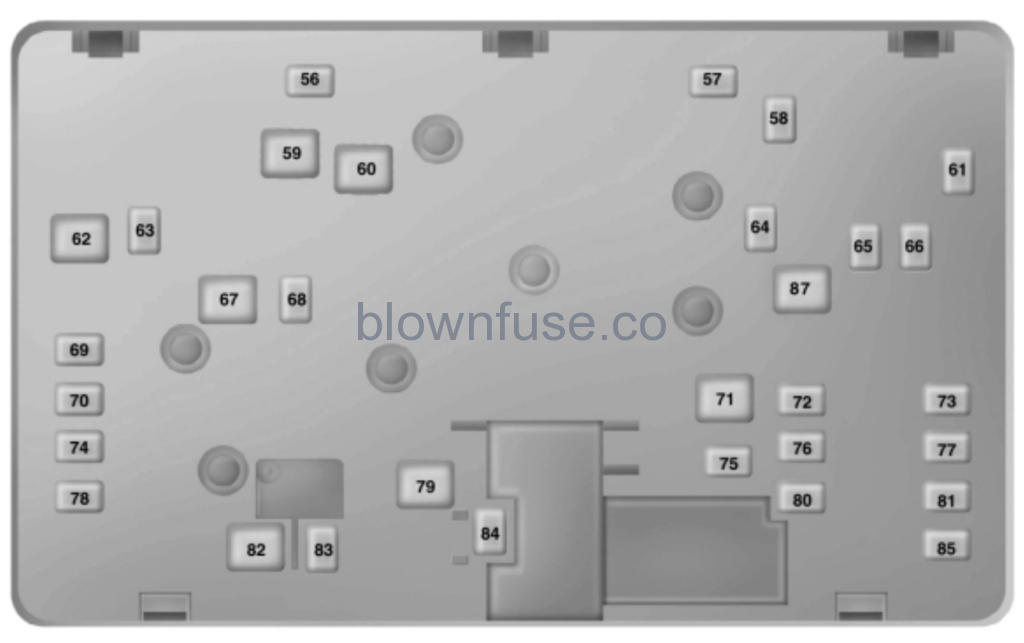

Power Distribution Box – Bottom
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
- Release the two latches, located on both sides of the fuse box.
- Raise the inboard side of the fuse box from the cradle.
- Move the fuse box toward the center of the engine compartment.
- Pivot the outboard side of the fuse box to access the bottom side.
Fuse or relay number | Fuse amp rating | Protected components |
---|---|---|
56 | — | Not used. |
57 | — | Not used. |
58 | 30A1 | Fuel pump feed. Port fuel injectors (3.5L). |
59 | 40A2 | Electronic fan 3. |
60 | 40A2 | Electronic fan 1. |
61 | — | Not used. |
62 | 50A2 | Body control module 1. |
63 | 25A1 | Electronic fan 2. |
64 | — | Not used. |
65 | 20A1 | Front heated seat. |
66 | 15A1 | Not used (spare). |
67 | 50A2 | Body control module 2. |
68 | 40A1 | Heated rear window. |
69 | 30A1 | Anti-lock brake system valves. |
70 | 30A1 | Passenger seat. |
71 | — | Not used. |
72 | 20A1 | Transmission oil pump (start/stop). |
73 | 20A1 | Rear heated seats. |
74 | 30A1 | Driver seat module. Power driver seat (less memory). |
75 | 25A1 | Wiper motor 1. |
76 | 30A1 | Power lift-gate module. |
77 | 30A1 | Climate controlled seat module. |
78 | 40A1 | Trailer lighting module. |
79 | 40A2 | Blower motor. |
80 | 25A1 | Wiper motor 2. |
81 | 40A1 | 110 volt inverter. |
82 | – | Not used. |
83 | 20A1 | Not used (spare). |
84 | 30A1 | Starter motor solenoid. |
85 | — | Not used. |
86 | – | Not used. |
87 | 60A2 | Anti-lock brake system pump. |
1 M-type fuse.2J-type fuse.
Passenger Compartment Fuse Panel
The fuse panel is located under the instrument panel to the left of the steering column.Note: It may be easier to access the fuse panel if you remove the finish trim piece.
Fuse or relay number | Fuse amp rating | Protected components |
---|---|---|
1 | – | Not used. |
2 | 7.5A1 | Memory seats. Lumbar. Driver seat module logic power. |
3 | 20A1 | Driver door unlock. |
4 | 5A1 | Not used (spare). |
5 | 20A1 | Not used (spare). |
6 | 10A2 | Not used (spare). |
7 | 10A2 | Not used (spare). |
8 | 10A2 | Not used (spare). |
9 | 10A2 | Not used (spare). |
10 | 5A2 | Keypad. Power liftgate module logic power. Hands-free liftgate actuation module. |
11 | 5A2 | Not used (spare). |
12 | 7.5A2 | Climate control module. |
13 | 7.5A2 | Instrument cluster. Steering column control module. Smart datalink connector (gateway) module. |
14 | 10A2 | Not used (spare). |
15 | 10A2 | Datalink power. |
16 | 15A1 | Not used (spare). |
17 | 5A2 | Not used (spare). |
18 | 5A2 | Push button start switch. |
19 | 7.5A2 | Not used (spare). |
20 | 7.5A2 | Not used (spare). |
21 | 5A2 | Humidity and in–car temperature sensor. |
22 | 5A2 | Occupant classification sensor. |
23 | 10A1 | Delayed accessory (power inverter logic, moonroof logic, driver window switch power). |
24 | 20A1 | Central lock unlock. |
25 | 30A1 | Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination. |
26 | 30A1 | Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator. Front passenger switch illumination (window, lock). |
27 | 30A1 | Moonroof. |
28 | 20A1 | Amplifier. |
29 | 30A1 | Not used (spare). |
30 | 30A1 | Not used (spare). |
31 | 15A1 | Not used (spare). |
32 | 10A1 | Global positioning system. Center stack display. Voice control (SYNC). Radio transceiver module. |
33 | 20A1 | Radio. |
34 | 30A1 | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38). |
35 | 5A1 | Restraints control module. |
36 | 15A1 | Auto-dimming rear view mirror. Heated seat. Auto high beam/lane departure mirror module. Rear heated seat module logic power. |
37 | 20A1 | Heated steering wheel module. Active front steering wheel. |
38 | 30A3 | Rear power windows. Rear window switch illumination. |
1Micro fuse.2Dual micro fuse.3Circuit breaker.
2016 Ford Edge User Manual
Changing a Fuse
Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types
Callout | Fuse Type |
---|---|
A | Micro 2 |
B | Micro 3 |
C | Maxi |
D | Mini |
E | M Case |
F | J Case |
G | J Case Low Profile |
