Focus Owner’s Manual

FUSE BOX LOCATIONS

Engine Compartment Fuse Box

Passenger Compartment Fuse Box
The fuse box is below the glove compartment.

Trailer Tow Module Fuse Box – 5-Door and Wagon

The fuse box is in the luggage compartment on the right-hand side.

FUSE SPECIFICATION CHART

Engine Compartment Fuse Box

Fuse Location  Fuse Rating  Protected Component
1  40 A  Body control module.
2  30 A  Body control module.
4A  20 A  Fuel pump – diesel.
4B  20 A  Fuel pump – gasoline.
5  10 A  Data link connector.
6  15 A  Powertrain control module – gasoline.
20 A  Powertrain control module – diesel.
7  10 A  Powertrain control module.
8  15 A  Powertrain control module.
9  20 A  Powertrain control module.
10  10 A  Powertrain control module – gasoline.
11  30 A  Starter motor.
12  10 A  Air conditioning clutch.
13  40 A  Blower motor.
14  20 A  Auxiliary heater control module.
15  20 A  Horn.
16  20 A  Rear window washer pump.
17  5 A  Lumbar assembly.
18  20 A  Headlamp washer pump.
21  10 A  Headlamp leveling.
22  5 A  Electronic power assist steering.
24  10 A  Powertrain control module.
25  10 A  Front parking aid camera.   Rear view camera.   Blind spot information system.   Reverse gear.
26  15 A  Transmission control module – diesel.
27  10 A  Electronic stability control.
28  40 A  Electronic stability control valve.
29  60 A  Electronic stability control pump.
30  25 A  Driver power seat.
31  25 A  Passenger power seat.
32  20 A  Auxiliary power point.
33  20 A  Auxiliary power point.
34  20 A  Auxiliary power point.
37  20 A  Moonroof.
41  30 A  Power liftgate.
44  10 A  Stoplamp switch.
49  60 A  Cooling fan.
50  30 A  Heated back light.
54  20 A  Electronic limited slip differential – gasoline.
65  20 A  Transmission control module – diesel.
5 A  Battery electronic control module – gasoline.
68  20 A  Steering column lock.
69  30 A  Windshield wipers.
71  20 A  Rear window wiper.
75  10 A  Mass air flow and intake air temperature sensor – gasoline.
77  10 A  Windshield heated washer jets.   Heated windshield relay.
78  40 A  Left-hand heated windshield element.
79  40 A  Right-hand heated windshield element.
83  40 A  Auxiliary heater.
84  60 A  Auxiliary heater.
85  40 A  Auxiliary heater.
91  40 A  Trailer tow module.
93  5 A  Headlamps.
94  20 A  Heated seats.
110  30 A  Water-in-fuel sensor – diesel.   Diesel fuel heater.
124  5 A  Rain sensor.
126  5 A  Dosing control unit – diesel.
136  15 A  Amplifier.
137  15 A  Amplifier.
140  60 A  Glow plugs – diesel.
163  15 A  Dosing control unit pressure line heater.
164  10 A  Reductant dosage control module.
165  15 A  Tank heater – diesel.
185  20 A  Power windows.   Moonroof.

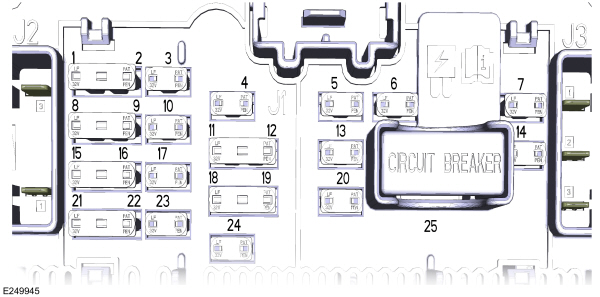

Passenger Compartment Fuse BoxMissing Image

Fuse Location  Fuse Rating  Protected Component
1  5 A  Restraints control module.
2  5 A  In-vehicle temperature and humidity sensor.
3  10 A  Parking assist control module.
4  10 A  Ignition switch.   Push button ignition switch.
5  20 A  Central locking system.
6  10 A  Moonroof.
7  30 A  Right-hand mirror switch.   Right-hand front power windows.
8  5 A  Headlamp control module.
9  5 A  Passenger airbag deactivation indicator.   Auto-dimming interior mirror.   Front parking aid camera.
10  10 A  Head up display module.   Wireless accessory charging module.
11  5 A  Telematics modem.
12  5 A  Central security module.
13  15 A  Child safety locks.   Fuel filler door.   Central locking system.
14  30 A  Left-hand mirror switch.   Left-hand front power windows.
15  15 A  Steering wheel module.
16  15 A  Adaptive damping module.
17  15 A  Voice control.   Audio unit.
18  7.5 A  Power liftgate.   Hands-free liftgate actuation module.
19  7.5 A  Battery back-up sounder.
20  10 A  Anti-theft alarm horn.
21  7.5 A  Climate control.   E-shifter module.
22  7.5 A  Steering wheel module.   Instrument cluster.   Data link connector.
23  20 A  Audio unit.
24  20 A  Not used (spare).
25  30 A  Not used (spare).

Trailer Tow Module Fuse Box – 5-Door and Wagon

Fuse Location  Fuse Rating  Protected Component
1  15 A  Ignition system.

CHANGING A FUSE

General Information:

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse.Engine Compartment Fuse Box

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
  1. Pull the latch toward you and remove the top cover.
  1. Pull the connector lever upward.
  2. Pull the connector upward to remove it.
  1. Pull both latches toward you and remove the fuse box.
  2. Turn the fuse box over and open the lid.

Passenger Compartment Fuse Box

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
  1. Fold back the carpet under the glove compartment.
  2. Carefully remove the cover.

Trailer Tow Module Fuse Box – 5-Door and Wagon

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
  1. Carefully remove the cover.
  2. Fold back the carpet.

Fuse Types

AMicro 2.
BMicro 3.
CMaxi.
DMini.
EM Case.
FJ Case.
GJ Case Low Profile.
HSlotted M Case.
