Your vehicle has three types of fuses, as described below:
Main Fuse – The main fuse takes current directly from the battery.
Primary Fuses – These fuses are between the main fuse and individual fuses, and are for electrical load groups.
Individual Fuses – These fuses are for individual electrical circuits.
For details on protected circuits, refer to the owner’s manual at the bottom of this page.

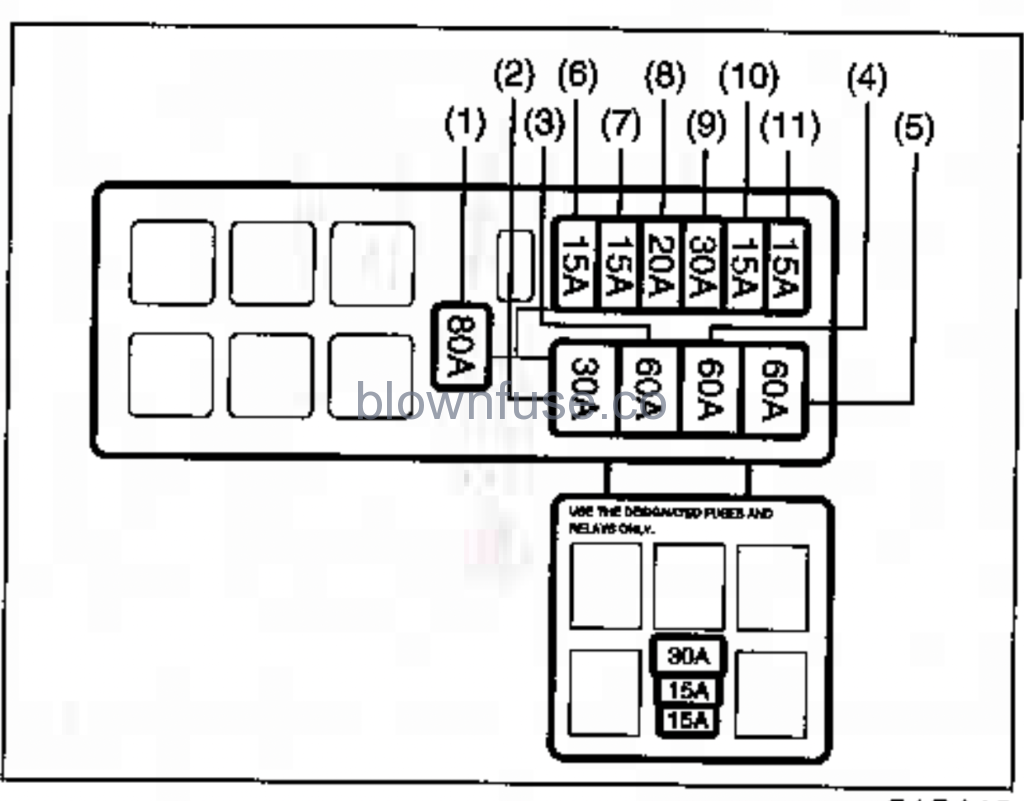

| Fuse Number | Function |
| 1 | Main Fuse |
| 2 | Heater Fuse |
| 3 | ABS Fuse (if equipped) |
| 4 | Primary Fuse |
| 5 | Primary Fuse |
| 6 | Brake Light Fuse |
| 7 | Fuel Injection System Fuse |
| 8 | A/C Fuse (if equipped) |
| 9 | Radiator Fan Motor Fuse |
| 10 | Head Light Fuse (Left) |
| 11 | Head Light Fuse (Right) |
