The wiring circuits in your 2005-2010 Pontiac G6 are protected from short circuits by a combination of fuses, circuit breakers, and fusible links. This greatly reduces the chance of damage caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating. There are three fuse blocks in your vehicle: one in the center of the instrument panel, one in the engine compartment, and one in the trunk. There is a fuse puller located on the instrument panel fuse block. It can be used to easily remove fuses from the fuse block.

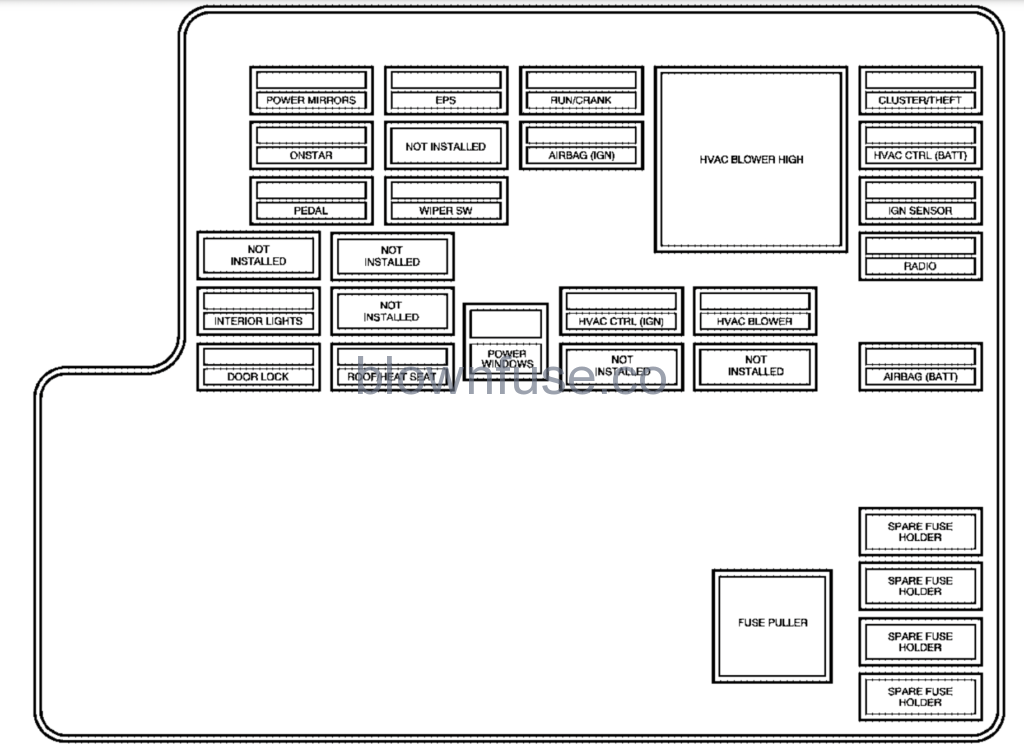

Instrument Panel Fuse Block
The instrument panel fuse block is located on the passenger’s side of your 2005-2010 Pontiac G6, on the lower portion of the instrument panel console near the floor. Remove the console cover to access the fuse block, then remove the fuse block cover to access the fuses. Your vehicle may not be equipped with all the fuses and features listed.
Name | Usage |
---|---|
POWER MIRRORS | Power Mirrors |
EPS | Electric Power Steering |
RUN/CRANK | Cruise Control Switch, Passenger Airbag Status Indicator, DSC Switch |
HVAC BLOWER HIGH | Heating Ventilation Air Conditioning Blower – High Speed Relay |
CLUSTER/ THEFT | Instrument Panel Cluster, Theft Deterrent System |
ONSTAR | OnStar |
NOT INSTALLED | Not Used |
AIRBAG (IGN) | Airbag (Ignition) |
HVAC CTRL (BATT) | Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery) |
PEDAL | Adjustable Pedals |
WIPER SW | Windshield Wiper/Washer Switch |
IGN SENSOR | Ignition Switch |
STR/WHL ILLUM | Steering Wheel Controls Backlighting |
RADIO | Audio System |
INTERIOR LIGHTS | Interior Lamps |
REAR WIPER | Not Used |
POWER WINDOWS | Power Windows (Sedan) |
HVAC CTRL (IGN) | Heating Ventilation Air Conditioning Control (Ignition) |
HVAC BLOWER | Heating Ventilation Air Conditioning Blower Switch |
DOOR LOCK | Door Locks |
ROOF/HEAT SEAT | Sunroof, Heated Seat, Power Windows (Coupe, Retractable Hardtop), Automatic Dimming Rearview Mirror, Compass |
AIRBAG (BATT) | Airbag (Battery) |
SPARE FUSE HOLDER | Spare Fuse Holder |
FUSE PULLER | Fuse Puller |

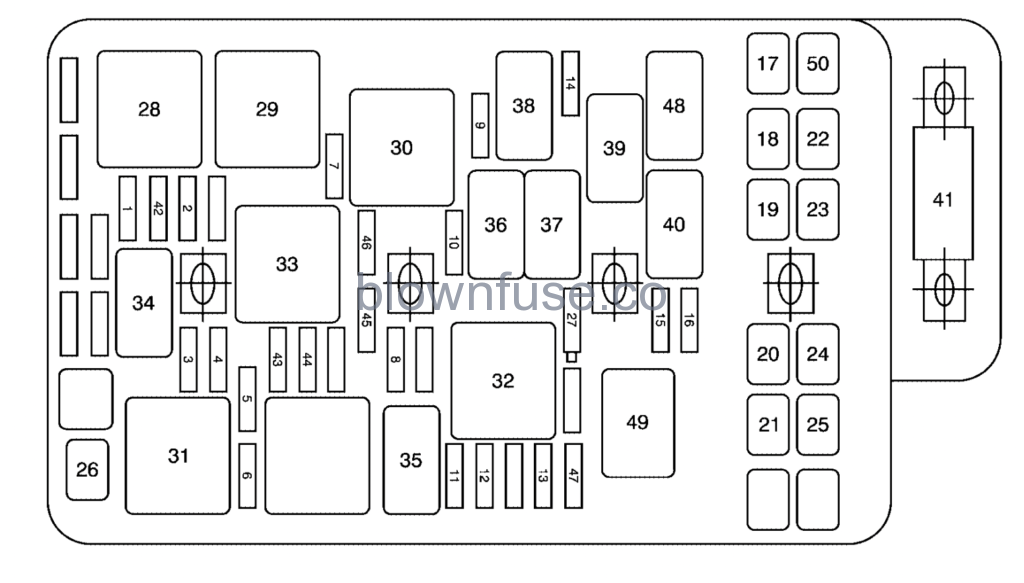

Engine Compartment Fuse Block
Your vehicle may not be equipped with all the fuses and features listed. The engine compartment fuse block is located on the driver’s side of the engine compartment, near the battery.
№ | Description |
---|---|
1 | Air Conditioner Clutch |
2 | Electronic Throttle Control |
3 | 2005-2006: Ignition 1 Module, Starter 2007-2009: Engine Control Module (IGN 1) (LZ4, LZE, LZ9) 2010: Not Used |
4 | Transmission Control Module Ignition 1 |
5 | 2005-2006: Injector 2007-2010: Mass Airflow Sensor (LY7) |
6 | Emission |
7 | Left Headlamp Low Beam |
8 | Horn |
9 | Right Headlamp Low Beam |
10 | Front Fog Lamps |
11 | Left Headlamp High Beam |
12 | Right Headlamp High Beam |
13 | Engine Control Module (Battery) (LE5, LY7) |
14 | Windshield Wiper |
15 | Antilock Brake System (IGN 1) |
16 | Engine Control Module (IGN 1) (LE5, LY7) |
17 | Cooling Fan 1 |
18 | Cooling Fan 2 |
19 | Run Relay, Heating, Ventilation, Air Conditioning Blower |
20 | Body Control Module 1 |
21 | Body Control Module Run/Crank |
22 | Rear Electrical Center 1 |
23 | Rear Electrical Center 2 |
24 | Antilock Brake System |
25 | Body Control Module 2 |
26 | Starter |
27 (Diode) | Wiper |
41 | Electric Power Steering |
42 | Transmission Control Module Battery |
43 | Ignition Module (LE5, LE9, LZ4, LZE, LZ9), Odd Cylinder Injectors/Ignition Coils (LY7) |
44 | Injectors (LE5, LE9, LZ4, LZE, LZ9), Even Cylinder Injectors/Ignition Coils (LY7) |
45 | Rear Oxygen Sensors (LZ4, LZE, LZ9, LY7) |
46 | Daytime Running Lamps |
47 | Center High-Mounted Stoplamp |
50 | Front Power Windows Coupe/ Retractable Hardtop |
51 | Engine Control Module (Battery) (LZ4, LZE, LZ9) |
52 | 2008-2010: AIR Solenoid |
54 | 2008-2010: Regulated Voltage Control |
55 | 2008-2010: Antilock Brake System (Battery) |
Relays | |
28 | Cooling Fan 1 |
29 | Cooling Fan Series/Parallel |
30 | Cooling Fan 2 |
31 | Starter |
33 | 2005-2009: Powertrain 2010: Run/Crank, Ignition |
34 | Air Conditioning Clutch |
35 | High Beam |
36 | Front Fog Lamps |
37 | Horn |
38 | Low Beam |
39 | Windshield Wiper 1 |
40 | Windshield Wiper 2 |
48 | Daytime Running Lamps |
49 | Center High-Mounted Stoplamp |
53 | 2008-2010: AIR Solenoid |

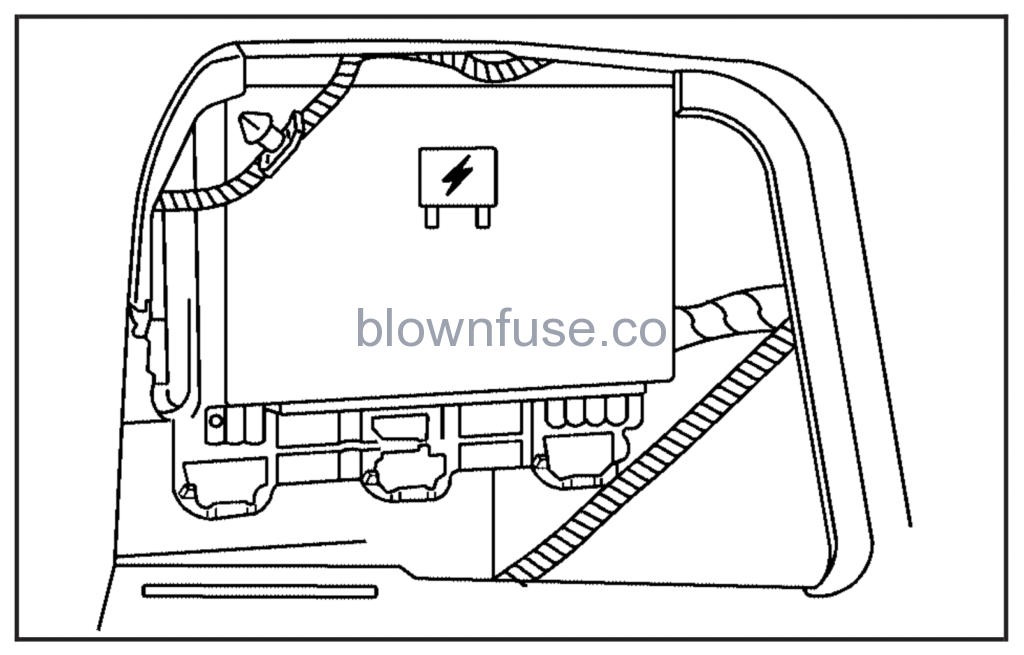

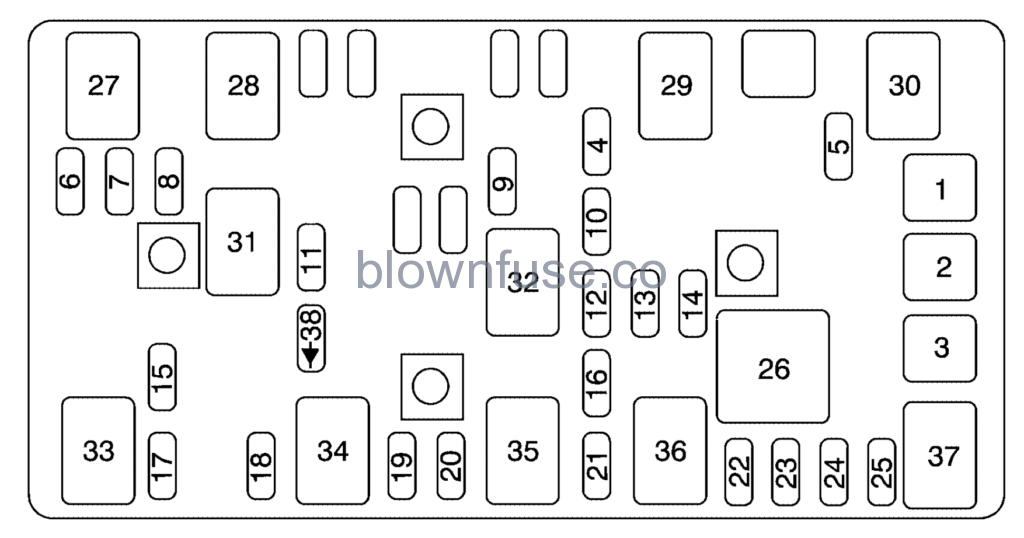

Rear Compartment Fuse Block
The rear compartment fuse block is located in the trunk of the vehicle. Access the fuse block through the trunk panel on the driver’s side of the rear cargo area.
№ | Description |
---|---|
1 | Rear Quarter Windows (Retractable Hardtop Only) |
2 | Driver Seat Controls |
3 | Retractable Hardtop |
4 | Not Used |
5 | Emission 2, Canister Vent Solenoid |
6 | Park Lamps, Instrument Panel Dimming |
7 | Not Used |
8 | Not Used |
9 | 2005-2007: Sliding Panel Roof 2008-2010: Not Used |
10 | Sunroof Controls |
11 | Not Used |
12 | Retractable Hardtop Controller |
13 | Audio Amplifier |
14 | Heated Seat Controls |
15 | Not Used |
16 | Remote Keyless Entry System, XM Satellite Radio |
17 | Back-up Lamps |
18 | Not Used |
19 | Not Used |
20 | Cigarette Lighter, Auxiliary Power Outlet |
21 | Not Used |
22 | Trunk Release |
23 | Rear Defog |
24 | Not Used |
25 | Fuel Pump |
Relays | |
26 | Rear Window Defogger |
27 | Park Lamps |
28 | Not Used |
29 | Not Used |
30 | Not Used |
31 | Not Used |
32 | Not Used |
33 | Back-up Lamps |
34 | Not Used |
35 | Not Used |
36 | Trunk Release |
37 | Fuel Pump |
38 (Diode) | Cargo Lamp |
