2016 Ford Transit Connect Fuse Diagram

Engine Compartment Fuse Box

The fuse box is located in the engine compartment.

2016 Ford Transit Connect Engine Fuse Diagram
Fuse  Fuse rating  Circuits protected
F1  –  Not used.
F2  –  Not used.
F3  –  Not used.
F4  –  Not used.
F5  –  Not used.
F6  –  Not used.
F7  40A**  Anti-lock brake system.
F8  30A**  Stability control.
F9  30A**  Heated rear window.
F10  40A**  Blower motor.
F11  20A**  Rear floor console auxiliary power point.   Cargo area auxiliary power point.
F12  30A**  Powertrain control module.
F13  30A**  Starter relay.
F14  40A**  Right-hand heated windshield.
F15  20A**  Cargo-area auxiliary power point.   Luggage compartment auxiliary power point.
F16  40A**  Heated windshield.
F17  20A**  Floor console auxiliary power point.
F18  40A**  Accessories – Van only.
F19  5A*  Anti-lock brake system.   Stability Control.
F20  15A*  Horn.
F21  5A*  Stop lamp switch.
F22  15A*  Battery monitor system – 1.6 GTDI engine only.
10A*  Power supply voltage – powertrain control module 2.5 L engine only.
F23  5A*  Relay coils.
F24  –  Not used.
F25  25A*  Door control unit (van only).
F26  5A*  Engine control relay coil feed – 2.5 L engine only.
F27  15A*  Air conditioning clutch.
F28  25A*  Rear power window.
F29  25A*  Front power window.
F30  5A*  Ignition switch position II output (van only).
F31  15A*  Taxi roof lamp switch.
F32  15A*  Engine control module.
F33  10A*  Engine control module.
F34  10A*  Fuel injectors.
F35  15A*  Vehicle power 4.
F36  5A*  Active grill shutter – 1.6 GTDI and 2.5L engine only.
F37  5A*  Battery saver relay.
F38  15A*  Engine control module.   Transmission control module.
F39  10A*  Taxi block connector.
F40  5A*  Electronic power assist steering.
F41  20A*  Body control module.
F42  15A*  Rear window wiper.
F43  15A*  Heated front seat – Van.
20A*  Accessories – Van.
F44  15A*  Headlamp control module.
5A*  Air conditioning switch – Taxi.
F45  10A*  Power exterior mirror – without door control unit.
F46  40A**  Windshield wiper.
F47  7.5A*  Heated exterior mirror – without door control unit.
F48  25A*  Body control module.

*Mini fuses **Cartridge fuses

Relay  Circuits switched
R1  Not used.
R2  Horn.
R3  Battery saver relay.
R4  Heated rear window.
R5  Rear window wiper.
R6  Not used.
R7  Heated windshield.
R8  Accessory delay.   DCU power feed (van).
R9  Relay – Van.
R10  Starter motor.
R11  Air conditioning clutch.
R12  Cooling fan.
R13  Blower motor.
R14  Electronic engine control.
R15  Not used.
R16  Ignition.

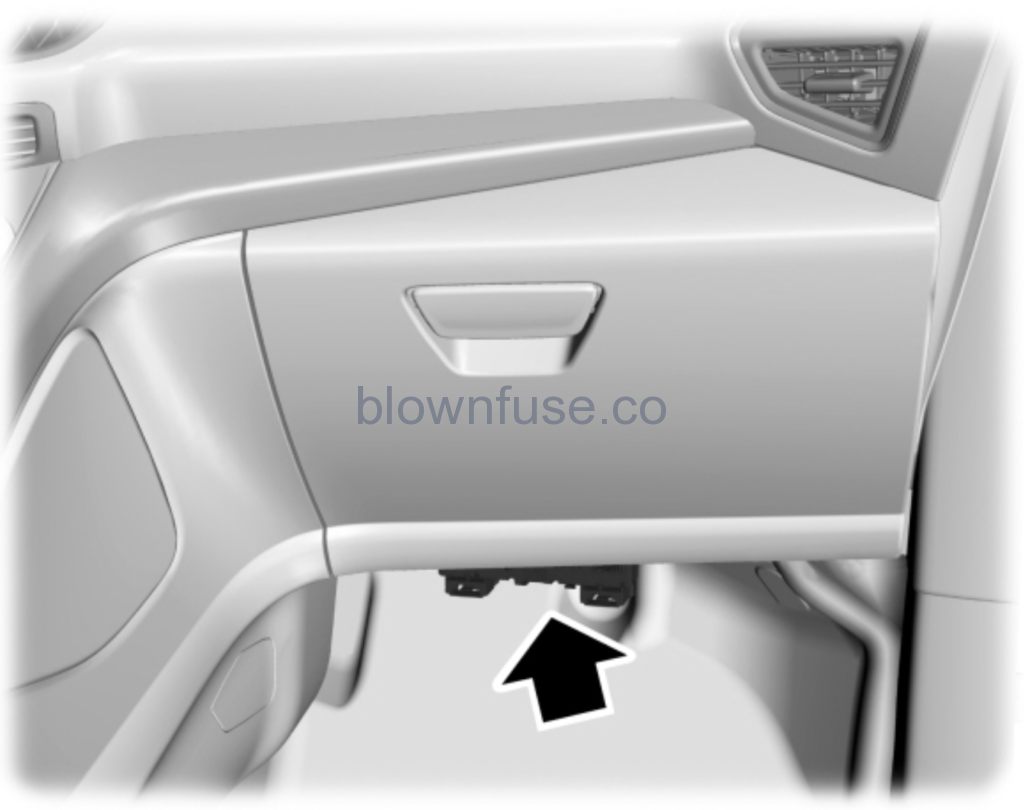

Passenger Compartment Fuse Box Location

2016 Ford Transit Connect passenger fuse box location

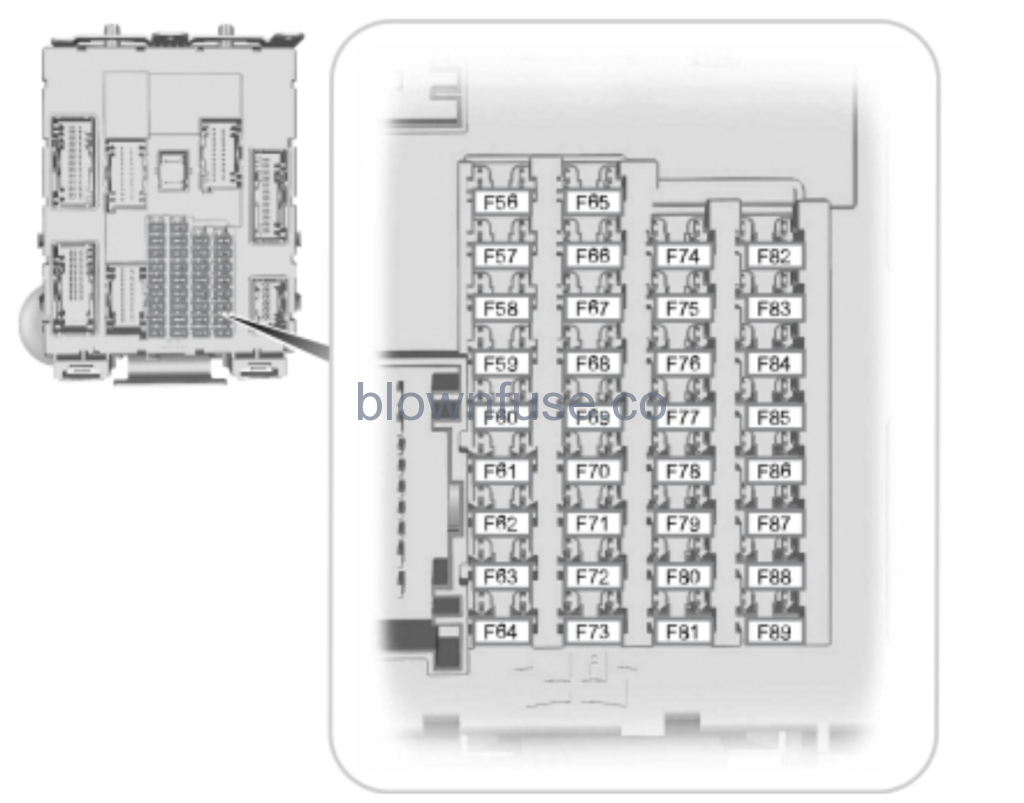

Passenger Compartment Fuse Box

2016 Ford Transit Connect passenger Fuse Diagram
Fuse  Fuse rating  Circuits protected
F56  20A  Fuel pump.
F57  –  Not used.
F58  –  Not used.
F59  5A  Passive anti-theft system transceiver.
F60  10A  Interior lamp.   Driver door switch pack.   Glove compartment lamp.   Overhead console switch bank.
F61  20A  Not used (spare).
F62  5A  Autowipers.   Auto-dimming interior mirror.
F63  –  Not used.
F64  –  Not used.
F65  10A  Liftgate release.
F66  20A  Front door double locking and unlock relay.
F67  7.5A  SYNC.   Front display interface module.   Global positioning system module.
F68  –  Not used.
F69  5A  Instrument panel cluster.
F70  20A  Central locking relay.
F71  10A  Heating control head (manual air conditioning).   Dual automatic temperature control.
F72  7.5A  Steering wheel module.
F73  7.5A  Data link connector.   Battery backup sounder.
F74  15A  High beam headlamp.
F75  15A  Front fog lamp.
F76  10A  Reversing lamp.
F77  20A  Washer pump.
F78*  5A  Ignition switch.
F79  15A  Audio unit.   DVD navigation system.   Touchscreen.   Hazard flasher switch.   Door lock switch.
F80  –  Not used.
F81  5A  Power sunroof.
Interior motion sensor.
F82  20A  Washer pump.
F83  20A  Central locking.
F84  20A  DD FF unlock supply (ground fuse).   DD FF double lock (ground fuse).
F85  7.5A  Ignition switch.
F86  10A  Airbag module.   Occupant classification system.   Passenger airbag deactivation indicator.
F87  –  Not used.
F88  –  Not used.
F89  –  Not used.

*Switch off the ignition and do not press the brake pedal when servicing this fuse.

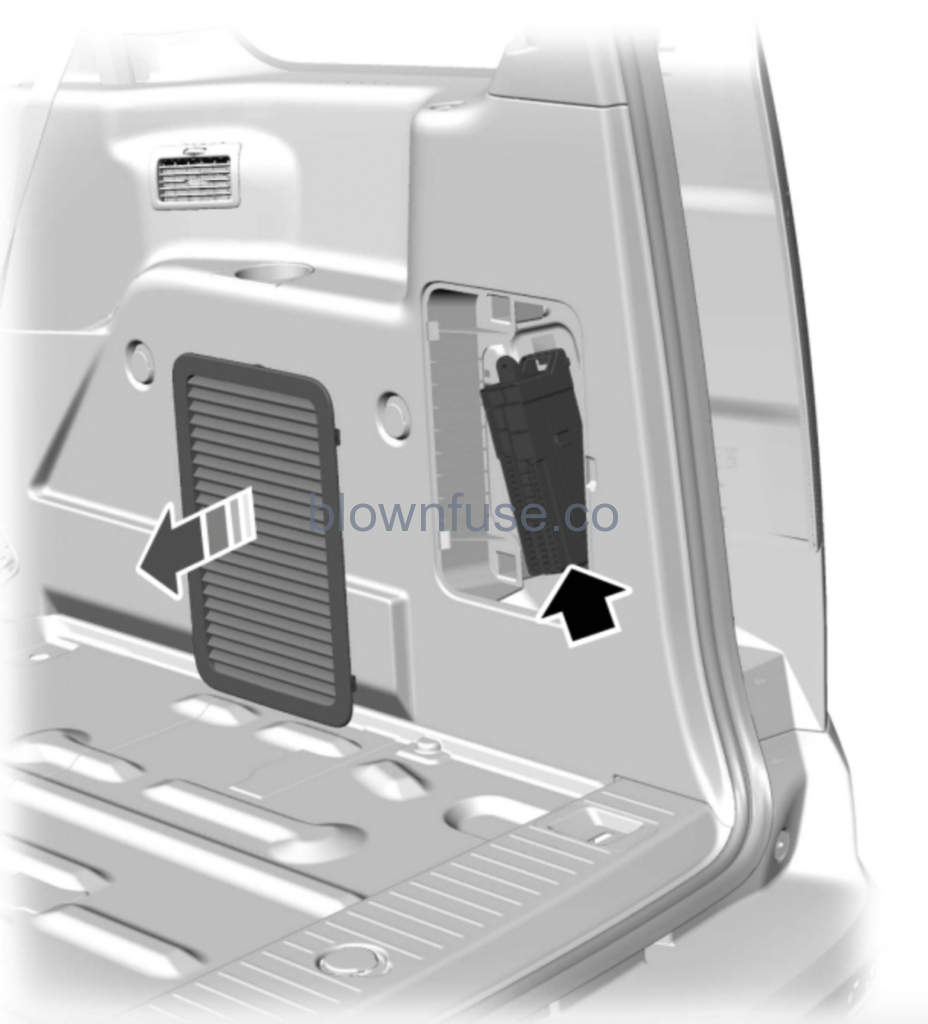

Cargo Compartment Fuse Box Location

The fuse box is located in the luggage compartment on the right-hand side. Remove the fuse box cover to gain access to the fuses.

2016 Ford Transit Connect Luggage fuse box location

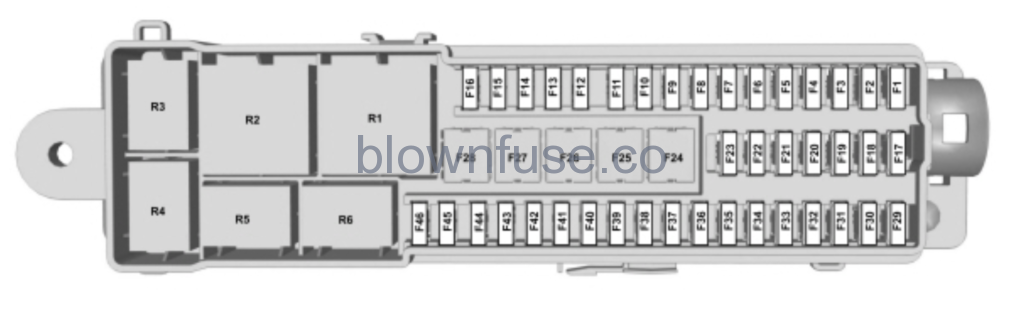

Cargo Compartment Fuse Box Diagram

2016 Ford Transit Connect Luggage fuse box diagram
Fuse  Fuse Rating  Circuits protected
F1  10A*  Rear heating, ventilation and air conditioning.
F2  25A*  Driver seat adjuster.
F3  25A*  Driver door module.
F4  25A*  Passenger door module.
F5  –  Not used.
F6  25A*  Door control unit rear left.
F7  25A*  Door control unit rear right.
F8  –  Not used.
F9  –  Not used.
F10  –  Not used.
F11  –  Not used.
F12  –  Not used.
F13  –  Not used.
F14  –  Not used.
F15  –  Not used.
F16  –  Not used.
F17  –  Not used.
F18  –  Not used.
F19  –  Not used.
F20  –  Not used.
F21  –  Not used.
F22  –  Not used.
F23  –  Not used.
F24  –  Not used.
F25  40A**  Rear blower motor.
F26  40A**  Accessories.   Trailer tow module.
F27  40A**  Taxi.
F28  –  Not used.
F29  5A*  Rear view camera.
F30  5A*  Parking aid.
F31  –  Not used.
F32  –  Not used.
F33  –  Not used.
F34  15A*  Driver heated seat.
F35  15A*  Passenger heated seat.
F36  –  Not used.
F37  20A*  Power sunblind.
F38  10A*  Taxi.
F39  –  Not used.
F40  –  Not used.
F41  10A*  Taxi connector.
F42  20A*  Taxi connector.
F43  –  Not used.
F44  –  Not used.
F45  –  Not used.
F46  –  Not used.

*Mini fuses **Cartridge fuses

Relay  Circuits switched
R1  Ignition switch.
R2  Rear heating, ventilation and air conditioning motor.   Ventilation and air conditioning motor.
R3  Not used.
R4  Not used.
R5  Not used.
R6  Not used.

2016 Ford Transit Connect Owners Manual

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
