2019 Ford Fusion Hybrid Energi Fuse Box Diagram

Power Distribution Box

WARNING:  Always disconnect the battery before servicing high current fuses.    WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If you disconnect and reconnect the battery, you need to reset some features.

Fuse or Relay Number	Fuse Rating	Protected Component
1	25A1	Wiper motor 2.
2	—	Not used.
3	15A2	Rain sensor.
4	—	Blower motor relay.
5	20A1	Power point 3 – back of console.
6	—	Water pump relay.
7	20A2	Powertrain control module – vehicle power 1.   Powertrain control module power.
8	20A2	Powertrain control module – vehicle power 2.   Emission components.
9	—	Powertrain control module relay.
10	20A1	Power point 1 – driver front.
11	15A3	Powertrain control module – vehicle power 4.   Ignition coils.
12	15A3	Powertrain control module – vehicle power 3.   Non-emission components.
13	10A3	Not used (spare).
14	10A3	Not used (spare).
15	—	Run-start relay.
16	20A1	Power point 2 – console.
17	—	Not used.
18	10A2	Powertrain and hybrid powertrain control module keep alive power.   Battery module.
19	10A2	Run/start electronic power assist steering.
20	10A2	Adaptive cruise control.
21	15A2	Run-start transmission switch.   HEV inverter.
22	5A2	Not used (spare).
23	15A2	Run-start, blind spot information system, rear view camera, adaptive cruise control, head-up display, shifter.
24	10A2	PHEV Run-start transmission oil pump.
25	10A3	Run-start anti-lock brake system.
26	10A3	Run-start powertrain control module.
27	10A2	Fuel door solenoid.
28	20A2	Not used (spare).
29	20A2	Not used (spare).
30	—	Not used.
31	—	Not used.
32	—	HEV/PHEV pulse width modulated fan relay.
33	—	Not used.
34	—	Not used.
35	15A2	Charger fan.
36	15A2	HEV battery electronic control module fan.
37	—	Not used.
38	—	Vacuum pump #1 relay.
39	—	Vacuum pump #2 relay.
40	—	Fuel pump relay.
41	—	Horn relay.
42	—	Not used.
43	—	Not used.
44	—	Not used.
45	5A2	Vacuum pump monitor.
46	10A3	Charge port light ring.
47	10A3	Brake on-off switch.
48	20A2	Horn.
49	5A2	Air flow monitor.
50	15A2	Hybrid content vehicle power 5.   Battery energy control module fan.
51	15A3	Hybrid content vehicle power 1.   Hybrid powertrain control module.
52	15A3	Hybrid content vehicle power 2.   Battery energy control module.
53	10A2	Not used (spare).
54	10A3	Hybrid content vehicle power 3.   Coolant pump.
55	10A3	Hybrid content vehicle power 4.   Air conditioning compressor.   Positive temperature coefficient heater (PHEV).   Humidity sensor (PHEV).

¹M-Case fuse.²Micro 2 fuse.³Micro 3 fuse.

Note:   Spare fuse amperage may vary.

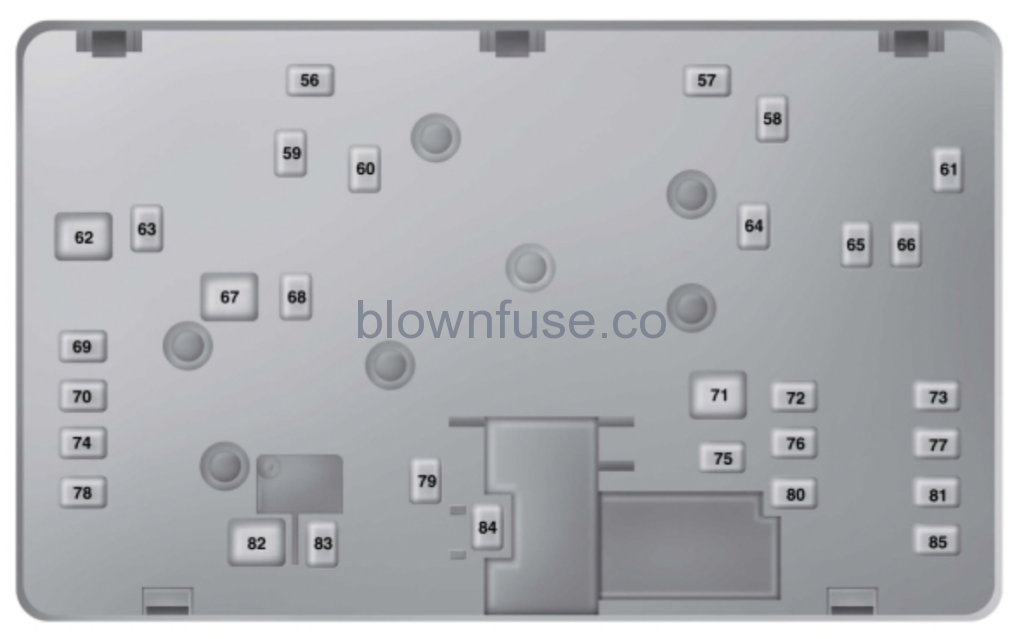

Power Distribution Box – Bottom

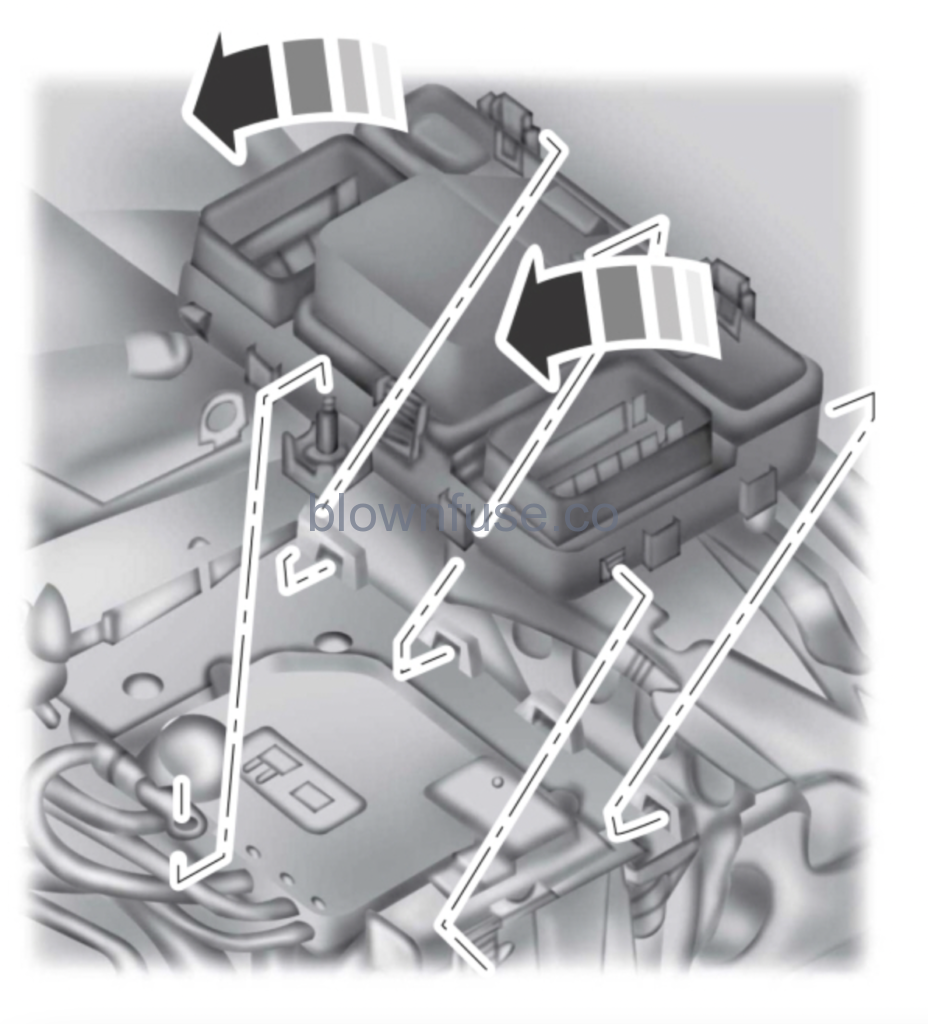

There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

1. Release the two latches on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.

Fuse or Relay Number	Fuse Rating	Protected Component
56	30A4	Fuel pump feed.
57	—	Not used.
58	—	Not used.
59	40A4	Vacuum pump relay.
60	40A5	Pulse width modulated fan.
61	—	Not used.
62	50A5	Body control module 1.
63	—	Not used.
64	40A4	PHEV charger.
65	20A5	Front heated seat.
66	—	Not used.
67	50A5	Body control module 2.
68	40A4	Heated rear window.
69	30A4	Anti-lock brake system valves.
70	30A4	Passenger seat.
71	50A5	Water pump.
72	30A4	Panoramic roof #1.
73	20A4	Rear heated seat module.
74	30A4	Driver seat module.
75	20A4	Transmission oil pump (PHEV).
76	20A4	e-Shifter (transmission range control module).
77	30A4	Front climate controlled seats.
78	—	Not used.
79	40A5	Blower motor.
80	30A4	Power decklid.
81	—	Not used.
82	60A5	Anti-lock brake system pump.
83	25A4	Wiper motor 1.
84	—	Not used.
85	30A4	Not used (spare).

⁴M Case fuse.⁵J Case fuse.

Note:   Spare fuse amperage may vary.

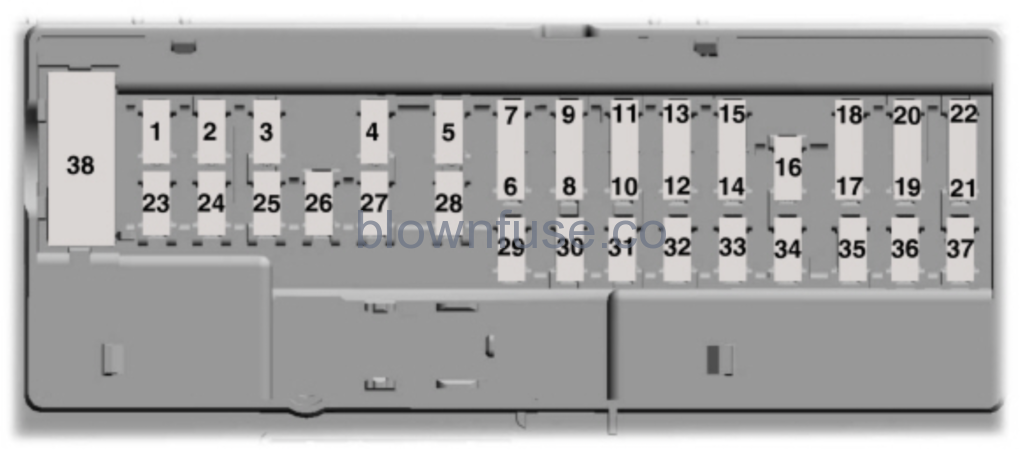

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel to the left of the steering column.

Note:   It may be easier to access the fuse panel if you remove the finish trim piece.

Fuse or Relay Number	Fuse Rating	Protected Component
1	—	Not used.
2	7.5A6	Lumbar.
3	20A6	Driver door unlock.
4	5A6	Not used (spare).
5	20A6	Subwoofer amplifier.
6	10A7	Not used (spare).
7	10A7	Not used (spare).
8	10A7	Not used (spare).
9	10A7	Not used (spare).
10	5A7	Keypad.   Cell phone passport module.
11	5A7	Not used (spare).
12	7.5A7	Climate control.   Gear shift.
13	7.5A7	Steering wheel column.   Instrument cluster.   Datalink logic.
14	10A7	Extended power module.
15	10A7	Datalink-gateway module.
16	15A6	Child lock.   Decklid release.
17	5A7	Not used (spare).
18	5A7	Push button start stop switch.
19	7.5A7	Extended power module.
20	7.5A7	Adaptive headlamps.
21	5A7	Humidity and in–car temperature sensor.
22	5A7	Not used (spare).
23	10A6	Delayed accessory (moonroof logic, driver master switch).
24	20A6	Central lock unlock
25	30A6	Driver door (window, mirror).
26	30A6	Front passenger door (window, mirror).
27	30A6	Moonroof.
28	20A6	Amplifier.
29	30A6	Rear driver side door (window).
30	30A6	Rear passenger side door (window).
31	15A6	Not used (spare).
32	10A6	GPS.   Voice control.   Display.   Radio frequency receiver.
33	20A6	Radio.   Active noise control.
34	30A6	Run-start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
35	5A6	Not used (spare).
36	15A6	Auto-dimming rear view mirror.
37	20A6	Heated steering wheel.
38	—	Not used.

⁶Micro 2 fuse.⁷Micro 3 fuse.

Note:   Spare fuse amperage may vary.

2019 Ford Fusion Hybrid Energi Owners Manual

Changing a Fuse

Fuses

WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile
