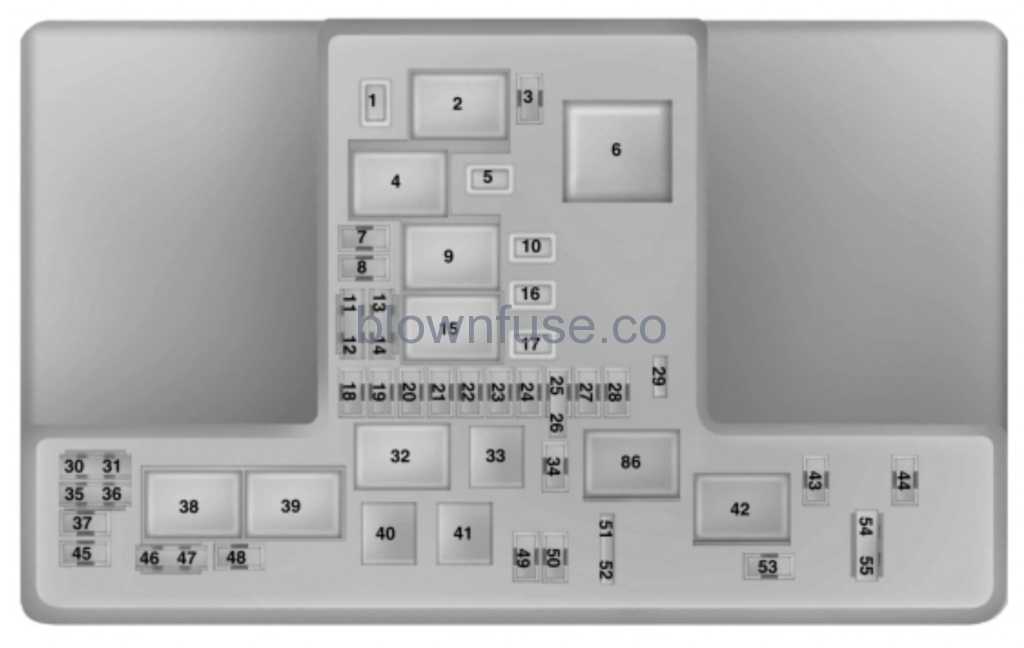

Power Distribution Box
WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If the battery has been disconnected and reconnected, some features will need to be reset.
Fuse or Relay Number | Fuse Rating | Protected Component |
---|---|---|
1 | 30A1 | Panoramic moonroof. |
2 | — | Starter relay. |
3 | 15A3 | Rain sensor. |
4 | — | Blower motor relay. |
5 | 20A 1 | Power point 3 – Back of console. |
6 | — | Not used. |
7 | 20A 3 | Powertrain control module – vehicle power 1. Powertrain control module power. |
8 | 20A 3 | Powertrain control module – vehicle power 2. Emission components. |
9 | — | Powertrain control module relay. |
10 | 20A 1 | Power point 1 – driver front. |
11 | 15A 2 | Powertrain control module – vehicle power 4. Ignition coils. |
12 | 15A 2 | Powertrain control module – vehicle power 3. Non-emission components. |
13 | 10A 2 | Not used (spare). |
14 | 10A 2 | Not used (spare). |
15 | — | Run-start relay. |
16 | 20A 1 | Power point 2 – console. |
17 | 20A 1 | Not used (spare). |
18 | 20A 3 | Not used (spare). |
19 | 10A 3 | Run-start electronic power assist steering. |
20 | 10A 3 | Adaptive cruise control. |
21 | 15A 3 | Run/start transmission control. Transmission oil pump start/stop. |
22 | 10A 3 | Air conditioner clutch solenoid. |
23 | 15A 3 | Run-start. Blind spot information system. Rear view camera. Heads-up display. Voltage stability module. Gear shift actuator. |
24 | — | Not used. |
25 | 10A 2 | Run-start anti-lock brake system. |
26 | 10A 2 | Run-start powertrain control module. |
27 | 10A1 | Not used (spare). |
28 | — | Not used. |
29 | 5A 3 | Mass air flow monitor. |
30 | — | Not used. |
31 | — | Not used. |
32 | — | Electric fan 1 relay. |
33 | — | A/C clutch relay. |
34 | — | Not used. |
35 | — | Not used. |
36 | — | Not used. |
37 | — | Not used. |
38 | — | Electric fan 2 relay. |
39 | — | Electric fan coil 2 and 3 relay. |
40 | — | Horn relay. |
41 | — | Not used. |
42 | — | Fuel pump coil relay. |
43 | — | Not used. |
44 | 20A 3 | Left hand side headlamp ballast. |
45 | 5A 3 | Not used (spare). |
46 | — | Not used. |
47 | — | Not used. |
48 | — | Not used. |
49 | 10A 3 | Not used (spare). |
50 | 20A 3 | Horn. |
51 | — | Not used. |
52 | — | Not used. |
53 | 10A 3 | Not used (spare). |
54 | 10A 2 | Brake on off switch. |
55 | 10A 2 | ALT sensor. |
86 | 30A 4 | Not used (spare). |
1Micro 2 fuse.2Micro 3 fuse.3M case fuse.

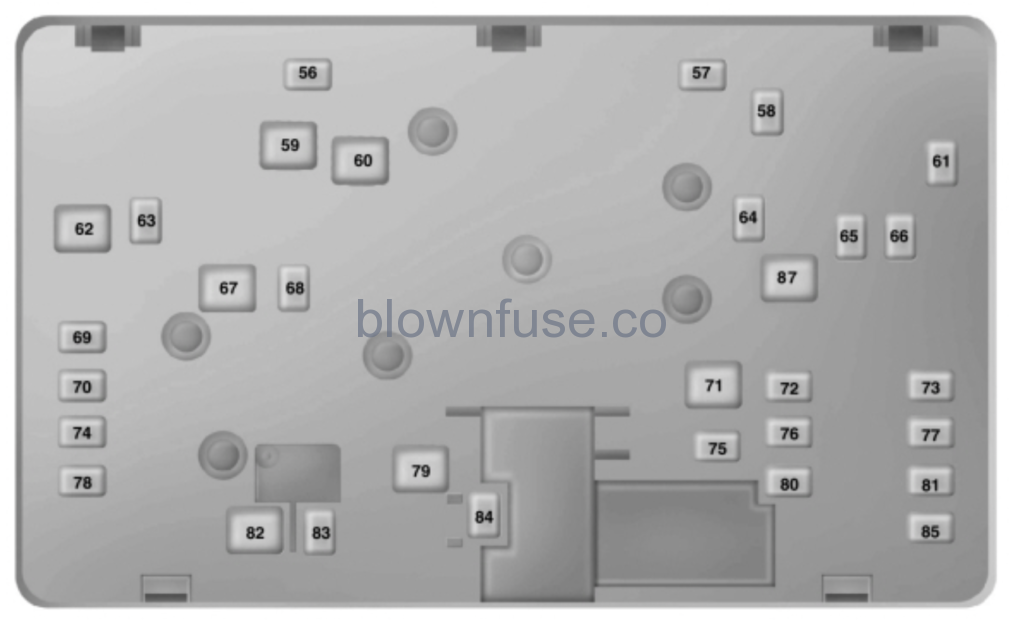

Power Distribution Box – Bottom
There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
- Release the two latches, on both sides of the fuse box.
- Raise the inboard side of the fuse box from the cradle.
- Move the fuse box toward the center of the engine compartment.
- Pivot the outboard side of the fuse box to access the bottom side.
Fuse or Relay Number | Fuse Rating | Protected Component |
---|---|---|
56 | — | Not used. |
57 | — | Not used. |
58 | 30A 4 | Fuel pump feed. |
59 | 30A 5 | Electric fan 3 |
60 | 30A 5 | Electric fan 1 (1.5L, 2.0L, and 2.5L engines). |
61 | — | Not used. |
62 | 50A 5 | Body control module 1. |
63 | 25A 4 | Electric fan 2 (1.5L, 2.0L, and 2.5L engines). |
64 | 30A 4 | Not used (spare). |
65 | 20A 4 | Front heated seat. |
66 | 15A 4 | Not used (spare). |
67 | 50A 5 | Body control module 2. |
68 | 40A 4 | Heated rear window. |
69 | 30A 4 | Anti-lock brake system valves. |
70 | 30A 4 | Passenger seat. |
71 | — | Not used. |
72 | 20A 4 | Trans oil pump. |
73 | 20A 4 | Rear heated seats. |
74 | 30A 4 | Driver seat module. |
75 | 25A 4 | Wiper motor 1. |
76 | 30A 4 | Not used (spare). |
77 | 30A 4 | Climate control seat module. |
78 | — | Not used. |
79 | 40A 5 | Blower motor. |
80 | 25A 4 | Wiper motor 2. |
81 | — | Not used. |
82 | — | Not used. |
83 | 20A 4 | TRCM shifter. |
84 | 30A 4 | Starter solenoid. |
85 | 30A 4 | Not used (spare). |
87 | 60A 5 | Anti-lock brake system pump. |
4M case fuse.5J case fuse.

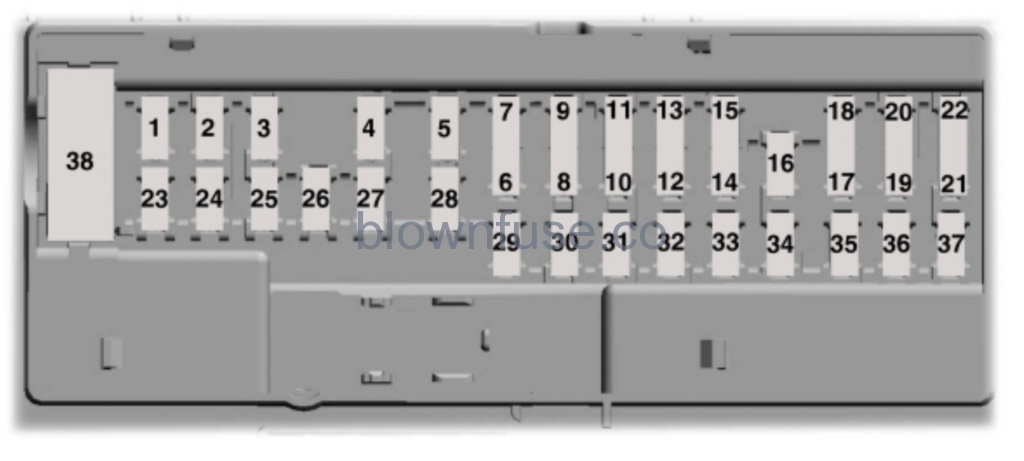

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel to the left of the steering column.
Note: It may be easier to access the fuse panel if you remove the finish trim piece.
Fuse or Relay Number | Fuse Rating | Protected Component |
---|---|---|
1 | — | Not Used |
2 | 7.5A 6 | Lumbar. |
3 | 20A 6 | Driver door unlock. |
4 | 5A 6 | Not used (spare). |
5 | 20A 6 | Subwoofer amplifier. |
6 | 10A 7 | Not Used (spare). |
7 | 10A 7 | Not used (spare). |
8 | 10A 7 | Not used (spare). |
9 | 10A 7 | Not used (spare). |
10 | 5A 7 | Keypad. Cellphone passport module. |
11 | 5A 7 | Not used (spare). |
12 | 7.5A 7 | Climate control. Gear shift |
13 | 7.5A 7 | Steering wheel column lock. Cluster. Datalink logic. |
14 | 10A 7 | Extended power module. |
15 | 10A 7 | Datalink gateway module. |
16 | 15A 6 | Child lock. |
17 | 5A 7 | Not used (spare). |
18 | 5A 7 | Push button stop start switch. |
19 | 7.5A 7 | Extended power module. |
20 | 7.5A 7 | Adaptive headlamp. |
21 | 5A 7 | Humidity and in–car temperature sensor. |
22 | 5A 7 | Not used (spare). |
23 | 10A 6 | Delayed accessory (moonroof logic, driver master switch). |
24 | 20A 6 | Central lock/unlock. |
25 | 30A 6 | Driver door (window, mirror). |
26 | 30A 6 | Front passenger door (window, mirror). |
27 | 30A 6 | Moonroof. |
28 | 20A 6 | Amplifier. |
29 | 30A 6 | Rear driver side door (window). |
30 | 30A 6 | Rear passenger side door (window). |
31 | 15A 6 | Not used (spare). |
32 | 10A 6 | Global positioning system. Display. Voice control. Radio frequency receiver. |
33 | 20A 6 | Radio. Active noise control. |
34 | 30A 6 | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker). |
35 | 5A 6 | Not used (spare). |
36 | 15A 6 | Auto-dimming rear view mirror. Continuous control damping suspension. Rear heated seats. |
37 | 20A 6 | Heated steering wheel. |
38 | 30A | Not used. |
6Micro 2 fuse.7Micro 3 fuse.
2019 Ford Fusion Owners Manual
Changing a Fuse
Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types
Callout | Fuse Type |
---|---|
A | Micro 2 |
B | Micro 3 |
C | Maxi |
D | Mini |
E | M Case |
F | J Case |
G | J Case Low Profile |
