2016 Ford Fusion Energi and Hybrid Fuse Box Diagram

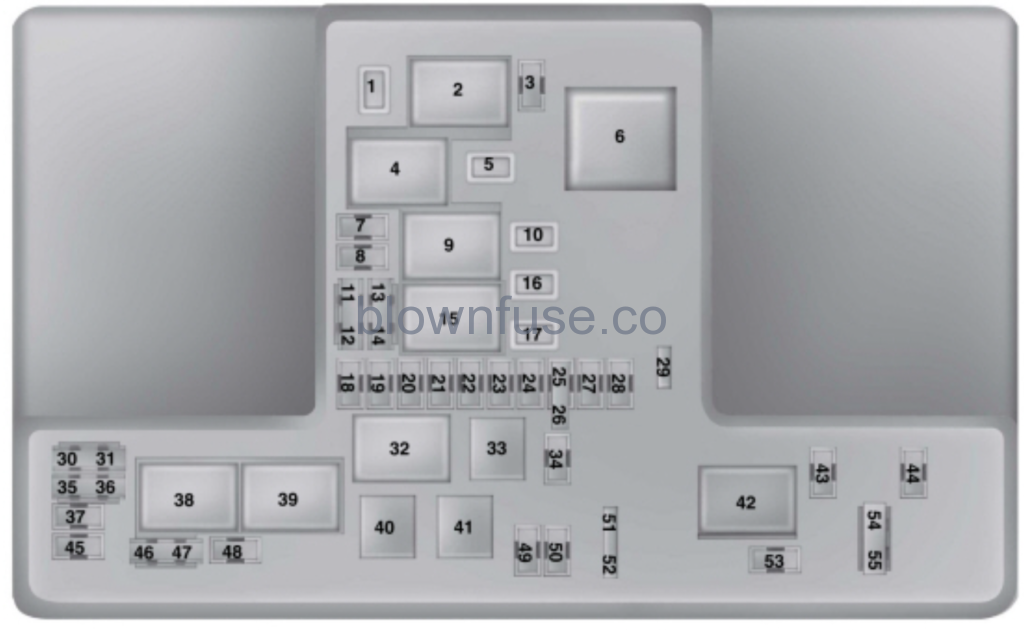

Power Distribution Box

WARNING:  Always disconnect the battery before servicing high-current fuses.    WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If the battery has been disconnected and reconnected, some features will need to be reset.

Fuse or relay number	Fuse amp rating	Protected components
1	25A3	Wiper motor 2.
2	—	Not used.
3	15A1	Rain sensor.
4	—	Blower motor relay.
5	20A3	Power point 3 – back of console.
6	—	Not used.
7	20A1	Powertrain control module – vehicle power 1.
8	20A1	Powertrain control module – vehicle power 2.
9	—	Powertrain control module relay.
10	20A3	Power point 1 – driver front.
11	15A2	Powertrain control module – vehicle power 4.
12	15A2	Powertrain control module – vehicle power 3.
13	10A2	Not used (spare).
14	10A2	Not used (spare).
15	—	Run-start relay.
16	20A3	Power point 2 – console.
17	20A3	Transmission oil pump.
18	10A1	Powertrain and hybrid powertrain control module keep alive power.
19	10A1	Run/start electronic power assist steering.
20	10A1	Run-start lighting.
21	15A1	Run-start transmission switch.   HEV inverter.
22	—	Not used.
23	15A1	Run-start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display.   Shifter
24	10A1	Run-start transmission oil pump.
25	10A2	Run-start anti-lock brake system.
26	10A2	Run-start powertrain control module.
27	10A1	Fuel door solenoid.
28	—	Not used.
29	15A1	Hybrid content vehicle power 5.
30	—	Not used.
31	—	Not used.
32	—	HEV/PHEV pulse width modulated fan relay.
33	—	Not used.
34	—	Not used.
35	15A1	Charger fan.
36	15A1	HEV battery electronic control module fan.
37	5A1	Remote CD.
38	—	Vacuum pump #1 relay.
39	—	Vacuum pump #2 relay.
40	—	Fuel pump relay.
41	—	Horn relay.
42	—	Not used.
43	—	Not used.
44	—	Not used.
45	5A1	Vacuum pump monitor.
46	10A2	Charge port light ring.
47	10A2	Brake on-off switch.
48	20A1	Horn.
49	5A1	Air flow monitor.
50	—	Not used.
51	15A2	Hybrid content vehicle power 1.
52	15A2	Hybrid content vehicle power 2.
53	10A1	Power seats.
54	10A2	Hybrid content vehicle power 3.
55	10A2	Hybrid content vehicle power 4.

¹Micro fuse.²Dual micro fuse.³M-type fuse.

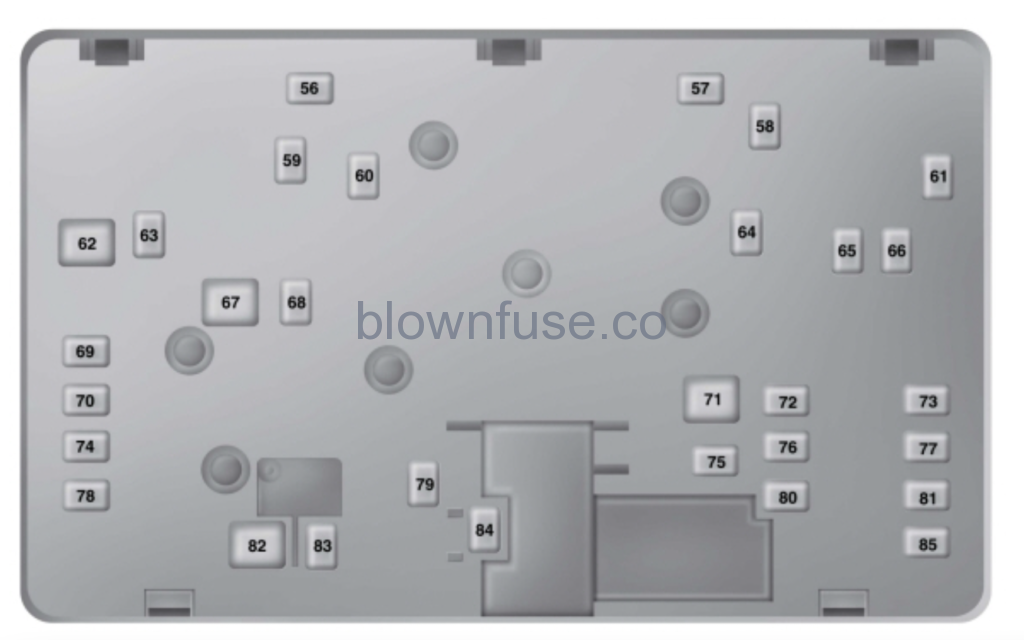

Power Distribution Box – Bottom

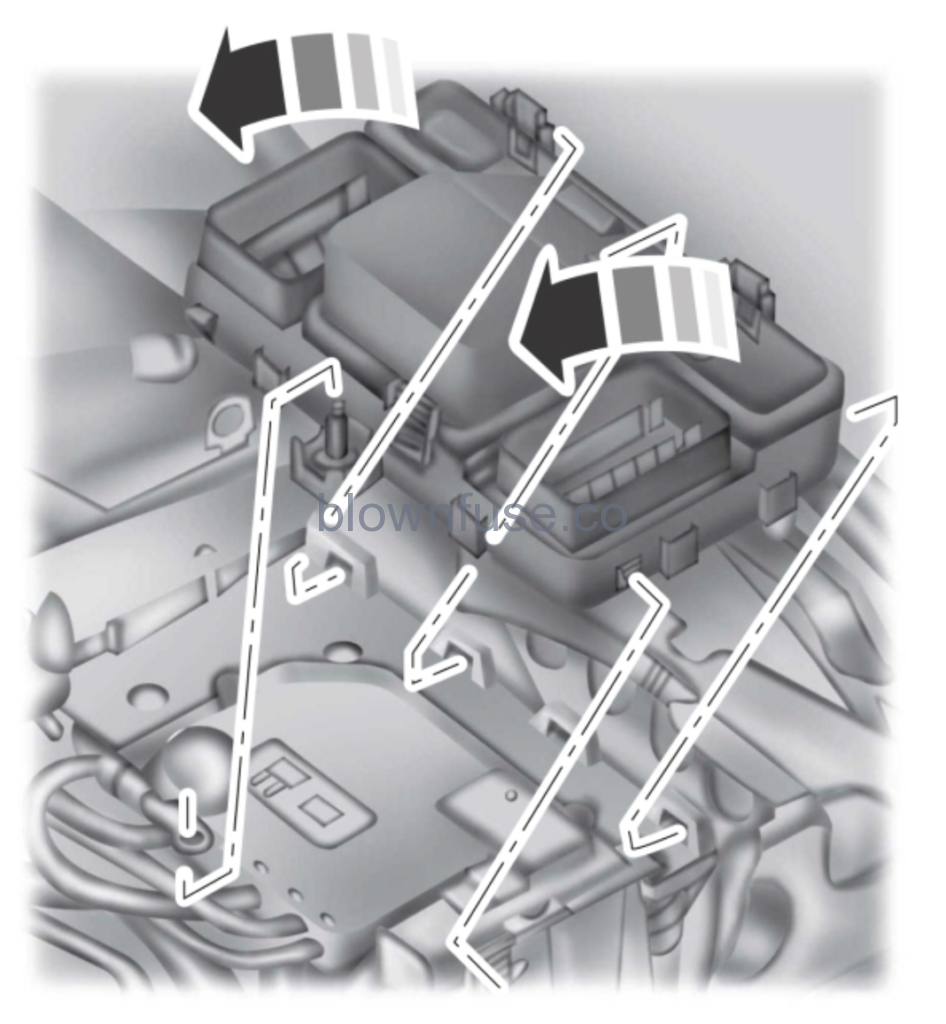

There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

1. Release the two latches, located on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.

Fuse or relay number	Fuse amp rating	Protected components
56	30A1	Fuel pump feed.
57	—	Not used.
58	—	Not used.
59	40A1	Vacuum pump relay.
60	40A1	Pulse width modulated fan.
61	—	Not used.
62	50A2	Body control module 1.
63	—	Not used.
64	40A1	PHEV charger.
65	20A1	Front heated seat.
66	—	Not used.
67	50A2	Body control module 2.
68	40A1	Heated rear window.
69	30A1	Anti-lock brake system valves.
70	30A1	Passenger seat.
71	—	Not used.
72	30A1	Panoramic roof #1.
73	20A1	Rear heated seat.
74	30A1	Driver seat module.
75	—	Not used.
76	20A1	Transmission oil pump.   iShifter
77	30A1	Front climate controlled seats.
78	40A1	Trailer tow module.
79	40A1	Blower motor.
80	30A1	Power decklid.
81	40A1	Inverter.
82	60A2	Anti-lock brake system pump.
83	25A1	Wiper motor 1.
84	—	Not used.
85	30A1	Panoramic roof #2.

¹ M-type fuse.²J-type fuse.Passenger

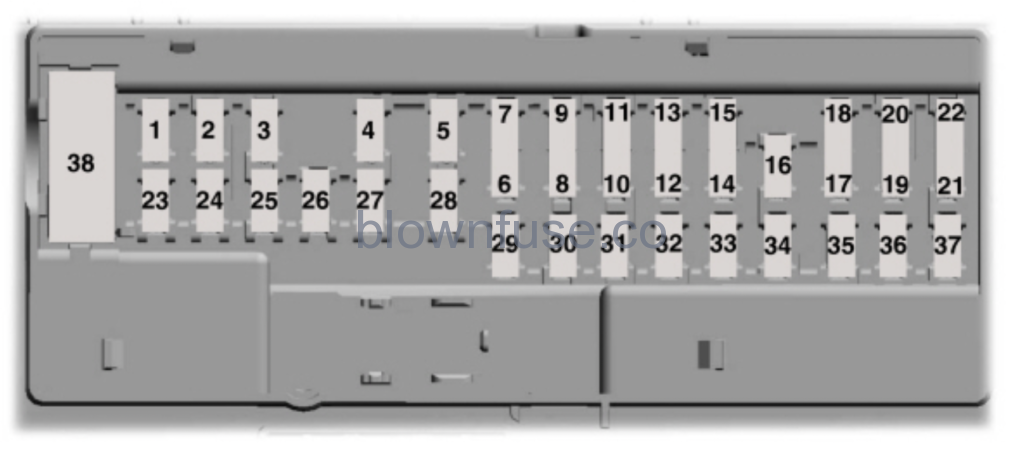

Compartment Fuse Panel

The fuse panel is located under the instrument panel to the left of the steering column.

Note:   It may be easier to access the fuse panel if you remove the finish trim piece.

Fuse or relay number	Fuse amp rating	Protected components
1	10A1	Lighting (ambient, glove box, vanity, dome, trunk).
2	7.5A1	Memory seats.   Lumbar.   Power mirror.
3	20A1	Driver door unlock.
4	5A1	Not used (spare).
5	20A1	Subwoofer amplifier.
6	10A2	Heated seat relay coil.
7	10A2	Not used (spare).
8	10A2	Not used (spare).
9	10A2	Not used (spare).
10	5A2	Keypad.   Cell phone passport module.   Power decklid module.
11	5A2	Not used (spare).
12	7.5A2	Climate control.   Gear shift.
13	7.5A2	Steering wheel column.   Instrument cluster.   Datalink logic.
14	10A2	Battery electronic control module.
15	10A2	Datalink-gateway module.
16	15A1	Child lock.   Decklid release.
17	5A2	Tracking and blocking.
18	5A2	Ignition.   Push button start stop switch.
19	7.5A2	Passenger airbag disabled indicator.   Transmission range control.
20	7.5A2	Adaptive headlamps.
21	5A2	Humidity and in–car temperature sensor.
22	5A2	Occupant classification sensor.
23	10A1	Delayed Accessory (Power inverter logic, Moonroof logic).
24	20A1	Central lock unlock.
25	30A1	Driver door (window, mirror).
26	30A1	Front passenger door (window, mirror).
27	30A1	Moonroof.
28	20A1	Amplifier.
29	30A1	Rear driver side door (window).
30	30A1	Rear passenger side door (window).
31	15A1	Not used (spare).
32	10A1	GPS.   Voice control.   Display.   Adaptive cruise control.   Radio frequency receiver.
33	20A1	Radio.   Active noise control.
34	30A1	Run-start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
35	5A1	Restraints control module.
36	15A1	Auto-dimming rear view mirror.
37	20A1	All wheel drive.   Heated steering wheel.
38	30A	Not used (spare).

¹Micro fuse.²Dual micro fuse.

2016 Ford Fusion Energi and Hybrid Fuse Owners Manual

Changing a Fuse

Fuses

WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile
