2015 Ford Fusion Hybrid/Energi Fuse Box Diagram

FUSE SPECIFICATION CHART

Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high-current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If the battery has been disconnected and reconnected, some features will need to be reset.   See   Changing the 12V BatteryMissing Image

Fuse or relay number  Fuse amp rating  Protected components
1  25A3  Wiper motor 2.
2  —  Not used.
3  15A1  Rain sensor.
4  —  Blower motor relay.
5  20A3  Power point 3 – back of console.
6  —  Not used.
7  20A1  Powertrain control module – vehicle power 1.
8  20A1  Powertrain control module – vehicle power 2.
9  —  Powertrain control module relay.
10  20A3  Power point 1 – driver front.
11  15A2  Powertrain control module – vehicle power 4.
12  15A2  Powertrain control module – vehicle power 3.
13  10A2  Not used (spare).
14  10A2  Not used (spare).
15  —  Run-start relay.
16  20A3  Power point 2 – console.
17  20A3  Transmission oil pump.
18  10A1  Powertrain and hybrid powertrain control module keep alive power.
19  10A1  Run/start electronic power assist steering.
20  10A1  Run-start lighting.
21  15A1  Run-start transmission switch.   HEV inverter.
22  —  Not used.
23  15A1  Run-start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display.   Shifter
24  10A1  Run-start transmission oil pump.
25  10A2  Run-start anti-lock brake system.
26  10A2  Run-start powertrain control module.
27  10A1  Fuel door solenoid.
28  —  Not used.
29  15A1  Hybrid content vehicle power 5.
30  —  Not used.
31  —  Not used.
32  —  HEV/PHEV pulse width modulated fan relay.
33  —  Not used.
34  —  Not used.
35  15A1  Charger fan.
36  15A1  HEV battery electronic control module fan.
37  5A1  Remote CD.
38  —  Vacuum pump #1 relay.
39  —  Vacuum pump #2 relay.
40  —  Fuel pump relay.
41  —  Horn relay.
42  —  Not used.
43  —  Not used.
44  —  Not used.
45  5A1  Vacuum pump monitor.
46  10A2  Charge port light ring.
47  10A2  Brake on-off switch.
48  20A1  Horn.
49  5A1  Air flow monitor.
50  —  Not used.
51  15A2  Hybrid content vehicle power 1.
52  15A2  Hybrid content vehicle power 2.
53  10A1  Power seats.
54  10A2  Hybrid content vehicle power 3.
55  10A2  Hybrid content vehicle power 4.

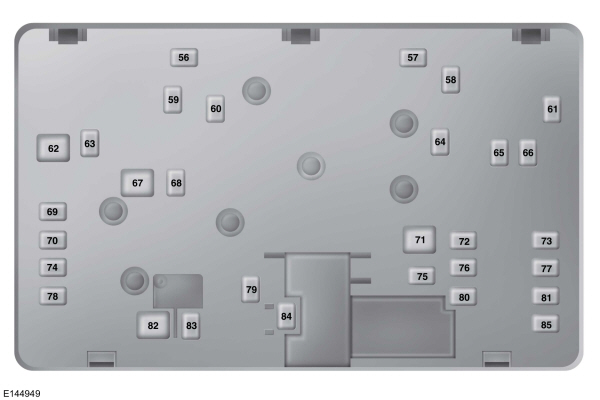

1Micro fuse.2Dual micro fuse.3M-type fuse.Power Distribution Box – BottomMissing ImageThere are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

  1. Release the two latches, located on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

Missing Image

Fuse or relay number  Fuse amp rating  Protected components
56  30A1  Fuel pump feed.
57  —  Not used.
58  —  Not used.
59  40A1  Vacuum pump relay.
60  40A1  Pulse width modulated fan.
61  —  Not used.
62  50A2  Body control module 1.
63  —  Not used.
64  40A1  PHEV charger.
65  20A1  Front heated seat.
66  —  Not used.
67  50A2  Body control module 2.
68  40A1  Heated rear window.
69  30A1  Anti-lock brake system valves.
70  30A1  Passenger seat.
71  —  Not used.
72  30A1  Panoramic roof #1.
73  20A1  Rear heated seat.
74  30A1  Driver seat module.
75  —  Not used.
76  20A1  Transmission oil pump.   iShifter
77  30A1  Front climate controlled seats.
78  40A1  Trailer tow module.
79  40A1  Blower motor.
80  30A1  Power decklid.
81  40A1  Inverter.
82  60A2  Anti-lock brake system pump.
83  25A1  Wiper motor 1.
84  —  Not used.
85  30A1  Panoramic roof #2.

1 M-type fuse.2J-type fuse.Passenger Compartment Fuse PanelThe fuse panel is located under the instrument panel to the left of the steering column.Note:   It may be easier to access the fuse panel if you remove the finish trim piece.Missing Image

Fuse or relay number  Fuse amp rating  Protected components
1  10A1  Lighting (ambient, glove box, vanity, dome, trunk).
2  7.5A1  Memory seats.   Lumbar.   Power mirror.
3  20A1  Driver door unlock.
4  5A1  Not used (spare).
5  20A1  Subwoofer amplifier.
6  10A2  Heated seat relay coil.
7  10A2  Not used (spare).
8  10A2  Not used (spare).
9  10A2  Not used (spare).
10  5A2  Keypad.   Cell phone passport module.   Power decklid module.
11  5A2  Not used (spare).
12  7.5A2  Climate control.   Gear shift.
13  7.5A2  Steering wheel column.   Instrument cluster.   Datalink logic.
14  10A2  Battery electronic control module.
15  10A2  Datalink-gateway module.
16  15A1  Child lock.   Decklid release.
17  5A2  Tracking and blocking.
18  5A2  Ignition.   Push button start stop switch.
19  7.5A2  Passenger airbag disabled indicator.   Transmission range control.
20  7.5A2  Adaptive headlamps.
21  5A2  Humidity and in–car temperature sensor.
22  5A2  Occupant classification sensor.
23  10A1  Delayed Accessory (Power inverter logic, Moonroof logic).
24  20A1  Central lock unlock.
25  30A1  Driver door (window, mirror).
26  30A1  Front passenger door (window, mirror).
27  30A1  Moonroof.
28  20A1  Amplifier.
29  30A1  Rear driver side door (window).
30  30A1  Rear passenger side door (window).
31  15A1  Not used (spare).
32  10A1  GPS.   Voice control.   Display.   Adaptive cruise control.   Radio frequency receiver.
33  20A1  Radio.   Active noise control.
34  30A1  Run-start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
35  5A1  Restraints control module.
36  15A1  Auto-dimming rear view mirror.
37  20A1  All wheel drive.   Heated steering wheel.
38  30A  Not used (spare).

1Micro fuse.

2Dual micro fuse.

CHANGING A FUSE

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
