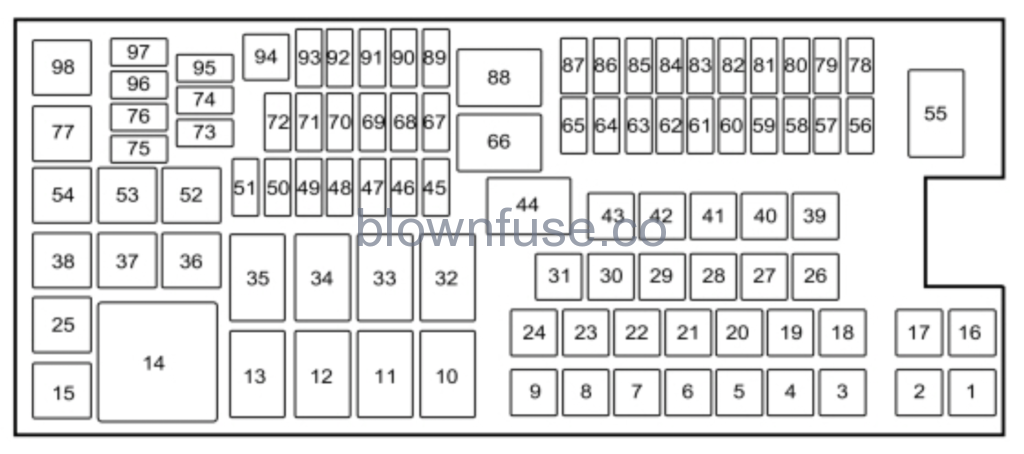

Power Distribution Box
WARNING: Always disconnect the battery before servicing high-current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
The power distribution box is in the engine compartment. It has high-current fuses that protect the vehicle’s main electrical systems from overloads.If you disconnect and reconnect the battery, you will need to reset some features.
Fuse or relay number | Fuse amp rating | Protected components |
---|---|---|
1 | 40A** | Fan relay 2. |
2 | 40A** | Fan relay 1. |
3 | 30A** | Trailer brake control module. |
4 | 30A** | Wipers. Washer pump. |
5 | 50A** | Anti-lock brake system pump. |
6 | 20A ** | Center console power point. |
7 | 30A** | Power liftgate. |
8 | 20A ** | Moonroof. |
9 | 20A** | Second row console power point. |
10 | Relay | Third row power seats relay. |
11 | Relay | Heated rear window relay. |
12 | Relay | Trailer tow battery charge relay. |
13 | Relay | Starter motor relay. |
14 | Relay | Cooling fan number 2 relay. |
15 | Relay | Fuel pump relay. |
16 | – | Not used. |
17 | 30A** | 110V AC power point. |
18 | 40A** | Front blower motor relay. |
19 | 30A** | Starter relay. |
20 | 20A** | Storage bin power point. |
21 | 20A ** | Instrument panel power point / cigar lighter. |
22 | 30A** | Third row seat module. |
23 | 30A** | Driver power seat. Memory module. |
24 | 30A** | Trailer tow battery charge. |
25 | – | Not used. |
26 | 40A** | Rear window defroster. Heated mirrors. |
27 | 20A** | Cargo power point. |
28 | 30A** | Front climate controlled seats. |
29 | 20A** | Front heated seats. |
30 | 20A** | Rear heated seats. |
31 | 25A** | Electric fan relay 3. |
32 | Relay | Auxiliary blower motor relay. |
33 | Relay | Cooling fan #1 relay. |
34 | Relay | Front blower motor relay. |
35 | Relay | Cooling fan (series) relay. |
36 | – | Not used. |
37 | Relay | Trailer tow right-hand stop/turn lamps relay. |
38 | Relay | Trailer tow reverse lamps relay. |
39 | 30A** | Auxiliary blower motor. |
40 | – | Not used. |
41 | – | Not used. |
42 | 30A** | Passenger power seat. |
43 | 20A** | Anti-lock brake system valves. |
44 | Relay | Windshield washer relay. |
45 | 5A* | Rain sensor. |
46 | 5A* | Canister vent solenoid (EcoBoost engines). |
47 | 15A* | Washer pump. |
48 | 10A* | Front park lamps. |
49 | – | Not used. |
50 | 10A* | Heated mirrors. |
51 | 5A* | Powertrain control module — Injector power monitor (non-EcoBoost engines). |
52 | – | Not used. |
53 | Relay | Trailer tow left-hand stop/turn lamps relay. |
54 | – | Not used. |
55 | Relay | Wiper relay. |
56 | 30A* | Fuel injectors. Fuel pump relay. |
57 | 20A* | Left-hand high intensity discharge headlamp. |
58 | 10A* | Alternator sensor. |
59 | 10A* | Brake on/off switch. |
60 | 10A* | Trailer tow back-up lamps. |
61 | – | Not used. |
62 | 10A* | A/C clutch relay. |
63 | 15A* | Trailer tow stop/turn lamps. |
64 | 15A* | Rear wipers. |
65 | – | Not used. |
66 | Relay | Powertrain control module – vehicle power relay. |
67 | 20A* | Vehicle power #2 – oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
68 | 20A* | Vehicle power #4 (ignition coils). |
69 | 20A* | Vehicle power 1 (powertrain control module). |
70 | 15A* | Vehicle power #3 (coil) – A/C clutch relay. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
71 | – | Not used. |
72 | – | Not used. |
73 | – | Not used. |
74 | – | Not used. |
75 | – | Not used. |
76 | – | Not used. |
77 | Relay | Trailer tow park lamps relay. |
78 | 20A* | Right high-intensity discharge headlamp. |
79 | 10A* | Adaptive cruise control module. |
80 | – | Not used. |
81 | – | Not used. |
82 | 15A* | Rear washer. |
83 | – | Not used. |
84 | 20A* | Trailer tow park lamps. |
85 | – | Not used. |
86 | 5A* | Powertrain control module. Keep alive power and relay. Powertrain control module relay. Canister vent solenoid (non-EcoBoost engines). |
87 | 5A* | Run/start relay. |
88 | Relay | Run/start relay. |
89 | 10A* | Anti–lock brake system module. |
90 | 10A* | Powertrain control module run/start. |
91 | 10A* | Adaptive cruise control module. |
92 | 5A* | Front blower relay coil. Power steering module. |
93 | 5A* | Auxiliary blower motor. Rear window defroster relay. Battery charge relay. |
94 | 30A** | Body control module run/start. |
95 | 5A* | Front passenger window switch. |
96 | – | Not used. |
97 | – | Not used. |
98 | Relay | A/C clutch relay. |
*Mini Fuses** Cartridge Fuses

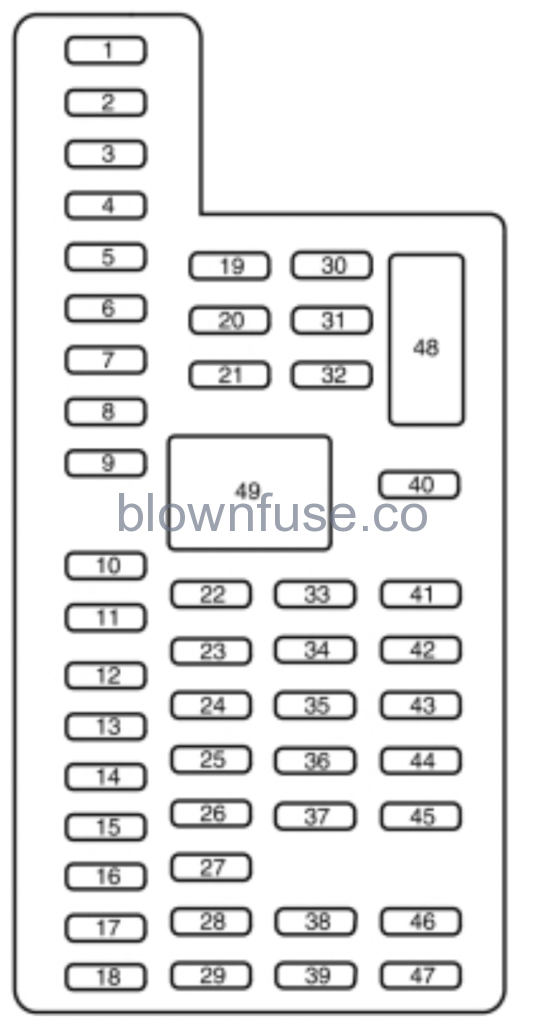

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.
Fuse or relay number | Fuse amp rating | Protected components |
---|---|---|
1 | 30A | Passenger side rear window. |
2 | 15A | Memory seat. Second row seats. |
3 | 30A | Passenger side front window. |
4 | 10A | Demand lamps battery saver relay. |
5 | 20A | Audio amplifier Active noise control module. |
6 | 5A | Not used (spare). |
7 | 7.5A | Driver seat module logic. Left front door zone module. Keypad. |
8 | 10A | Power liftgate. |
9 | 10A | SYNC module. Electronic finish panel. Radio frequency transceiver module. |
10 | 10A | Run accessory relay. Front wiper motor relay. |
11 | 10A | Intelligent access module logic. Heads-up display. |
12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
13 | 15A | Right-hand direction indicators. |
14 | 15A | Left-hand direction indicators. |
15 | 15A | Center high mounted stop lamp. Backup lamp. |
16 | 10A | Right low beam headlamp. |
17 | 10A | Left low beam headlamp. |
18 | 10A | Third row power seats. Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Anti-theft system. |
19 | 20A | Not used (spare). |
20 | 20A | Locks. |
21 | 10A | Not used (spare). |
22 | 20A | Horn relay. |
23 | 15A | Steering wheel control module logic. Instrument cluster. |
24 | 15A | Steering wheel control module. Datalink. |
25 | 15A | Liftgate release. |
26 | 5A | Ignition switch. Push button ignition switch. |
27 | 20A | Intelligent access module power. |
28 | 15A | Not used (spare). |
29 | 20A | Radio. Global positioning system module. |
30 | 15A | Front park lamps. Trailer tow relay for park lamps. Front side markers. |
31 | 5A | Trailer tow brake controller. |
32 | 15A | Smart window motors. Master window and mirror switch. Lock switch illumination. Moonroof. 110V AC power point. Interior rearview mirror. |
33 | 10A | Not used (spare). |
34 | 10A | Reverse park aid module. Rear heated seat module. Blind spot monitor module. Rear video camera. Interior mirror. |
35 | 5A | Climate control humidity sensor. Heads-up display. |
36 | 10A | Heated steering wheel. |
37 | 10A | Refrigerator. |
38 | 10A | Front passenger window switch. |
39 | 15A | High beams. |
40 | 10A | Rear park lamps. License plate lamps. |
41 | 7.5A | Occupant classification sensor. Restraint control module. |
42 | 5A | Not used (spare). |
43 | 10A | Not used (spare). |
44 | 10A | Not used (spare). |
45 | 5A | Not used (spare). |
46 | 10A | Climate control module. |
47 | 15A | Fog lamp relay. Front direction indicators. |
48 | 30A Circuit breaker | Front passenger power window. Rear power windows. |
49 | Relay | Delayed accessory relay. Body control module. |
2016 Ford Flex Owners Manual
Changing a Fuse
Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types
Callout | Fuse Type |
---|---|
A | Micro 2 |
B | Micro 3 |
C | Maxi |
D | Mini |
E | M Case |
F | J Case |
G | J Case Low Profile |
