2015 Ford Fiesta Fuse Box Diagram

FUSE SPECIFICATION CHART

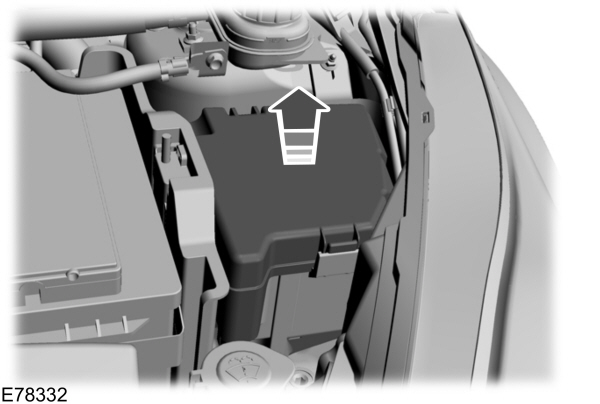

Engine Compartment Fuse Box4-door and 5-door

Fuse	Fuse rating	Circuits protected
1	60 A	Stability assist.
40 A	Anti-lock brake system.1
2	40 A	Transmission control module.
3	40 A	Cooling fan.
60 A	Cooling fan module.3
4	40 A	Blower motor.
5	60 A	Passenger compartment fuse box supply.
6	30 A	Central locking system.
7	60 A	Ignition switch.
8	60 A	Powertrain control module.
9	40 A	Stability assist module.
10	30 A	Engine start inhibitor.
11	30 A	Fuel system.
12	60 A	Power windows.
13	60 A	High-speed cooling fan.2
14	–	Not used.
15	–	Not used.
16	–	Not used.
17	20 A	High beam.
18	15 A	Powertrain control module.
19	20 A	Front fog lamps.
20	15 A	Emissions system.
21	7.5 A	High beam.
22	15 A	Ignition coil.
20 A	Ignition coil.3
23	15 A	Right-hand exterior lamps.
24	10 A	Emissions system.
25	15 A	Left-hand exterior lamps.
26	20 A	Horn.   Battery back-up sounder.   Interior lamps.
27	7.5 A	Engine cold start system module.4
15 A	Water pump.2 Active grill shutter.2
28	15 A	Direction indicators.
29	20 A	Compressed natural gas, fuel control module.1
30	10 A	Air conditioning clutch.
31	–	Not used.
32	7.5 A	Powertrain control module.   Transmission control unit.
33	10 A	Fuel injectors.
7.5 A	Mass air flow sensor.3
34	30 A	Heated exterior mirrors.
35	10 A	Left-hand fog lamp.
36	10 A	Right-hand fog lamp.
37	10 A	Left-hand high beam.
38	10 A	Right-hand high beam.
39	–	Not used.
40	–	Not used.
41	–	Not used.
42	–	Not used.
43	–	Not used.
44	–	Not used.
45	–	Not used.
46	–	Not used.

¹ If equipped.² 1.0L EcoBoost.³ 1.0L and 1.6L EcoBoost.⁴ 1.6L Flex-fuel

Relay	Circuits switched
R1	Compressed natural gas fuel system.1
R2	Not used.
R3	Powertrain control module.
R4	Blower motor.
R5	Cooling fan.1
R6	Air conditioning clutch.
R7	High-speed cooling fan.2
R8	Not used.
R9	Engine start inhibitor.
R10	High beam.
R11	Front fog lamps.
R12	Reversing lamp.3
R13	Fuel pump.
R14	Not used.
R15	Not used.

¹ If equipped.² 1.0L and 1.6L EcoBoost.³ 6-Speed PowerShift Transmission.Passenger Compartment Fuse BoxThis fuse box is located behind the glove box. Open the glove box and empty the contents. Press the sides inwards and swivel the glove box downward.

Fuse	Fuse rating	Circuits protected
1	15 A	Ignition switch.
2	7.5 A	Auto-dimming interior mirror.   Autowipers.   Heater relay control.
3	7.5 A	Instrument cluster.
4	7.5 A	Passenger airbag deactivation indicator.   Passenger sensing system.
5	15 A	On-board diagnostics connector.
6	10 A	Reversing lamps.
7	7.5 A	Instrument panel.   Information and entertainment display.
8	7.5 A	Moonroof.
9	20 A	Remote keyless entry.   Remote keyless starting.
10	15 A	Audio unit.   SYNC module.
11	20 A	Windshield wipers.
12	7.5 A	Climate control.
13	15 A	Rear window wiper.
14	20 A	Remote keyless entry.   Remote keyless starting.
15	15 A	Windshield wipers.
16	5 A	Exterior mirrors.   Power windows.
17	15 A	Heated seats.
18	10 A	Brake lamp.
19	7.5 A	Instrument cluster.
20	10 A	Airbags
21	7.5 A	Electronic power assist steering.   Instrument cluster.   Ignition.   Windshield wipers.   Passive anti-theft system.
22	7.5 A	Transmission control unit.   Powertrain control module.   Anti-lock brake system.   Stability assist.
23	7.5 A	Transmission control unit.
24	7.5 A	Audio unit.
25	7.5 A	Exterior mirrors.
26	7.5 A	Central locking system.
27	–	Not used.
28	–	Not used.
29	–	Not used.
30	–	Not used.
31	30 A	Power windows.
32	20 A	Battery back-up sounder.
33	20 A	Auxiliary power points.
34	30 A	Power windows.
35	20 A	Moonroof.
36	–	Not used.

Relay	Circuits switched
R1	Ignition relay.
R2	Not used.
R3	Not used.
R4	Driver heated seat.
R5	Passenger heated seat.
R6	Remote keyless starting.
R7	Remote keyless starting.
R8	Battery back-up sounder.
R9	Accessory delay.

CHANGING A FUSE

Fuses

WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile

To download the complete user manual, please download the following file:
