2018 Ford F-53 Motorhome Fuse Box Diagram

FUSE SPECIFICATION CHART

F53 Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

Locate the power distribution box in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If the battery has been disconnected and reconnected, you will need to reset some features.   See   Changing the 12V Battery

Fuse or Relay Number  Fuse Rating  Protected Components
1  5A1  Power brake assist module – HydroMax.
2  10A1  Air conditioning compressor clutch.
3  20A1  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
4  5A1  Powertrain control module relay coil.   Powertrain control module keep alive memory.
5  20A1  Powertrain control module power.
6  20A1  Instrument panel dimmer module.   Park lamp feeds.   Trailer tow running lamp relay coil.
7  20A1  Ignition coils.   Radio capacitors.
8  30A1  HydroMax – Anti-lock brake system module.
9  10A1  Powertrain control module.
10  20A1  Daytime running lamps.
11  20A1  Fuel pump relay coil.   Powertrain control module.   Fuel pump diode.
12  25A1  Instrument panel – backup lamp feed.   Trailer tow backup lamps feed.
13  30A2  Trailer tow electric brake controller feed.
14  60A2  Instrument panel battery feed (fuse #15, 21).   Lighting primary fuse.   Power distribution box fuse #19.
15  20A2  Trailer tow park lamps.
16  60A2  Anti-lock brake system module – HydroMax.
40A2  Anti-lock brake system module – Hydroboost.
17  20A2  Horn feed.
18  20A2  Backup lamp relay coil.   A/C clutch coil.   A/C demand switch.
19  20A2  Brake on/off switch.   Multifunction switch.
20  30A2  Powertrain control module relay (Power distribution box fuses # 3, 5, 7, 18).
21  20A2  Fuel injectors.   Fuel pump motor.   Mass air flow sensor.   Powertrain control module.
22  20A2  Cigar lighter feed.   Diagnostic tool connector.
23  40A2  Blower motor feed.
24  50A2  Instrument panel battery feed (fuses #4, 10, 16, 22).
25  40A2  Ignition switch feed (Instrument panel fuses #1, 5, 7, 11, 13, 14, 17, 19, 23, 36; Power distribution box fuses #9, 11).   Fuse holder #2.
26  40A2  Ignition switch feed (Instrument panel fuses #5, 11, 17, 23, 38).
27  30A2  Headlamps.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   High beam headlamps flash to pass.   (Instrument panel fuses #25, 31).
28  30A2  Starter relay feed.   Starter motor solenoid.
29  60A2  Power brake assist motor – HydroMax.   Fuse holder #1.
40A2  Anti-lock brake system module – Hydroboost.
R1  —  A/C clutch relay.
R2  —  Fuel pump relay.
R3  —  Horn relay.
R4  —  Starter relay.
R5  —  Blower motor relay.
R6  —  Powertrain control module relay.
Diode 1  —  Fuel pump diode.
Diode 2  —  Air conditioning clutch diode.

1Mini fuse.2Maxi fuse.

F59 Power Distribution Box:

Fuse or Relay Number  Fuse Rating  Protected Components
F1  10A3  Air conditioning compressor clutch.
F2  30A3  Anti-lock brake system – HydroMax.
F3  5A3  Powertrain control module keep alive memory.   Powertrain control module relay coil.
F4  —  Not used.
F5  20A3  Trailer tow running lamp relay coil.   Park lamp feeds.   Instrument panel dimmer module.
F6  —  Not used.
F7  25A3  Trailer tow backup lamp feed.   Backup lamp feed.
F8  —  Not used.
F9  20A3  Daytime running lamps.
F10  —  Not used.
F11  —  Not used.
F12  —  Not used.
F13  —  Not used.
F14  —  Not used.
F15  5A3  Power brake assist module (HydroMax).
F16  20A3  Powertrain control module power.
F17  20A3  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
F18  20A3  Radio capacitors.   Ignition coils.
F19  10A3  Powertrain control module.
F20  10A3  HydroMax module brake on/off relay feed.
F21  20A3  Powertrain control module.   Fuel pump diode.   Fuel pump relay coil.
F22  10A3  Brake transmission shift interlock.
F23  —  Not used.
F24  —  Not used.
J1  40A4  Blower motor relay feed.
J2  30A4  Headlamps.   High beam headlamps flash to pass.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   Instrument panel fuses #25, 31.
J3  30A4  Vehicle power.   Powertrain control module relay feed.   Power distribution box fuse F16, F17, F18, J22.
J4  20A4  Cigar lighter feed.   Diagnostic tool connector.
J5  —  Not used.
J6  30A4  Starter relay feed.   Starter motor solenoid.
J7  40A4  Anti-lock brake system module (Hydroboost).
60A4  Power brake assist motor (HydroMax).   Power distribution box fuse #F20.
J8  20A4  Trailer tow park lamps.
J9  50A4  Instrument panel fuse #4, 10, 16, 22.
J10  60A4  HydroMax anti-lock brake system module.
40A4  Hydroboost anti-lock brake system module.
J11  20A4  Fuel pump relay feed.   Fuel injectors.   Mass air flow sensor.   Fuel pump motor.   Powertrain control module.
J12  30A4  Trailer tow electronic brake.
J13  40A4  Ignition switch feed (instrument panel fuses #1, 5, 7, 11, 13, 14, 17, 19, 23, 36).   (Power distribution box fuse #F19, F22, F21).
J14  —  Not used.
J15  60A4  Instrument panel battery feed (fuse #15, 21).   Lighting primary fuse.
J16  20A4  Horn.
J17  40A4  Ignition switch feed (instrument panel fuses #5, 11, 17, 23, 38).
J18  20A4  Brake on/off switch.   Multifunction switch.
J19  —  Not used.
J20  —  Not used.
J21  —  Not used.
J22  20A4  Reverse lamp relay coil.   A/C clutch relay coil.   A/C demand switch.
R1  —  Horn relay.
R2  —  Fuel pump relay.
R3  —  Starter relay.
R4  —  Backup lamps relay.
R5  —  Brake on/off signal isolating relay (Hydromax).
R6  —  Trailer tow parking lamps relay.
R7  —  Not used.
R8  —  A/C clutch relay.
R9  —  Not used.
R10  —  Starter relay.
R11  —  Blower motor relay.
R12  —  Daytime running lamp/headlamp relay.
R13  —  Powertrain control module relay.
D1  —  Fuel pump diode.
D2  —  Air conditioning clutch diode.
D3  —  Not used.
C1  —  Not used.

3Mini fuse.4J case fuse.

UPS Power Distribution Box 1

Fuse or Relay Number  Fuse Rating  Protected Components
R1  Relay  Powertrain control module.
R2  Relay  Daytime running lamps.
R3  Relay  Starter motor.
R4  Relay  Blower motor.
R5  Relay  Horn.
R6  Relay  Fuel pump.
R7  Relay  Starter ground.
R8  Relay  Trailer tow parking lamps.
R9  Relay  Backup lamps.
R10  Relay  Hydromax brake on/off relay.
R11  Relay  Not used.
R12  Relay  Not used.
M1-1  10A  Hydromax brake on/off relay.
M1-2  10A  Brake shift Interlock (Column shift).
M1-3  5A  Power brake assist module (Hydromax).
M1-4  10A  Powertrain control module.

UPS Power Distribution Box 2

Fuse or Relay Number  Fuse Rating  Protected Components
M1  25A5  Backup lamp feed.   Trailer tow backup lamp feed.
M2  20A5  Daytime running lamps.
M3  30A5  4–channel anti-lock brake system module (Hydromax).
M4  20A5  Powertrain control module run/start.   Fuel pump relay coil.   Fuel pump diode.
M5  10A5  Brake lamps.
M6  20A5  Radio capacitors.   Ignition coils.
M7  20A5  Backup lamp relay coil.   Air conditioning clutch coil.   Air conditioning demand switch.
M8  20A5  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
M9  20A5  Powertrain control module power.
M10  5A5  Brake shift Interlock
M11  5A5  Powertrain control module relay keep alive power.   Powertrain control module relay coil.
M12  20A5  Parking lamps feed.
D1  Diode  Not used.
D2  Diode  Fuel pump.
D3  Diode  Air conditioning clutch.
R2-1  —  Not used.
J1  30A6  Powertrain control module relay feed (power distribution box fuse M6, M7, M8, M9).
J2  20A6  Fuel injectors.   Fuel pump motor.   Mass airflow sensor.   Powertrain control module.
J3  20A6  Cigar lighter power point.   Diagnostic connector.
J4  40A6  Blower motor.
J5  30A6  Headlamps.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   High beam headlamps flash to pass.   (Instrument panel fuses #25, 31).
J6  40A6  Ignition switch feeds (instrument panel fuses #F26).
J7  40A6  Instrument panel fuses #F24, F22, F20, F26, F21, F8, F6, F4, F2.   Power distribution box fuses M4, M1-4.
J8  50A6  Instrument panel fuses F11, F13, F15, F17.
J9  30A6  Starter relay feed.   Starter motor solenoid.
J10  60A6  Power distribution box fuse M1-1.   Power brake assist motor (HydroMax).
J11  30A6  Trailer tow electronic brake.
J12  60A6  Lighting primary.   Power distribution box fuse M1-2.   Instrument panel fuses #F19, F5, F3.
J13  20A6  Brake on/off.   Hazard.
J14  20A6  Horn.
J15  60A6  HydroMax anti-lock brake system module.
J16  20A6  Trailer tow parking lamps.

5Mini fuse.6J case fuse.

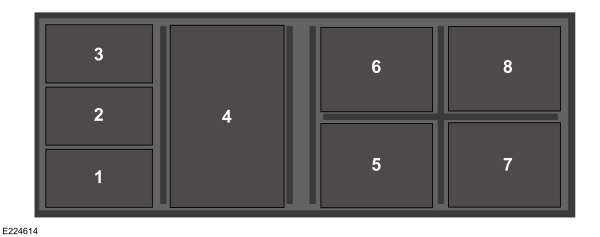

Diode and Relay Module

Locate the module box with the power distribution box in from of the radiator.

Relay Number  Protected Components
1  Not used.
2  Not used.
3  Not used.
4  Daytime running lamps power relay.
5  HydroMax – brake on/off signal isolating relay.
6  Reverse lamps relay.
7  Starter ground relay.
8  Trailer tow parking lamps relay.

Fuse Holder ModuleThe fuse holder is next to the diode and relay module.

Fuse Number  Fuse Rating  Protected Components
1  10A  Break on/off relay feed (HydroMax module).
2  10A  Brake transmission shift interlock.

F53 Passenger Compartment Fuse PanelLocate this fuse panel below and to the left of the steering wheel near the brake pedal. Remove the panel cover to access the fuses.To remove a fuse, use the fuse panel cover’s fuse puller tool.

Fuse or Relay Number  Fuse Rating  Protected Components
1  20A  Multi function switch.
2  —  Not used.
3  —  Not used.
4  10A  Instrument cluster.
5  10A  Body builder accessory feed (accessory and run).
6  —  Not used.
7  15A  Blower motor relay coil.
8  10A  Brake lamps feed.   Trailer brake control module
9  —  Not used.
10  10A  Instrument cluster memory.
11  30A  Wiper/washer module.   Wiper feed.
12  —  Not used.
13  10A  Anti-lock brake system module – HydroMax.
14  10A  Anti-lock brake system module – Hydroboost.   Instrument cluster run/start.
15  15A  Left-hand direction indicator feed.
16  20A  Body builder battery (+12V) feed.
17  5A  Body builder radio feed.
18  —  Not used.
19  5A  Daytime running lamps relays.
20  —  Not used.
21  15A  Right-hand direction indicator feed.
22  20A  Trailer tow direction indicators.
23  10A  Cluster run/accessory.
24  —  Not used.
25  10A  Body builder right-hand low beam headlamp feed.
26  —  Not used.
27  —  Not used.
28  —  Not used.
29  —  Not used.
30  —  Not used.
31  10A  Body builder left-hand low beam headlamp feed.
32  —  Not used.
33  10A  Body builder reverse lamp power.
34  10A  Body builder reverse gear.   Trailer tow reverse lamps.
35  20A  Body builder high beam feed.   High beam indicator.
36  10A  Transmission control switch.
37  —  Not used.
38  10A  Body builder off/run.
39  —  Not used.
40  —  Not used.
41  10A  Instrument cluster lighting/switch illumination.
42  —  Not used.
43  —  Not used.
44  —  Not used.
Relay 1  —  Trailer tow right-hand direction indicator.
Relay 2  —  Trailer tow left-hand direction indicator.
Relay 3  —  Right-hand direction indicator.
Relay 4  —  Left-hand direction indicator.
Relay 5  —  Not used.
Relay 6  —  Daytime running lamps.   Parking brake.
Relay 7  —  Daytime running lamps on/off.
Diode 1  —  Not used.
Diode 2  —  Not used.
F1  —  Not used.
F2  —  Not used.
F3  —  Not used.
F4  —  Not used.
F5  —  Not used.
F6  —  Not used.
F7  —  Not used.
F8  —  Not used.
F9  —  Not used.
F10  —  Not used.
F11  —  Not used.
F12  —  Not used.

F59 and UPS Passenger Compartment Fuse Panel

Fuse or Relay Number  Fuse Rating  Protected Components
F1  —  Not used.
F2  20A  Right/left rear direction indicator.   Right/left direction indicator relay coil.   Instrument cluster right/direction indicator.
F3  15A  Left turn signal.   Hazard lamps.
F4  15A  Blower motor relay coil.
F5  15A  Right front/rear direction indicator.   Right front/rear hazard lamp.
F6  10A  Anti-lock brake system module (HydroMax).
F7  10A  Right low beam headlamp.
F8  5A  Daytime running lamps relays.
F9  10A  Left low beam headlamp.
F10  10A  Transmission control switch.
F11  10A  Cluster battery (+12V) #1.
F12  —  Not used.
F13  10A  Cluster battery (+12V) #2.
F14  10A  Switch illumination.   Instrument cluster lighting.
F15  20A  Body builder battery (+12V) feed.
F16  —  Not used.
F17  20A  Trailer tow direction indicators.   Trailer tow stop lamps.   Trailer tow hazard lamps.
F18  10A  Body builder off/run.
F19  10A  Trailer brake control module Brake on/off signal.   Body builder brake lamps.   Left/right brake lamps.
F20  10A  Body builder run/accessory feed.
F21  10A  Anti-lock brake system module.   Instrument cluster.
F22  30A  Wiper/washer module.   Wiper feed.
F23  10A  Reverse lamps.
F24  5A  Body builder radio feed.
F25  10A  Trailer tow reverse lamps.
F26  10A  Cluster run/accessory.
F27  20A  High beam indicator.
R1  Micro relay  Daytime running lamps.   Parking brake.
R2  Micro relay  Daytime running lamps on/off.
R3  Micro relay  Right-hand direction indicator.
R4  Micro relay  Trailer tow right-hand direction indicator.
R5  Micro relay  Left-hand direction indicator.
R6  Micro relay  Trailer tow left-hand direction indicator.
R7  —  Not used.
R8  —  Not used.
R9  —  Not used.
D1  —  Not used.
D2  —  Not used.
D3  —  Not used.

CHANGING A FUSE

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

Fuse Types:

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile

To download the complete user manual, please download the following file:

https://www.fordservicecontent.com/Ford_Content/vdirsnet/OwnerManual/Home/Index?Variantid=4635&languageCode=EN&countryCode=USA&marketCode=US&bookcode=O37568&VIN=&userMarket=usa&div=f

Leave a Comment
