2016 Ford F-53 Motorhome Fuse Diagram

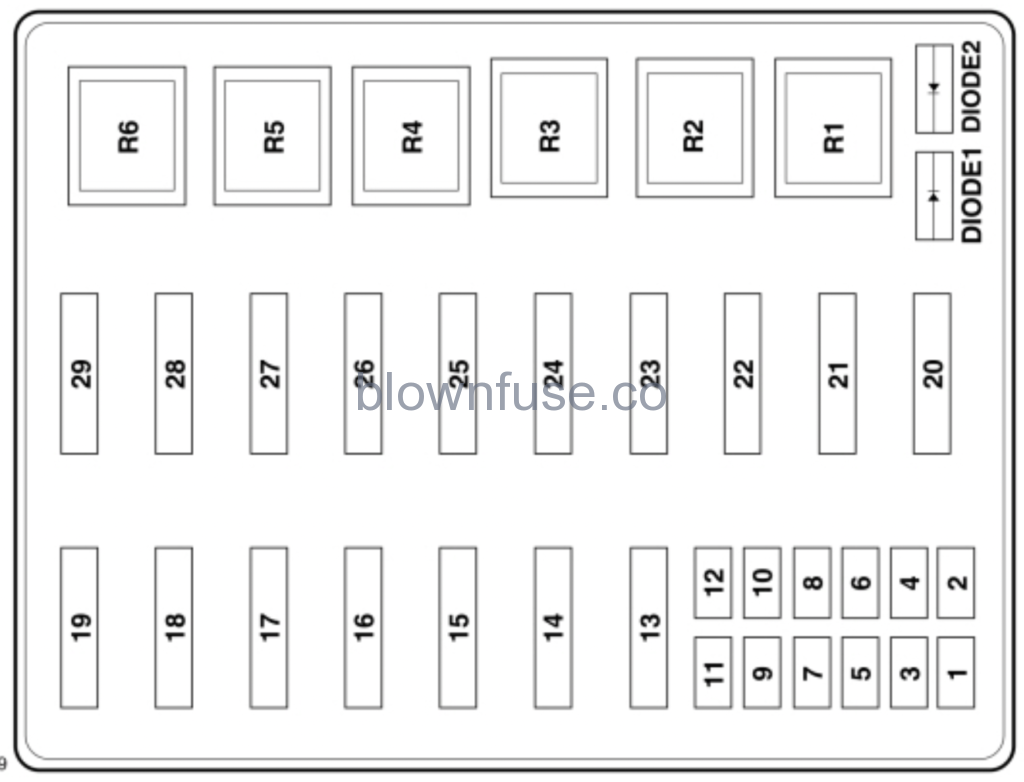

F53 Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

Locate the power distribution box in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If the battery has been disconnected and reconnected, you will need to reset some features.

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
1  5A*  Power brake assist module – Hydromax.
2  10A*  Air conditioning compressor clutch.
3  20A*  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
4  5A*  Powertrain control module relay coil.   Powertrain control module keep alive memory.
5  20A*  Powertrain control module power.
6  20A*  Instrument panel dimmer module.   Park lamp feeds.   Trailer tow running lamp relay coil.
7  20A*  Ignition coils.   Radio capacitors.
8  30A*  Hydromax – Anti-lock brake system module.
9  10A*  Powertrain control module.
10  20A*  Daytime running lamps.
11  20A*  Fuel pump relay coil.   Powertrain control module.   Fuel pump diode.
12  25A*  Instrument panel – backup lamp feed.   Trailer tow backup lamps feed.
13  30A**  Trailer tow electric brake controller feed.
14  60A**  Instrument panel battery feed (fuse #15, 21).   Lighting primary fuse.   Power distribution box fuse #19.
15  20A**  Trailer tow park lamps.
16  60A**  Anti-lock brake system module – Hydromax.
40A**  Anti-lock brake system module – Hydroboost.
17  20A**  Horn feed.
18  20A**  Backup lamp relay coil.   A/C clutch coil.   A/C demand switch.
19  20A**  Brake on/off switch.   Multifunction switch.
20  30A**  Powertrain control module relay (Power distribution box fuses # 3, 5, 7, 18).
21  20A**  Fuel injectors.   Fuel pump motor.   Mass air flow sensor.   Powertrain control module.
22  20A**  Cigar lighter feed.   Diagnostic tool connector.
23  40A**  Blower motor feed.
24  50A**  Instrument panel battery feed (fuses #4, 10, 16, 22).
25  40A**  Ignition switch feed (Instrument panel fuses #1, 5, 7, 11, 13, 14, 17, 19, 23, 36; Power distribution box fuses #9, 11).   Fuse holder #2.
26  40A**  Ignition switch feed (Instrument panel fuses #5, 11, 17, 23, 38).
27  30A**  Headlamps.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   High beam headlamps flash to pass.   (Instrument panel fuses #25, 31).
28  30A**  Starter relay feed.   Starter motor solenoid.
29  60A**  Power brake assist motor – Hydromax.   Fuse holder #1.
40A**  Anti-lock brake system module – Hydroboost.
R1  —  Air conditioning clutch relay.
R2  —  Fuel pump relay.
R3  —  Horn relay.
R4  —  Starter relay.
R5  —  Blower motor relay.
R6  —  Powertrain control module relay.
Diode 1  —  Fuel pump diode.
Diode 2  —  Air conditioning clutch diode.

*Mini fuses.**Maxi fuses.

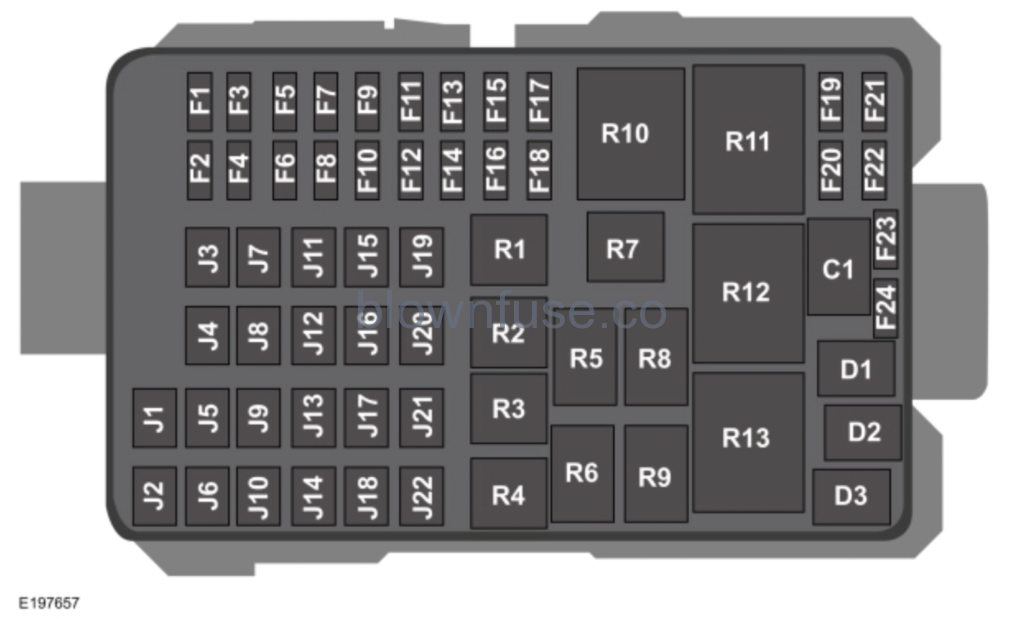

F59 Power Distribution Box

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
F1  10A*  Air conditioning compressor clutch.
F2  30A*  Anti-lock brake system – Hydromax.
F3  5A*  Powertrain control module keep alive memory.   Powertrain control module relay coil.
F4  —  Not used.
F5  20A*  Trailer tow running lamp relay coil.   Park lamp feeds.   Instrument panel dimmer module.
F6  —  Not used.
F7  25A*  Trailer tow backup lamp feed.   Backup lamp feed.
F8  —  Not used.
F9  20A*  Daytime running lamps.
F10  —  Not used.
F11  —  Not used.
F12  —  Not used.
F13  —  Not used.
F14  —  Not used.
F15  5A*  Power brake assist module (Hydromax).
F16  20A*  Powertrain control module power.
F17  20A*  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
F18  20A*  Radio capacitors.   Ignition coils.
F19  10A*  Powertrain control module.
F20  10A*  Hydromax module brake on/off relay feed.
F21  20A*  Powertrain control module.   Fuel pump diode.   Fuel pump relay coil.
F22  10A*  Brake transmission shift interlock.
F23  —  Not used.
F24  —  Not used.
J1  40A**  Blower motor relay feed.
J2  30A**  Headlamps.   High beam headlamps flash to pass.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   Instrument panel fuses #25, 31.
J3  30A**  Vehicle power.   Powertrain control module relay feed.   Power distribution box fuse F16, F17, F18, J22.
J4  20A**  Cigar lighter feed.   Diagnostic tool connector.
J5  —  Not used.
J6  30A**  Starter relay feed.   Starter motor solenoid.
J7  40A**  Anti-lock brake system module (Hydroboost).
60A**  Power brake assist motor (Hydromax).   Power distribution box fuse #F20.
J8  20A**  Trailer tow park lamps.
J9  50A**  Instrument panel fuse #4, 10, 16, 22.
J10  60A**  4-channel anti-lock brake system module.
40A**  3-channel anti-lock brake system module.
J11  20A**  Fuel pump relay feed.   Fuel injectors.   Mass air flow sensor.   Fuel pump motor.   Powertrain control module.
J12  30A**  Trailer tow electronic brake.
J13  40A**  Ignition switch feed (instrument panel fuses #1, 5, 7, 11, 13, 14, 17, 19, 23, 36).   (Power distribution box fuse #F19, F22, F21).
J14  —  Not used.
J15  60A**  Instrument panel battery feed (fuse #15, 21).   Lighting primary fuse.
J16  20A**  Horn.
J17  40A**  Ignition switch feed (instrument panel fuses #5, 11, 17, 23, 38).
J18  20**  Brake on/off switch.   Multifunction switch.
J19  —  Not used.
J20  —  Not used.
J21  —  Not used.
J22  20A**  Reverse lamp relay coil.   A/C clutch relay coil.   A/C demand switch.
R1  —  Horn relay.
R2  —  Fuel pump relay.
R3  —  Starter relay.
R4  —  Backup lamps relay.
R5  —  Brake on/off signal isolating relay (Hydromax).
R6  —  Trailer tow parking lamps relay.
R7  —  Not used.
R8  —  Air conditioning clutch relay.
R9  —  Not used.
R10  —  Starter relay.
R11  —  Blower motor relay.
R12  —  Daytime running lamp/headlamp relay.
R13  —  Powertrain control module relay.
D1  —  Fuel pump diode.
D2  —  Air conditioning clutch diode.
D3  —  Not used.
C1  —  Not used.

*Mini fuses.**J-case fuse.

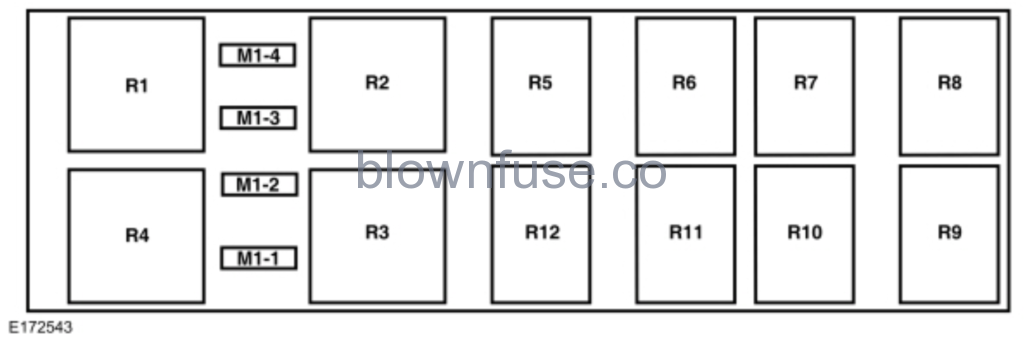

UPS Power Distribution Box 1

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
R1  Relay  Powertrain control module.
R2  Relay  Daytime running lamps.
R3  Relay  Starter motor.
R4  Relay  Blower motor.
R5  Relay  Horn.
R6  Relay  Fuel pump.
R7  Relay  Starter ground.
R8  Relay  Trailer tow parking lamps.
R9  Relay  Backup lamps.
R10  Relay  Hydromax brake on/off relay.
R11  Relay  Not used.
R12  Relay  Air conditioning clutch.
M1-1  10A  Hydromax brake on/off relay.
M1-2  20A  Brake on/off switch.   Multifunction switch.
M1-3  5A  Power brake assist module (Hydromax).
M1-4  10A  Powertrain control module.

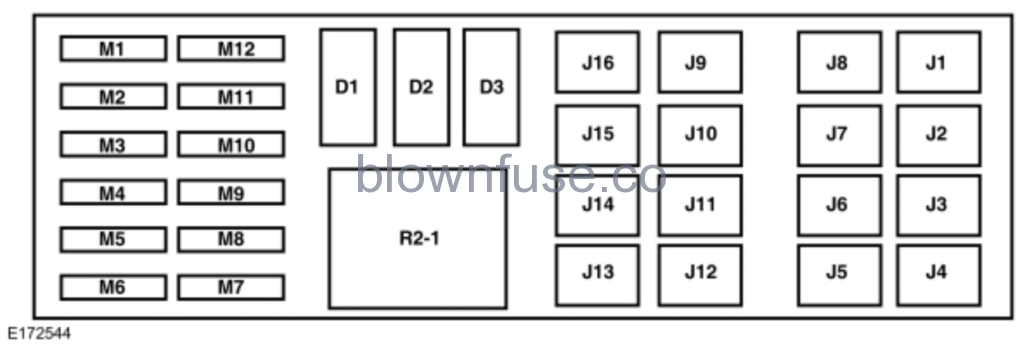

UPS Power Distribution Box 2

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
M1  25A*  Backup lamp feed.   Trailer tow backup lamp feed.
M2  20A*  Daytime running lamps.
M3  30A*  4–channel anti-lock brake system module (Hydromax).
M4  20A*  Powertrain control module run/start.   Fuel pump relay coil.   Fuel pump diode.
M5  —  Not used.
M6  20A*  Radio capacitors.   Ignition coils.
M7  5A*  Backup lamp relay coil.   Air conditioning clutch coil.   Air conditioning demand switch.
M8  20A*  Catalyst monitor sensor.   Engine heated exhaust gas oxygen sensor #11 and #21.   Vapor management valve.
M9  20A*  Powertrain control module power.
M10  10A*  Air conditioning clutch.
M11  5A*  Powertrain control module relay keep alive power.   Powertrain control module relay coil.
M12  20A*  Parking lamps feed.   Trailer tow running lamp relay coil.
D1  Diode  Not used.
D2  Diode  Fuel pump.
D3  Diode  Air conditioning clutch.
R2-1  —  Not used.
J1  30A**  Powertrain control module relay feed (power distribution box fuse M6, M7, M8, M9).
J2  20A**  Fuel injectors.   Fuel pump motor.   Mass airflow sensor.   Powertrain control module.
J3  20A**  Cigar lighter power point.   Diagnostic connector.
J4  40A**  Blower motor.
J5  30A**  Headlamps.   Daytime running lamps on/off relay coil.   Headlamp daytime running lamp relay feed.   High beam headlamps flash to pass.   (Instrument panel fuses #25, 31).
J6  40A**  Ignition switch feeds (instrument panel fuses #F26).
J7  40A**  Instrument panel fuses #F24, F22, F20, F26, F21, F8, F6, F4, F2.   Power distribution box fuses M4, M1-4.
J8  50A**  Instrument panel fuses F11, F13, F15, F17.
J9  30A**  Starter relay feed.   Starter motor solenoid.
J10  60A**  Power distribution box fuse M1-1.   Power brake assist motor (Hydromax).
J11  30A**  Trailer tow electronic brake.
J12  60A**  Lighting primary.   Power distribution box fuse M1-2.   Instrument panel fuses #F19, F5, F3.
J13  —  Not used.
J14  20A**  Horn.
J15  60A**  4–channel anti-lock brake system module.
J16  20A**  Trailer tow parking lamps.

*Mini fuse.**J-case fuse.

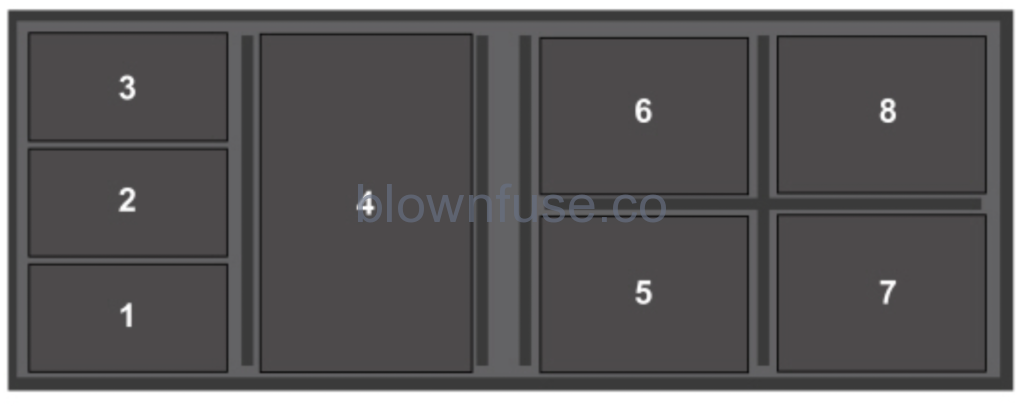

Diode and Relay Module

2016 Ford F-53 Motorhome Fuse Diagram

Locate the module

Relay location  Protected components
1  Not used.
2  Not used.
3  Not used.
4  Daytime running lamps power relay.
5  Hydromax – brake on/off signal isolating relay.
6  Reverse lamps relay.
7  Starter ground relay.
8  Trailer tow parking lamps relay.

Fuse Holder Module

The fuse holder is next to the diode and relay module.

box with the power distribution box in from of the radiator.

Fuse number  Fuse amp rating  Protected components
1  10A  Break on/off relay feed (Hydromax module).
2  10A  Brake transmission shift interlock.

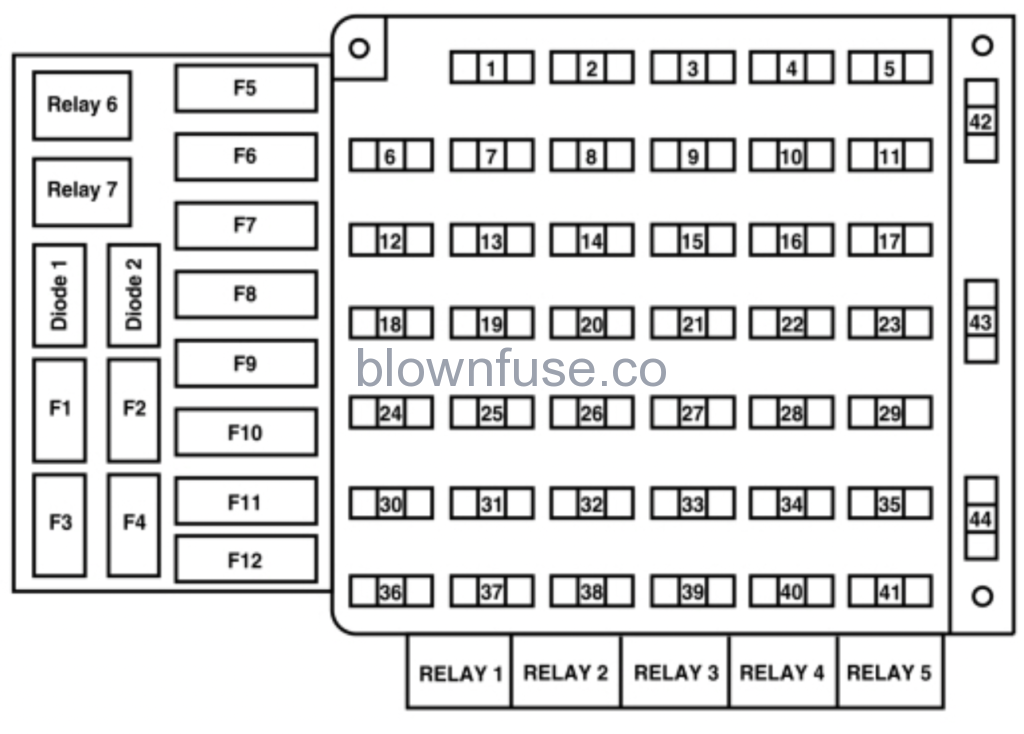

F53/F59 Passenger Compartment Fuse Panel

Locate this fuse panel below and to the left of the steering wheel near the brake pedal. Remove the panel cover to access the fuses.To remove a fuse, use the fuse panel cover’s fuse puller tool.

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
1  20A*  Multi function switch.
2  —  Not used.
3  —  Not used.
4  10A*  Instrument cluster.
5  10A*  Body builder accessory feed (accessory and run).
6  —  Not used.
7  15A*  Blower motor relay coil.
8  10A*  Brake lamps feed.
9  —  Not used.
10  10A*  Instrument cluster memory.
11  30A*  Wiper/washer module.   Wiper feed.
12  —  Not used.
13  10A*  Anti-lock brake system module – Hydromax.
14  10A*  Anti-lock brake system module – Hydroboost.   Instrument cluster run/start.
15  15A*  Left-hand direction indicator feed.
16  20A*  Body builder battery (+12V) feed.
17  5A*  Body builder radio feed.
18  —  Not used.
19  5A*  Daytime running lamps relays.
20  —  Not used.
21  15A*  Right-hand direction indicator feed.
22  20A*  Trailer tow direction indicators.
23  10A*  Cluster run/accessory.
24  —  Not used.
25  10A*  Body builder right-hand low beam headlamp feed.
26  —  Not used.
27  —  Not used.
28  —  Not used.
29  —  Not used.
30  —  Not used.
31  10A*  Body builder left-hand low beam headlamp feed.
32  —  Not used.
33  10A*  Body builder reverse lamp power.
34  10A*  Body builder reverse gear.   Trailer tow reverse lamps.
35  20A*  Body builder high beam feed.   High beam indicator.
36  10A*  Transmission control switch.
37  —  Not used.
38  10A*  Body builder off/run.
39  —  Not used.
40  —  Not used.
41  10A*  Instrument cluster lighting/switch illumination.
42  —  Not used.
43  —  Not used.
44  —  Not used.
Relay 1  —  Trailer tow right-hand direction indicator.
Relay 2  —  Trailer tow left-hand direction indicator.
Relay 3  —  Right-hand direction indicator.
Relay 4  —  Left-hand direction indicator.
Relay 5  —  Not used.
Relay 6  —  Daytime running lamps.   Parking brake.
Relay 7  —  Daytime running lamps on/off.
Diode 1  —  Not used.
Diode 2  —  Not used.
F1  —  Not used.
F2  —  Not used.
F3  —  Not used.
F4  —  Not used.
F5  —  Not used.
F6  —  Not used.
F7  —  Not used.
F8  —  Not used.
F9  —  Not used.
F10  —  Not used.
F11  —  Not used.
F12  —  Not used.

*Mini fuse.

UPS Passenger Compartment Fuse Panel

2016 Ford F-53 Motorhome Fuse Diagram
Fuse or relay number  Fuse amp rating  Protected components
F1  —  Not used.
F2  20A*  Multifunction switch.
F3  15A*  Left turn signal.
F4  15A*  Blower motor relay coil.
F5  15A*  Right turn signal.
F6  10A*  Anti-lock brake system module (Hydromax).
F7  10A*  Right body builder headlamp.
F8  5A*  Daytime running lamps relays.
F9  10A*  Left body builder headlamp.
F10  —  Not used.
F11  10A*  Cluster battery (+12V) #1.
F12  5A*  UPS brake transmission shift interlock.
F13  10A*  Cluster battery (+12V) #2.
F14  10A*  Switch illumination.   Instrument cluster lighting.
F15  20A*  Body builder battery (+12V) feed.
F16  —  Not used.
F17  20A*  Trailer tow direction indicators.
F18  10A*  Body builder off/run.
F19  10A*  Brake lamp feed.
F20  10A*  Body builder run/accessory feed.
F21  10A*  Run/start.   Instrument cluster.
F22  30A*  Wiper/washer module.   Wiper feed.
F23  10A*  Reverse lamps.
F24  5A*  Body builder radio feed.
F25  10A*  Trailer tow reverse lamps.   Body builder reverse gear.
F26  10A*  Cluster run/accessory.
F27  20A*  Body builder high beam feed.   High beam indicator.
R1  —  Daytime running lamps.   Parking brake.
R2  —  Daytime running lamps on/off.
R3  —  Right-hand direction indicator.
R4  —  Trailer tow right-hand direction indicator.
R5  —  Left-hand direction indicator.
R6  —  Trailer tow left-hand direction indicator.
R7  —  Not used.
R8  —  Not used.
R9  —  Not used.
D1  —  Not used.
D2  —  Not used.
D3  —  Not used.

*Mini fuse.

2016 Ford F-53 Motorhome Owners Manual

Changing a Fuse

Fuses

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile

Leave a Comment
