Engine Compartment Fuse Box
WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.Some features need to be reset when you or someone else disconnects and reconnects the battery.
Fuse Number | Fuse Rating | Protected Component |
---|---|---|
1 | 25A1 | Horn. |
2 | 50A2 | Fan 1. |
3 | 30A2 | Front wiper motor. |
4 | — | Not used. |
5 | 30A2 | Starter relay. |
6 | 20A2 | Power point 1. |
8 | 20A2 | Power point 2. |
10 | 5A1 | Rain sensor. |
12 | — | Not used. |
13 | 10A1 | 4×4 module. Heated backlite. Heated mirror relay coil. Heated wiper park relay coil. Transmission isolation relay coil. |
14 | 15A1 | Transmission control module. |
15 | 15A1 | Voltage quality module run/start power. Blindspot information system. Head Up Display. Image processing module B. Front view camera. Rear view camera. Cruise control module. |
16 | 10A1 | Powertrain control module (PCM) run/start feed. |
17 | 10A1 | Anti-lock brake system run / start feed. |
18 | 10A1 | Electronic power assist steering run / start feed. |
19 | — | Not used. |
20 | 40A2 | Front blower. |
21 | 40A2 | Passenger seat motors. |
22 | 20A1 | Not used. |
23 | 10A1 | Alternator A-line. |
24 | 30A2 | Trailer brake control module. |
25 | 50A2 | Body control module power 1. |
26 | 50A2 | Electronic fan 3. |
27 | 40A2 | Driver seat motors. |
28 | 15A1 | Rear heated seats. |
29 | 10A1 | Integrated wheel end solenoid. |
30 | 25A2 | Trailer tow class II-IV battery charge. |
31 | 50A2 | Power folding seat module. |
32 | 10A1 | A/C clutch. |
33 | — | Not used. |
34 | — | Not used. |
35 | 20A1 | Vehicle power 4. |
36 | 10A1 | Vehicle power 3. |
37 | 25A1 | Vehicle power 2. |
38 | 25A1 | Vehicle power 1. |
39 | — | Not used. |
41 | 50A2 | Inverter. |
43 | 20A2 | Trailer Tow Light Module Class II-IV. |
45 | 20A2 | Front/rear washer pump. |
46 | 7.5A1 | Family entertainment system. |
47 | — | Not used. |
48 | — | Not used. |
49 | — | Not used. |
50 | 30A2 | Fuel pump. |
51 | 20A2 | Power point 3. |
52 | 50A2 | Body control module (BCM) voltage quality module (VQM). |
53 | 25A2 | Trailer tow park lamps relay. |
54 | 40A2 | Electronic limited slip differential relay. |
55 | 40A2 | Auxiliary blower. |
56 | 20A2 | Power point 4. |
58 | 5A1 | Not used (spare). |
59 | — | Not used. |
60 | 5A1 | Not used (spare). |
61 | 25A1 | Not used (spare). |
62 | 25A1 | Not used (spare). |
63 | 25A1 | 4×4 module. |
64 | — | Not used. |
65 | — | Not used. |
66 | — | Not used. |
67 | — | Not used. |
69 | — | Not used. |
70 | 40A2 | Anti-lock brake system / parking brake module. |
71 | 25A2 | 4×4 module. |
72 | — | Not used. |
73 | — | Not used. |
74 | 10A1 | Trailer tow backup lamps. |
75 | — | Not used. |
76 | 50A2 | Body control module power 2. |
77 | 30A2 | Climate controlled (Heated/Vented) seat module. |
78 | — | Not used. |
79 | — | Not used. |
80 | 10A1 | Heated wiper park. |
81 | — | Not used. |
82 | — | Not used. |
83 | 15A1 | Transmission control module power. |
84 | — | Not used. |
85 | — | Not used. |
86 | 5A1 | USB smart charger 5. |
87 | 5A1 | USB smart charger 3. |
88 | 10A1 | Multi-contour seats relay. |
89 | 40A2 | Power running boards. |
91 | 30A2 | Power liftgate module. |
93 | 15A1 | Heated mirrors. |
94 | 5A1 | USB smart charger 1. |
95 | 10A1 | USB smart charger 2. |
96 | 30A2 | Rear wiper motor relay. |
97 | 40A2 | Intercooler puller relay fan. |
98 | 15A2 | Transmission oil pump. |
99 | 40A2 | Heated backlite. |
100 | 20A2 | Power point 5. |
101 | 25A2 | Fan 2. |
102 | — | Not used. |
103 | — | Not used. |
104 | — | Not used. |
105 | — | Not used. |
1Micro fuse.2M case use.Note: Spare fuse amperage may vary.
Relay Number | Protected Component |
---|---|
R02 | Powertrain Control Module. |
R05 | Electric fan 2. |

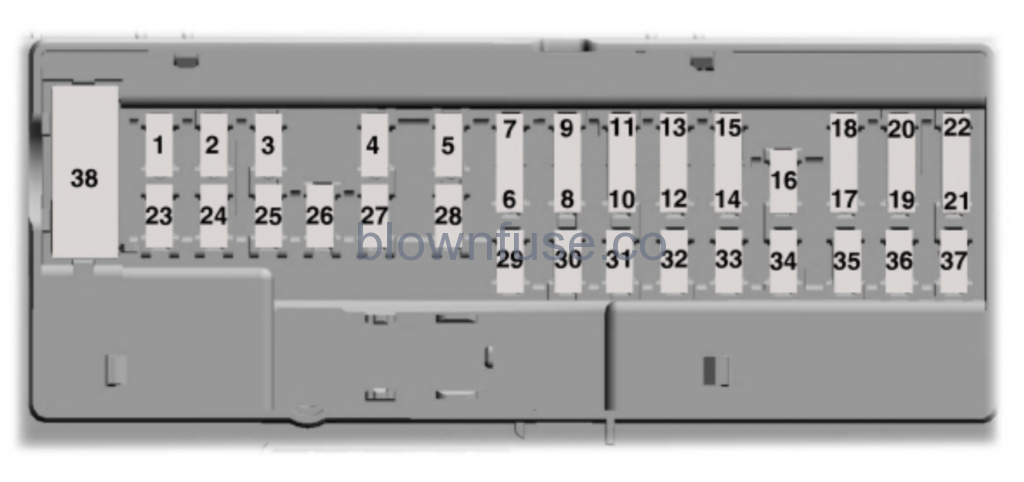

Passenger Compartment Fuse Box
The fuse box is in the passenger compartment under the dashboard. You may need to remove a trim panel to access the box.
Fuse or Relay Number | Fuse Rating | Protected Component |
---|---|---|
1 | — | Not used. |
2 | 7.5A 3 | Driver seat switch. |
3 | 20A3 | Driver door unlock. |
4 | 5A3 | Trailer brake controller. |
5 | 20A3 | Speaker amplifier. |
6 | 10A4 | Not used (spare). |
7 | 10A4 | Not used (spare). |
8 | — | Not used. |
9 | 10A4 | Rear seat entertainment module. Head up display. |
10 | 5A4 | Wireless accessory charger module. Hands free liftgate module. Power liftgate module. |
11 | 5A4 | Keypad. Combined sensor module. |
12 | 7.5A4 | Cluster. Electronic control panel. Smart datalink connector logic. |
13 | 7.5A4 | Gear shift module. Steering column control module. |
14 | 10A4 | Extended power module. Brake switch. |
15 | 10A4 | Smart datalink connector power. |
16 | 15A3 | Liftglass release. |
17 | 5A4 | Telematics control unit – modem. |
18 | 5A4 | Ignition switch. Key inhibit solenoid. Push button start switch. |
19 | 7.5A4 | Transmission control switch. Gearshift module. |
20 | 7.5A4 | Not used (spare). |
21 | 5A4 | Humidity and in–car temperature sensor. |
22 | 5A4 | Electrochromatic mirror. Second row heated seat module. |
23 | 10A3 | Moonroof logic. Inverter. Power window switch. Power mirror switch. |
24 | 20A3 | Central lock unlock |
25 | 30A3 | Left front door zone module. |
26 | 30A3 | Right front door zone module. |
27 | 30A3 | Moonroof. |
28 | 20A3 | Stereo amplifier. |
29 | 30A3 | Left rear door zone module. |
30 | 30A3 | Right rear door zone module. |
31 | 15A3 | Adjustable pedals. |
32 | 10A3 | SYNC Drive mode switch module. 4×4 switch. Radio frequency transceiver module. Rear heating, ventilation and air conditioning control module. |
33 | 20A3 | Audio control module. |
34 | 30A3 | Run/start relay. |
35 | 5A3 | Extended power mode module. |
36 | 15A3 | Image processing module A. Automated park assist module. Continuous control damping module. |
37 | 20A3 | Heated steering wheel. |
38 | 30A Circuit Breaker | Left rear power window. Right rear power window. |
3Micro 2 fuse.4Micro 3 fuse.
Note: Spare fuse amperage may vary.
2019 Ford Expedition Owners Manual
Changing a Fuse
Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. |
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse Types
AMicro 2. BMicro 3. CMaxi. DMini. EM Case. FJ Case. GJ Case Low Profile. HSlotted M Case. |
