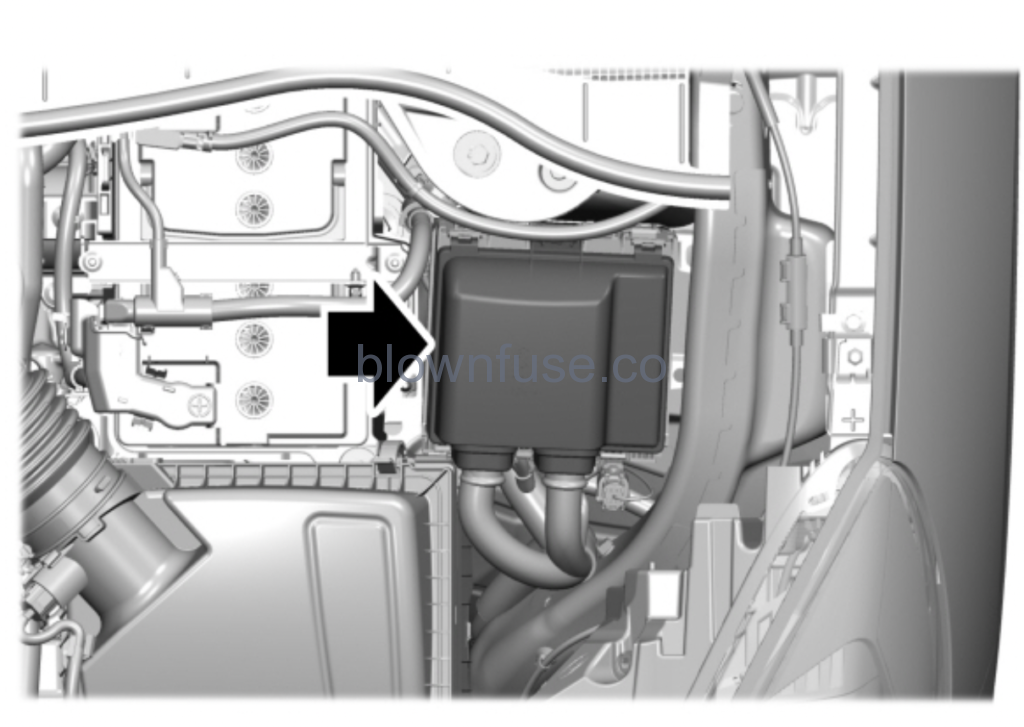

Under Hood Fuse Box Location
Opening Under Hood Fuse Box
1. Pull the latch toward you and remove the top cover.
- Pull the connector lever upward.
- Pull the connector upward to remove it.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.

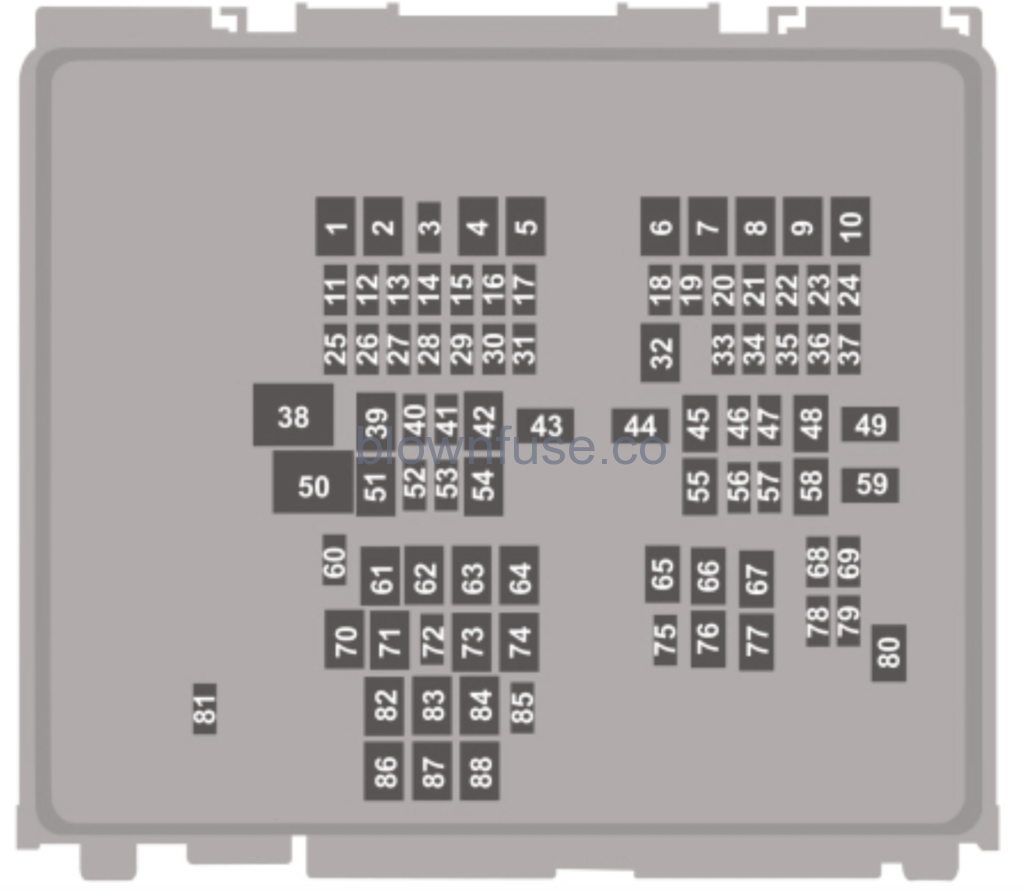

Under Hood Fuse Box Diagram
Fuse Location | Fuse Rating | Protected Component |
---|---|---|
1 | — | Not used. |
2 | — | Not used. |
3 | — | Not used. |
4 | 60 A | Supplemental heater (gas). |
5 | 40 A | Supplemental heater (gas). |
6 | 40 A | Supplemental heater (gas). |
7 | — | Not used. |
8 | — | Not used. |
9 | — | Not used. |
10 | 30 A | Starter motor. |
11 | 15 A | Powertrain control module. |
12 | 15 A | Powertrain control module. |
13 | 15 A | Powertrain control module. |
14 | 15 A | Powertrain control module. |
15 | — | Not used. |
16 | — | Not used. |
17 | — | Not used. |
18 | 10 A | Powertrain control module. |
19 | 10 A | Anti-lock brake system module. |
20 | — | Not used. |
21 | 5 A | Not used (spare). |
22 | 5 A | Battery electronic control module (hybrid electric vehicle). |
23 | 5 A | Charge port light ring (plug-in hybrid electric vehicle). |
24 | 20 A | Amplifier. |
25 | — | Not used. |
26 | — | Not used. |
27 | — | Not used. |
28 | 10 A | Brake on-off switch. |
29 | 5 A | Powertrain control module (hybrid electric vehicle). |
30 | 10 A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
31 | 5 A | Electronic power assist steering. |
32 | 30 A | Body control module. |
33 | 10 A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
34 | 10 A | Not used (spare). |
35 | 15 A | Heated steering wheel. |
36 | 10 A | Powertrain control module (hybrid electric vehicle). |
37 | 20 A | Horn. |
38 | 40 A | Blower motor. |
39 | — | Not used. |
40 | 15 A | Heated wiper park. |
41 | 20 A | Amplifier. |
42 | 30 A | Driver power seat. |
43 | 50 A | Electric water pump (hybrid electric vehicle). |
44 | 40 A | Trailer tow module. |
45 | 30 A | Passenger power seat. |
46 | 20 A | Not used (spare). |
47 | 20 A | Heated seats. |
48 | 40 A | Anti-lock brake control valves. |
49 | 60 A | Anti-lock brake control pump. |
50 | 60 A | Cooling fan. |
51 | 30 A | Moonroof. |
52 | 5 A | DC/DC converter (hybrid electric vehicle). |
53 | 10 A | Battery charge control module (hybrid electric vehicle). |
54 | — | Not used. |
55 | — | Not used. |
56 | — | Not used. |
57 | 10 A | Data link connector. |
58 | 40 A | Auxiliary power distribution box (hybrid electric vehicle). |
59 | 40 A | Body control module. |
60 | 5 A | USB smart charger. |
61 | 20 A | Rear cargo power point. |
62 | — | Not used. |
63 | 30 A | Not used (spare). |
64 | 30 A | Power liftgate. |
65 | — | Not used. |
66 | — | Not used. |
67 | — | Not used. |
68 | 5 A | Mass air flow and intake air temperature sensor (gas). |
69 | 15 A | Port fuel injectors. |
70 | 20 A | Rear console power point. |
71 | 20 A | Media bin power point. |
72 | 20 A | Rear window wiper. |
73 | — | Not used. |
74 | 30 A | Windshield wiper motor. |
75 | 10 A | Heated exterior mirrors. |
76 | 30 A | Heated backlight. |
77 | — | Not used. |
78 | 10 A | Air conditioning clutch. |
79 | 10 A | Not used (spare). |
80 | 20 A | Fuel pump. |
81 | 10 A | Rear window washer pump. |
82 | 40 A | Power inverter. |
83 | — | Not used. |
84 | 40 A | Driveline control module. |
85 | 5 A | Rain sensor. |
86 | — | Not used. |
87 | — | Not used. |
88 | — | Not used. |

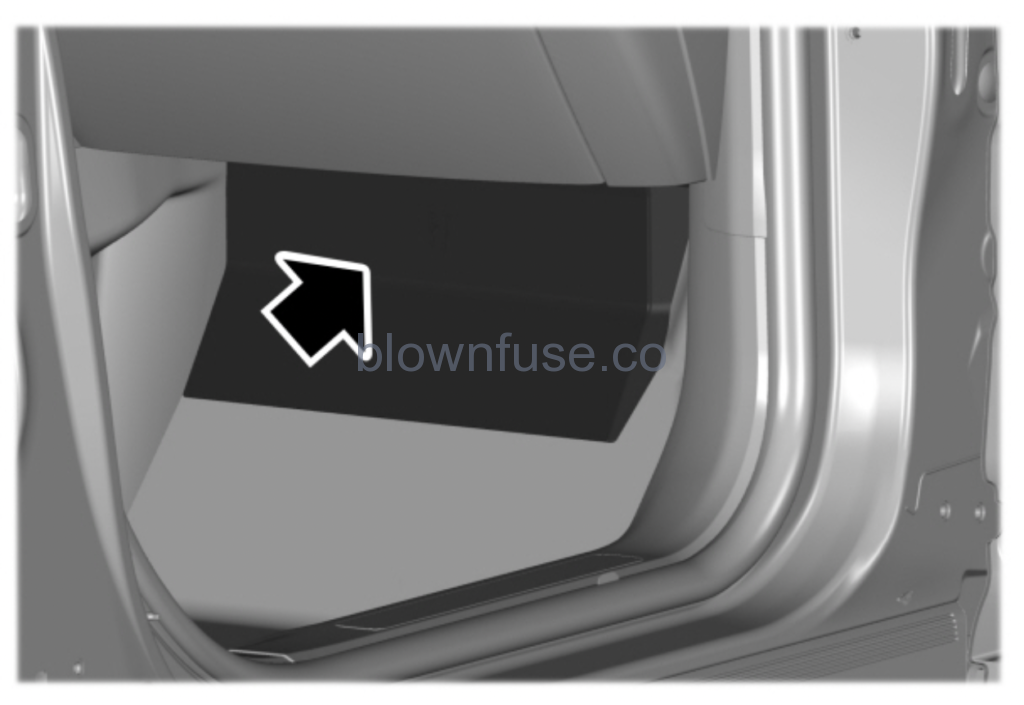

Body Control Module Location (Passenger Fuse Box)

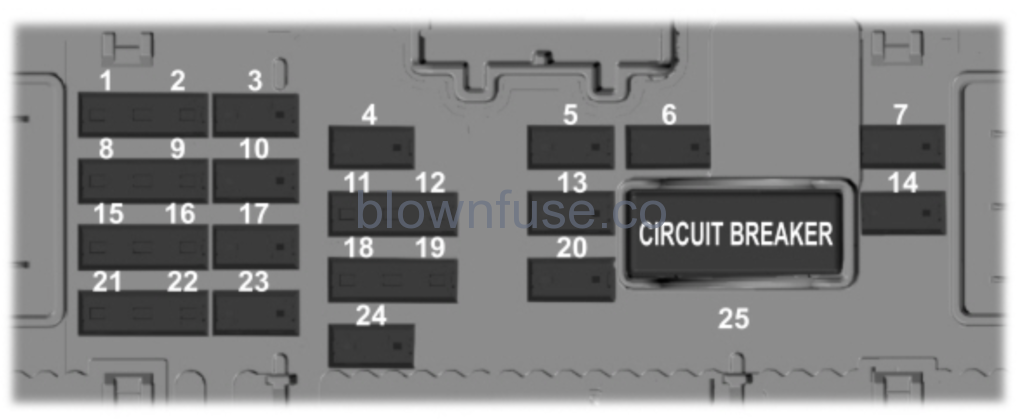

Body Control Module Fuse Box Diagram (Passenger Fuse Box)
Fuse Location | Fuse Rating | Protected Component |
---|---|---|
1 | 5 A | Not used (spare). |
2 | 5 A | Not used (spare). |
3 | 10 A | Not used (spare). |
4 | 10 A | Ignition switch. |
5 | 20 A | Lock. Unlock. |
6 | 10 A | Moonroof. DC inverter. |
7 | 30 A | Passenger door module. |
8 | 5 A | Parking assist control module. |
9 | 5 A | Electrochromatic mirror. Image processing module A. |
10 | 10 A | Extended power module. |
11 | 5 A | Power liftgate. Hands-free liftgate actuation module. Telematics control unit module. |
12 | 5 A | Head up display module. Keyless keypad switch. |
13 | 15 A | Driver door lock. |
14 | 30 A | Driver door module. |
15 | 15 A | Extended power module. |
16 | 15 A | Not used (spare). |
17 | 15 A | SYNC. Receiver transceiver module. Integrated control panel. |
18 | 7.5 A | Wireless accessory charging module. |
19 | 7.5 A | Headlamp switch pack. |
20 | 10 A | Not used (spare). |
21 | 7.5 A | Climate control. E-shifter module. |
22 | 7.5 A | Instrument cluster. Gateway module. Steering column control module. |
23 | 20 A | Audio unit. |
24 | 20 A | Not used (spare). |
25 | 30 A | Power windows. Exterior mirrors. |
