2016 Ford C-MAX/Hybrid Energi Fuse Box Diagram

by
Contents hide
1 FUSE SPECIFICATION CHART
2 CHANGING A FUSE
3 2016 Ford C-MAX/Hybrid Energi Owners Manual

FUSE SPECIFICATION CHART

Pre-Fuse BoxYour vehicle has a pre-fuse box attached to the power distribution box. There is a second pre-fuse box attached to the 12-volt battery terminal in the rear of your vehicle. They contain high-current fuses. If you need to replace one of these fuses, see an authorized dealer.Power Distribution Box

WARNING   WARNING:  Always disconnect the battery before servicing high current fuses.
WARNING   WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.If you disconnect and reconnect the battery, you will need to reset some features.   See   Changing the 12V Battery. Lift the release lever at the rear of the cover to remove it.

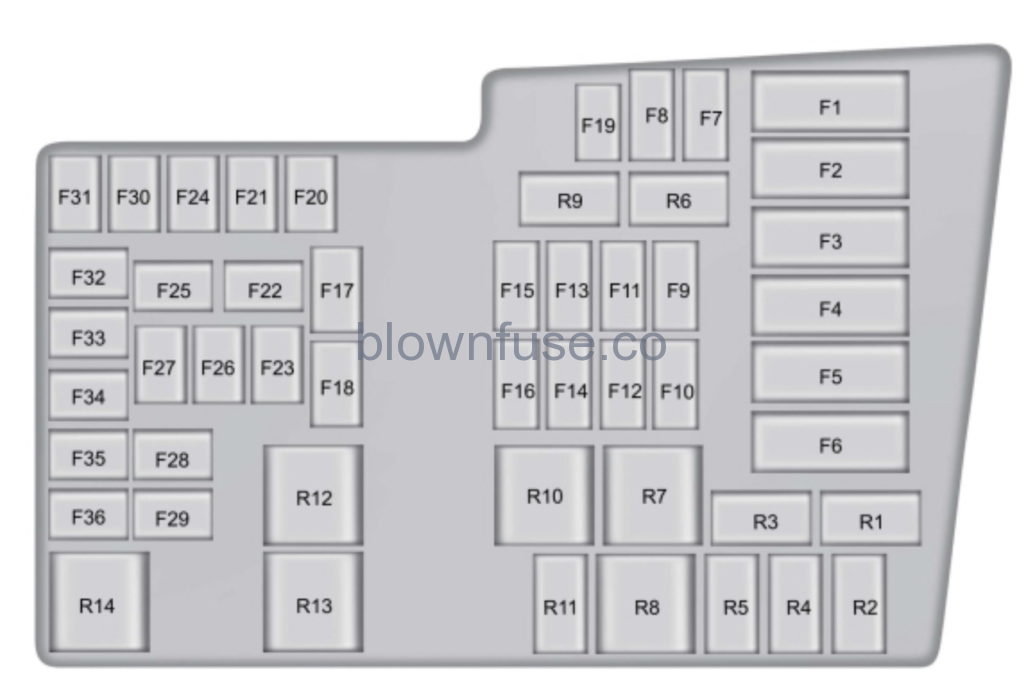

2016 Ford C-MAX/Hybrid Energi engine Fuse Box Diagram
Fuse or relay number  Fuse amp rating  Protected components
F1  50A Midi  Cooling fan module.
F2  50A Midi  Electric water pump.
F3  50A Midi  Body control module supply 1.
F4  50A Midi  Body control module supply 2.
F5  —  Not used.
F6  —  Not used.
F7  40A**  Anti-lock brake system pump.
F8  30A**  Anti-lock brake system valve.
F9  40A**  Vacuum pump.
F10  40A**  Heater blower motor.
F11  30A**  Engine management.
F12  —  Not used.
F13  25A**  Powertrain control module relay.
F14  20A**  Rear wiper.
F15  30A**  Body control module KL30 supply.
F16  20A**  Body control module 15 feed.
F17  20A**  Transmission oil pump (C-MAX Energi).
F18  20A**  Front wiper motor.
F19  5A*  Anti-lock brake system and electronic stability program module.
F20  15A*  Horn.
F21  5A*  Stop light switch.
F22  5A*  Vacuum pump monitoring.
F23  5A*  Engine control module 15.   Powertrain control module 15.   Transmission oil pump 15.
F24  5A*  Relay coils.   Light switch module.
F25  10A*  Motor electronic cooling pump.
F26  5A*  Electronic power assist steering module 15.
F27  5A*  Mass air flow sensor.
F28  15A*  Powertrain control module.
F29  10A*  Electronic air conditioning compressor.   Positive temperature coefficient heater.
F30  10A*  Engine control module.   Powertrain control module.
F31  5A*  Charge port light ring (C-MAX Energi).
F32  20A*  Vehicle power 2.
F33  15A*  Vehicle power 4.
F34  10A*  Injectors.
F35  10A*  Vehicle power 3.
F36  20A*  Vehicle power 1.
R1  Micro relay  Vacuum pump.
R2  Micro relay  Horn.
R3  Micro relay  Hybrid powertrain control.
R4  Micro relay  Front wiper.
R5  Micro relay  Vacuum pump.
R6  Micro relay  Front and rear wiper high-low.
R7  —  Not used.
R8  Power relay  Ignition feed.
R9  —  Not used.
R10  —  Not used.
R11  —  Not used.
R12  Power relay  Cooling fan.
R13  Mini relay  Heater blower.
R14  Mini relay  Engine control relay.

*Mini fuses **Cartridge fusesPassenger Compartment Fuse PanelThe fuse panel is located on the right-hand side below the glove box. You may need to remove a trim panel to access it.

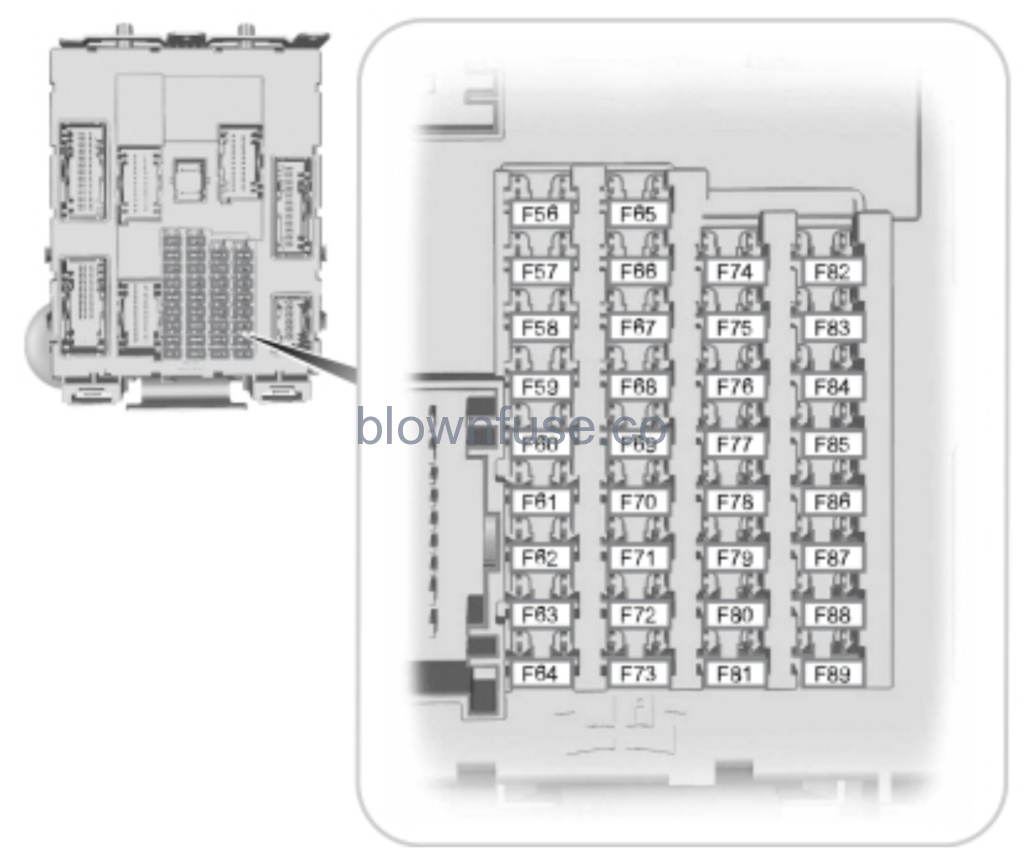

2016 Ford C-MAX/Hybrid Energi passenger Fuse Box Diagram
Fuse or relay number  Fuse amp rating  Protected components
F56  20A  Fuel pump supply.
F57  —  Not used.
F58  5A  Not used (spare).
F59  5A  Passive anti-theft system.
F60  10A  Interior light.   Driver door switch pack.   Glove box illumination.   Overhead console switch bank.
F61  20A  Cigar lighter.   Second row power point.
F62  5A  Autowiper module.   Autodimming rear view mirror.
F63  10A  Not used (spare).
F64  —  Not used.
F65  10A  Liftgate release.
F66  20A  Driver door unlock supply.
F67  7.5A  Cell phone passport (C-MAX Energi).   Multi-function display.   GPS module.   Sync.
F68  15A  Not used (spare).
F69  5A  Instrument cluster.
F70  20A  Central lock and unlock supply.
F71  7.5A  Climate control module.
F72  7.5A  Steering wheel module.
F73  7.5A  Data link connector.   OBD II supply.
F74  15A  Headlamp supply.
F75  15A  Fog lamp supply.
F76  10A  Reversing lamp supply.
F77  20A  Washer pump.
F78  5A  Ignition switch, Start button.
F79  15A  Radio.   Hazard light switch.
F80  20A  Not used (spare).
F81  5A  Power sun shade.   Remote receiver antenna.
F82  20A  Washer pump ground.
F83  20A  Central locking ground.
F84  20A  Drive door unlock ground.
F85  7.5A  Electronic 15 feed.
F86  10A  Restraints control module.   Passenger air bag deactivation indicator.
F87  15A  Not used (spare).
F88  25A  Not used (spare).
F89  —  Not used.

Luggage Compartment Fuse PanelThe fuse panel is located in the luggage compartment behind the left side wheel well. Remove the fuse panel cover to gain access to the fuses.Missing Image

Fuse or relay number  Fuse amp rating  Protected components
F1  5A  Hands-free liftgate entry module.
F2  10A  Keyless vehicle module.
F3  5A  Keyless vehicle door handles.
F4  25A  Door control unit front left.
F5  25A  Door control unit front right.
F6  25A  Door control unit rear left.
F7  25A  Door control unit rear right.
F8  —  Not used.
F9  25A  Driver seat motor.
F10  25A  Heated rear window.
F11  5A  Ignition relay.
F12  15A  Battery electronics control module.
F13  —  Not used.
F14  10A  Charger (C-MAX Energi).
F15  —  Not used.
F16  —  Not used.
F17  10A  Battery electronics control module.
F18  15A  Battery electronics control module — fan.
F19  15A  Charger fan (C-MAX Energi).
F20  —  Not used.
F21  15A  Smart datalink connector.
F22  10A  Active noise cancellation.
F23  —  Not used.
F24  30A  DC/AC power converter.
F25  25A  Power liftgate.
F26  40A  AC/DC charger (C-MAX Energi).
F27  20A  Luggage compartment outlet.
F28  —  Not used.
F29  —  Not used.
F30  5A  Parking aid module.
F31  5A  Rear view camera.
F32  5A  DC/AC power converter.
F33  —  Not used.
F34  20A  Driver seat heater.
F35  20A  Passenger seat heater.
F36  —  Not used.
F37  20A  Power sun shade.
F38  —  Not used.
F39  —  Not used.
F40  —  Not used.
F41  —  Not used.
F42  —  Not used.
F43  —  Not used.
F44  —  Not used.
F45  5A  Humidity sensor.
F46  10A  Fuel system.
R1  Power relay  Rear 15 relay.
R2  Mini relay  Heated rear window.
R3  Micro relay  Fuel door (C-MAX Energi).
R4  —  Not used.
R5  —  Not used.
R6  Micro relay  Rear wiper.

CHANGING A FUSE

WARNING   WARNING:  Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Missing ImageIf electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.Fuse TypesMissing Image

Callout  Fuse Type
A  Micro 2
B  Micro 3
C  Maxi
D  Mini
E  M Case
F  J Case
G  J Case Low Profile
